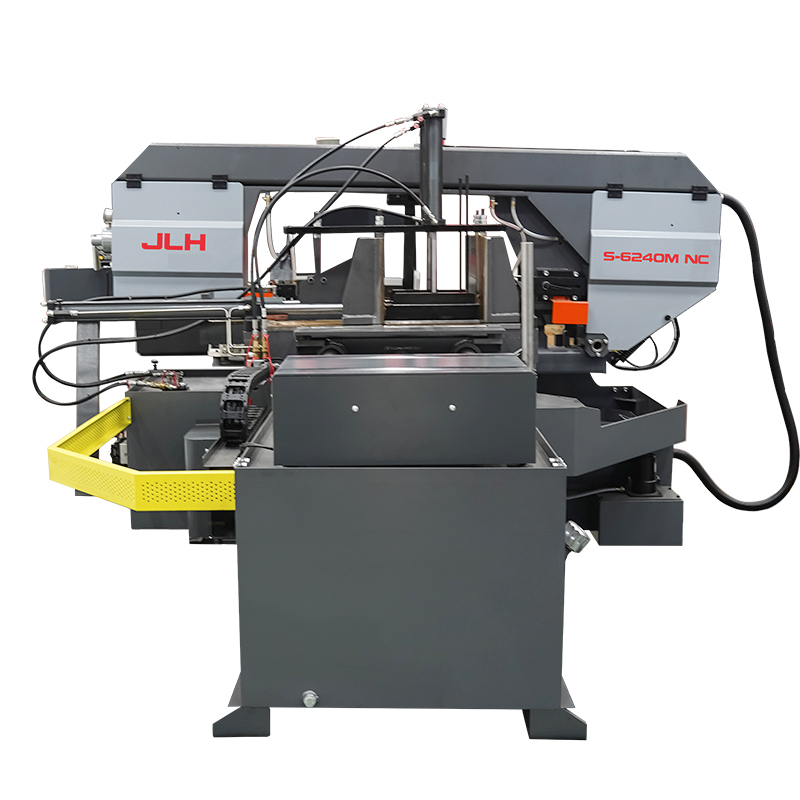

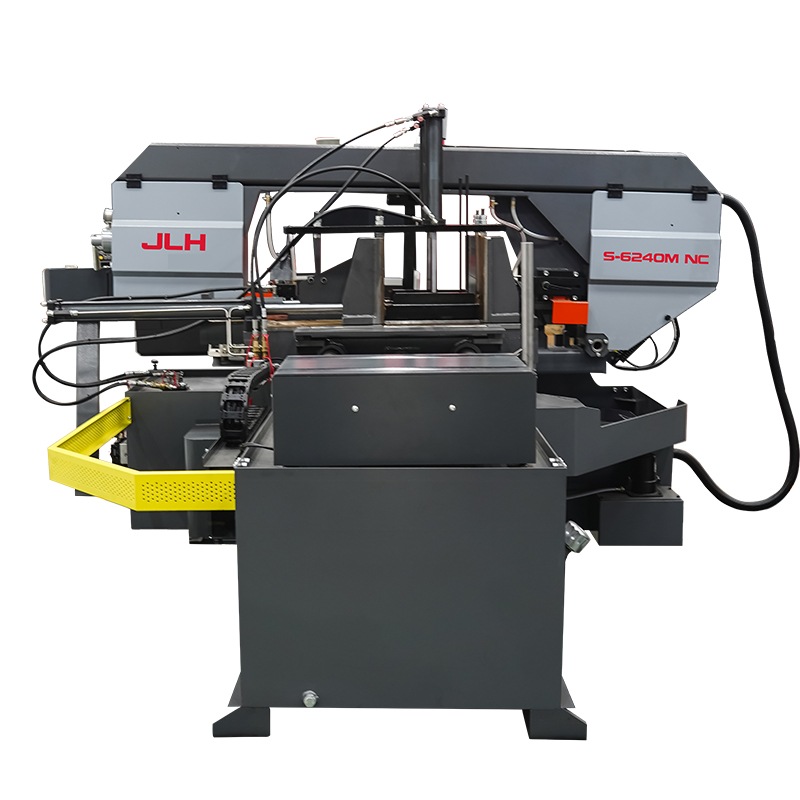

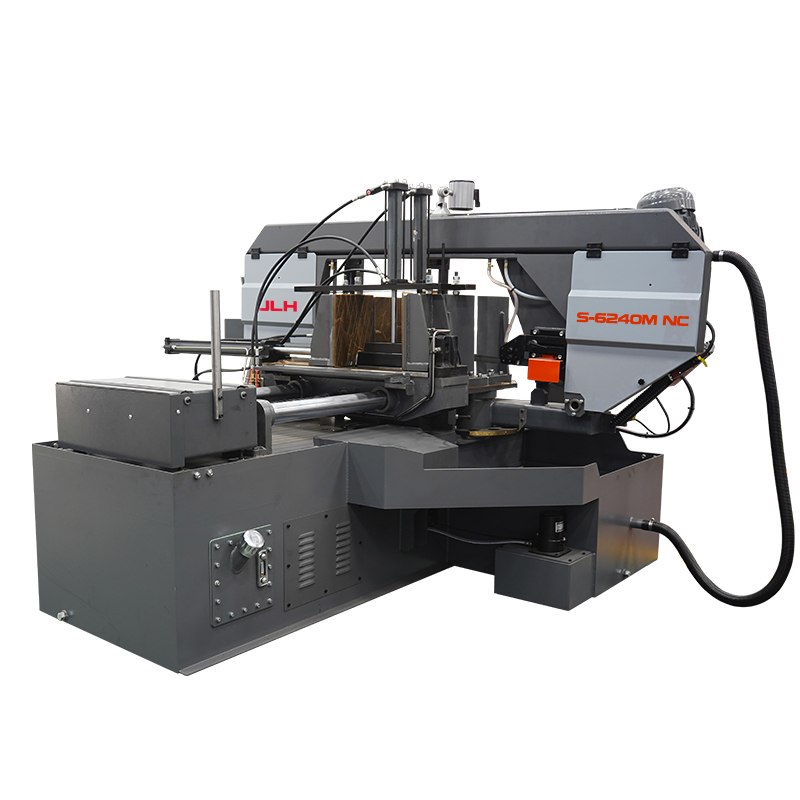

S-6240M NC Band Saw

Cutting range

Cutting range 90° round

Ø420mm

Ø16.5in

Cutting range 90° flat (W x H)

610*420mm

24*16.5in

Cutting range 45° round

Ø400mm

Ø15.7in

Cutting range 45° flat (W x H)

400*400mm

15.7*15.7in

Cutting range 60° round

Ø280mm

Ø11in

Cutting range 60° flat (W x H)

280*280mm

11*11in

Smallest size to be cut

10*10mm

0.4*0.4in

Clamping range

0-610mm

0-24in

Shortest length of cut-off piece

20mm

0.8in

Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface

250mm

9.88in

Shortest remnant length individual cut

50mm

2in

Dimensions and weight

Length

3000mm

118.1in

Width incl. chip conveyor

3060mm

120.5in

Height

1700mm

66.9in

Material support height

905mm

35.6in

Total weight

≈1600kg

≈3527lb

Performance characteristics

Total connected load

5kW

6.6hp

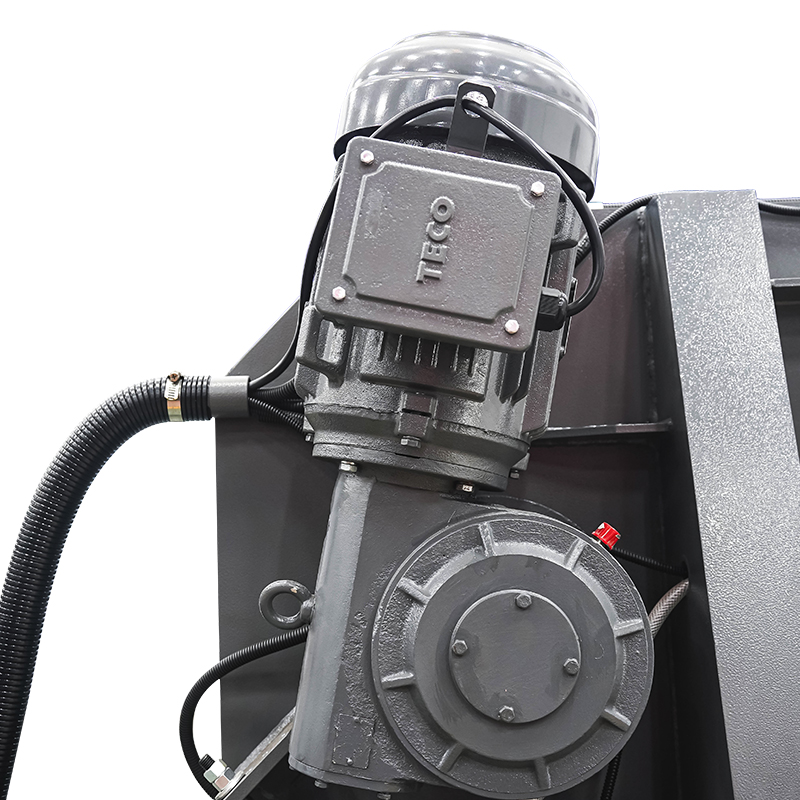

Power of saw motor

3kW

4hp

Hydraulic motor

1.5kW

2hp

Cutting speed infinitely variable with

20-80m/min

65.6-262.4ft/min

Saw feed speed

1 - 300 mm/min

0.04-11.8in/min

Automatic material feed length, single stroke

500mm

19.69in

Automatic material feed length, multiple stroke

9999mm

393.66in

Dimensions of saw blade

5200*34*1.1mm

204.7 * 1.3* 0.04in

Exterior Protection Sheet Metal

CE standard safety protection

●

DOWNFEED SYSTEM

Double valve feed control

○

Single valve feed control

●

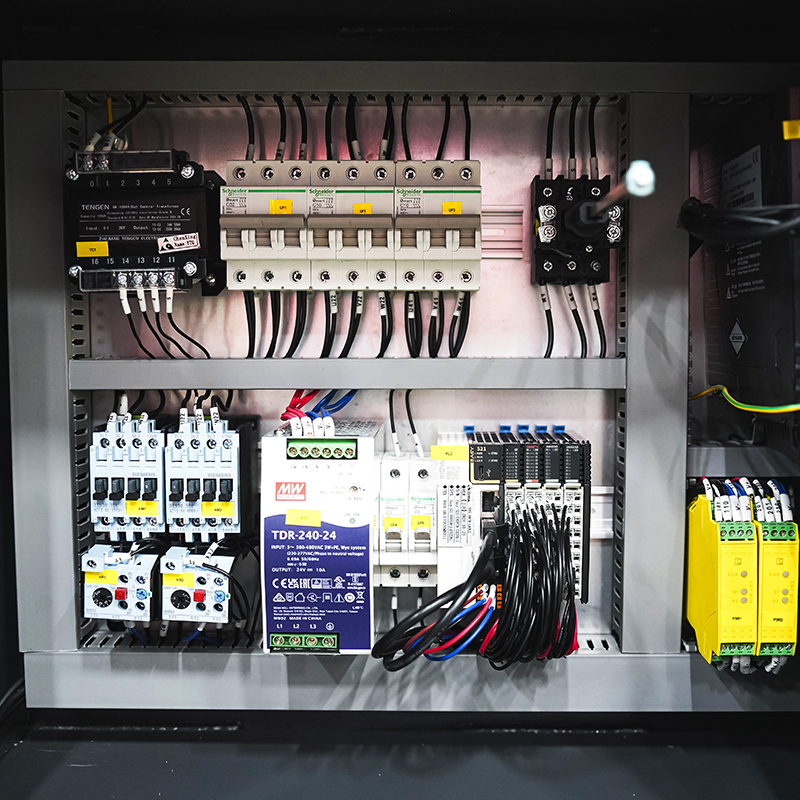

ELECTRICS

CE Electrical Safety

●

UL Electrical Safety

○

LED working light

●

Laser line projection

○

Blade breakage detector

●

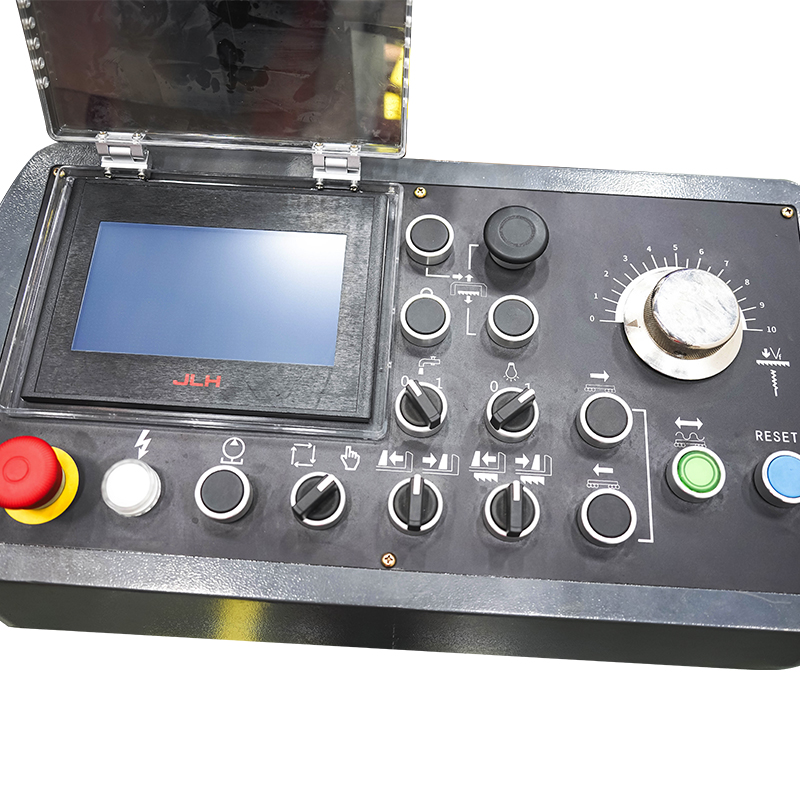

HMI+Buttons

●

Inverter

●

Deviation detector

×

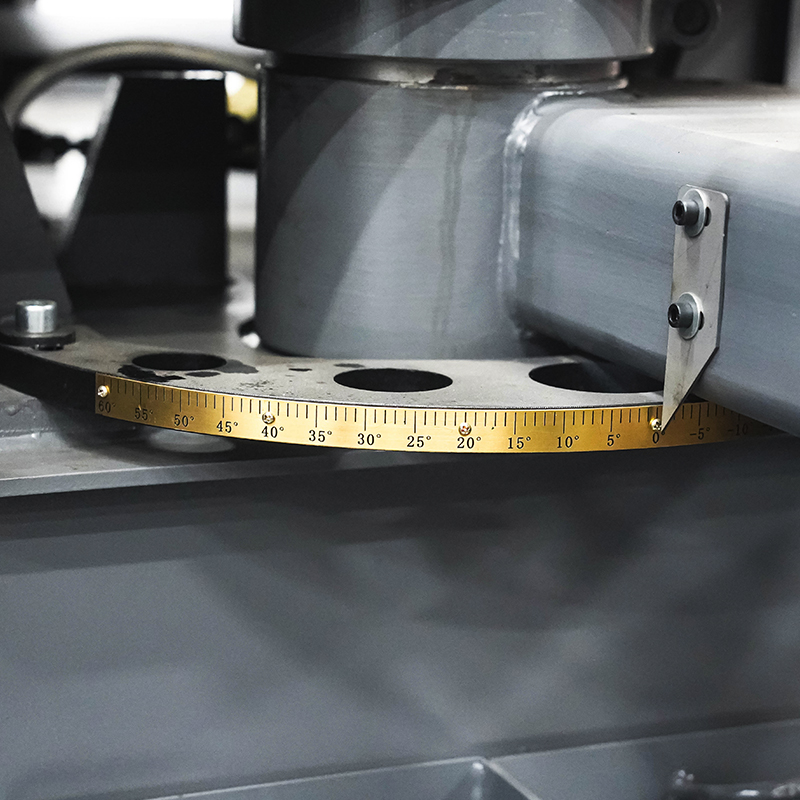

Automatic Angle sawing setting

×

HYDRAULICS

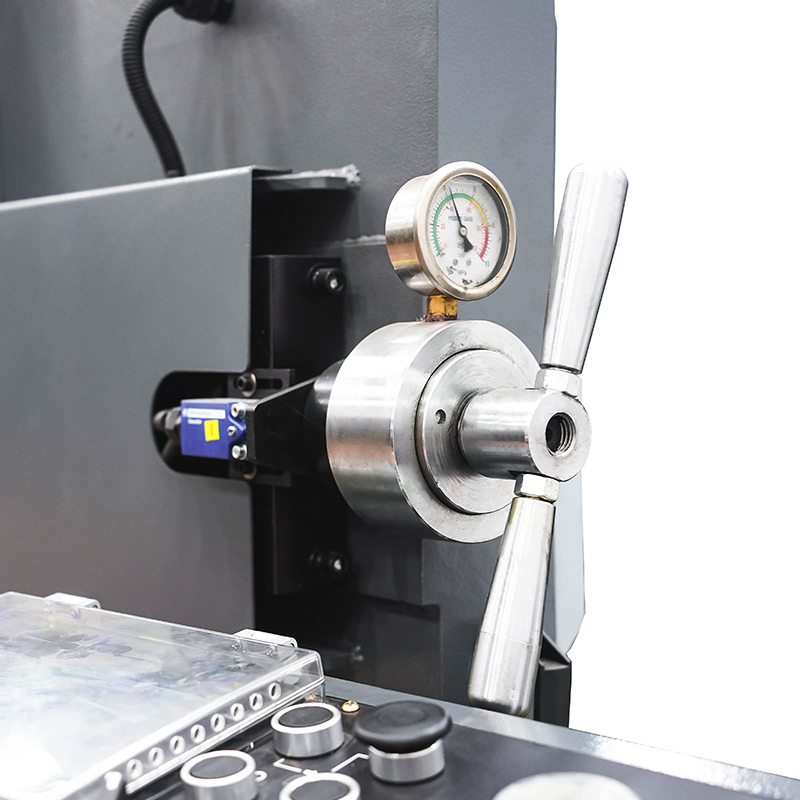

Vise pressure regulator

●

Motorized chip brush

●

Top clamp

○

Mist Spray device (1 L)

○

Hydraulic cooling fan

●

MATERIAL FEEDING

Hydraulic feeding

●

Servo feeding

○

Mechanical structure

Single Vise Clamping

●

Manual movable Guide arm

●

Tool box (wire brush, levelling pads, spare paint)

×

One piece Saw blade

●

Transport underframe for containers

○

● : Standard

○ : Optional

× : Non-optional
