As a leading industrial circular saw machine, it delivers exceptional precision and efficiency for continuous batch production, with a robust hydraulic system and intelligent control design that meets the strict demands of modern metal processing workshops. This automatic bar cutting saw supports versatile cutting of round and square metal materials, making it a core asset for businesses seeking to reduce secondary processing and improve production yield.

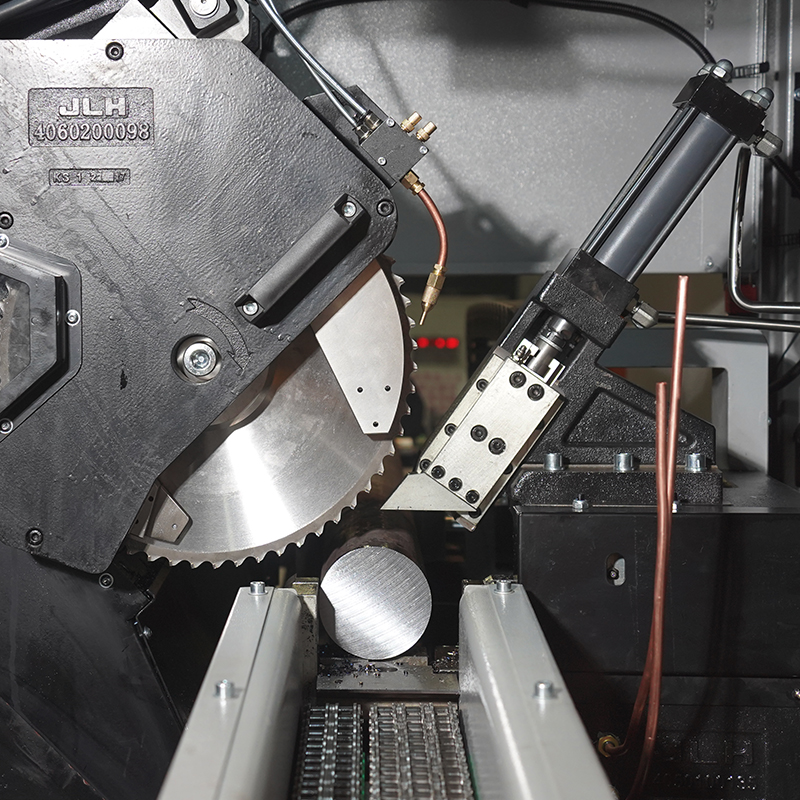

The C-120PRO circular saw features a 45-degree servo feed system, delivering stable cutting for round materials from Ø35 to Ø120mm and square materials from 35mm to 95mm. With a minimum cut-off length of just 5mm, it supports ultra-short precision part production without additional finishing. The infinitely variable cutting speed (30-160r/min) adapts to various metals, paired with a Ø425mm saw blade (Ø50mm bore, 2.7mm×2.25mm thickness) for consistent tolerance and minimal material waste.
Powered by an 18.5kw permanent magnet main drive motor, this high precision metal saw has a total connected load of 26KW, with adjustable saw feed speed (0.3-30mm/s) and 150mm/s rapid motion. Single-stroke automatic feeding reaches 800mm, while multi-stroke feeding supports up to 9999mm for long raw materials, minimizing downtime and maximizing continuous production efficiency.

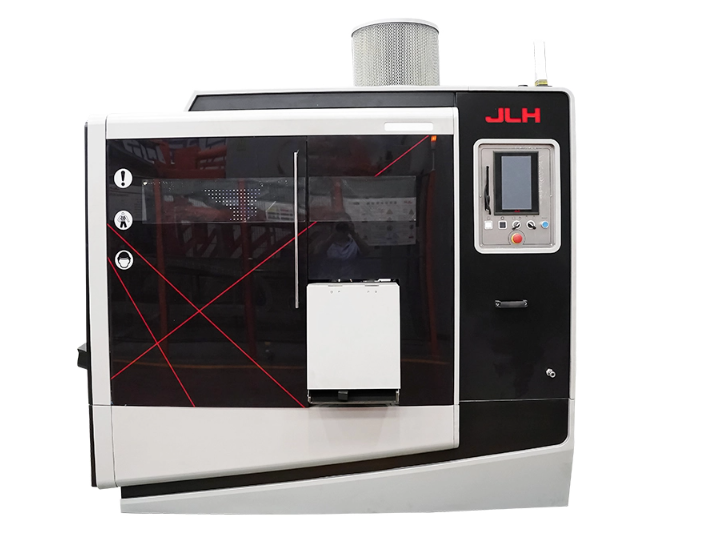

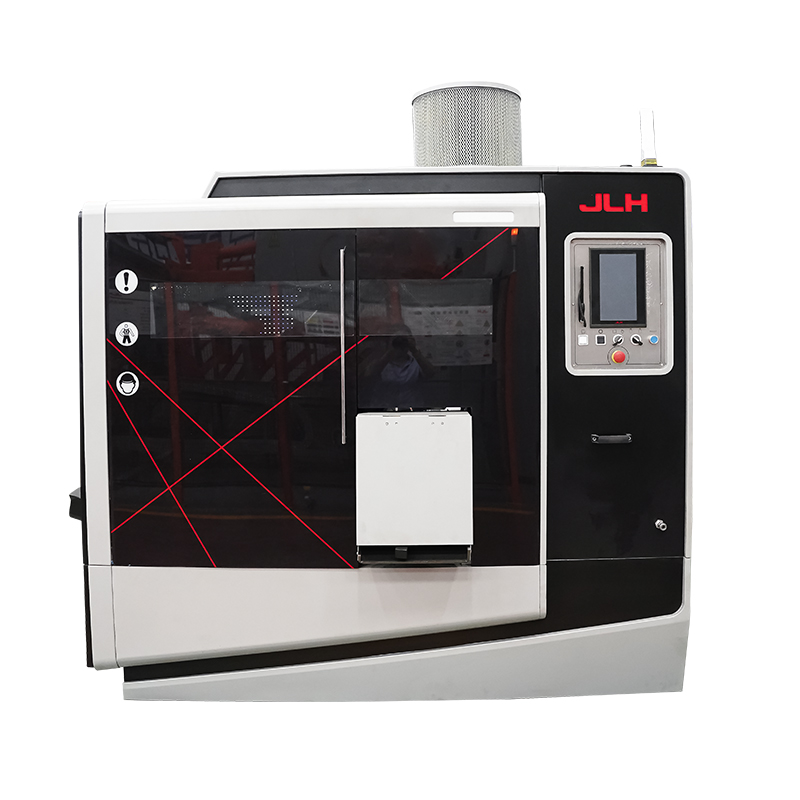

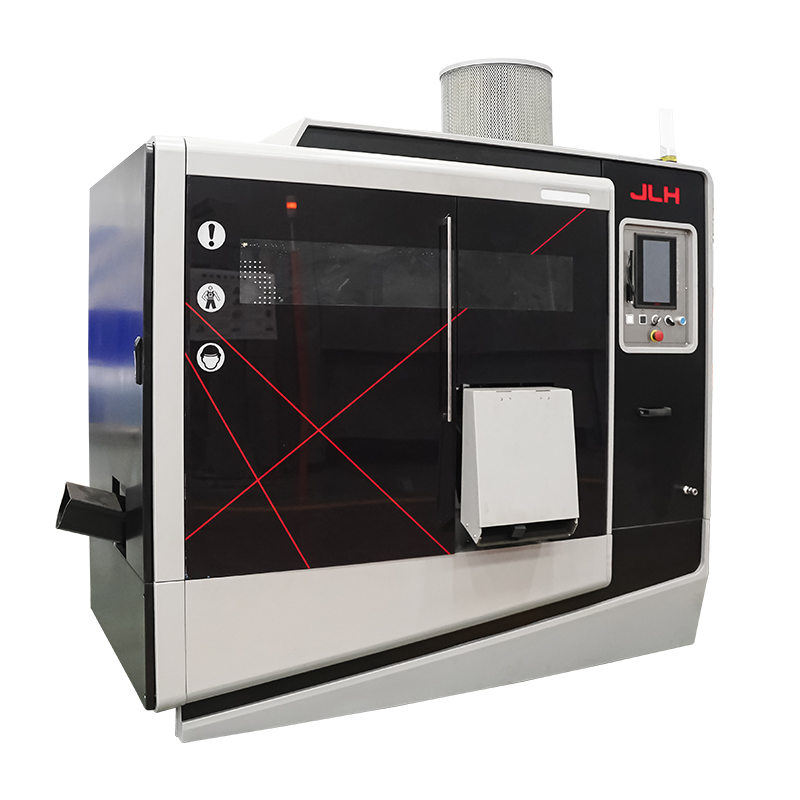

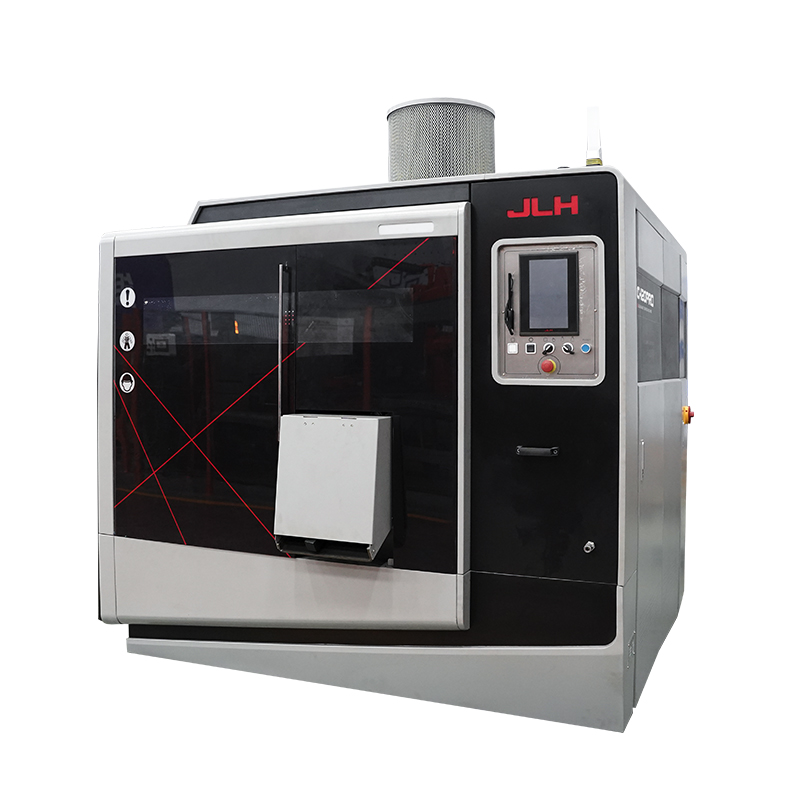

Built with CE standard fully enclosed protection and UL electrical safety certification as standard, the CNC medium bar saw prioritizes operator safety. It includes an HMI + button control panel, LED working light, 2L mistspray system, dust collection device, and pipe blast cleaning system, ensuring a clean, safe working environment and simplified daily operation and maintenance.
Standard equipment includes: 45-degree servo feed system, JLH-EHA control system, UL electrical safety compliance, permanent magnet main drive motor, inverter, mistspray system, dust collection device, automatic spiral chip conveyor, motorized chip brush, top clamp, hydraulic cooling fan, roller work table, 5.5m round material belt infeed magazine, 70L sawdust collection cart, and full tool kit.
Customizable options include: Saw Master control system, CE electrical safety compliance, vise pressure regulator, 0.8M servo feed unit, 1.5M/2M power output material tables, third vise, 5.5m inclined powered magazine for round/rectangular materials, circular saw blade, and container transport underframe.
This industrial tube cutting circular saw machine is ideal for automotive component manufacturing, furniture metal tube fabrication, construction steel profile processing, hydraulic fitting production, and precision metal fabrication workshops. It excels at high-volume cutting of carbon steel, stainless steel, and alloy steel tubes/bars, catering to industrial business users with strict accuracy and efficiency requirements.
It handles round materials Ø35-Ø120mm and square materials 35mm-95mm, with a 5mm minimum cut-off length for precision parts.
Single-stroke feeding reaches 800mm, while multi-stroke feeding supports up to 9999mm for long raw materials.
Yes, it comes standard with UL electrical safety certification and CE-standard fully enclosed protection.
It has a total weight of ~3950kg and total connected load of 26KW, suitable for fixed industrial workshop installation.
If you are a metal fabrication specialist or industrial manufacturing operator seeking a reliable, high-precision automatic bar cutting saw to optimize your production line, contact us today. We offer customized cutting solutions, free material cutting tests, professional technical support, and competitive pricing to help you boost efficiency, reduce costs, and gain a market competitive edge.
