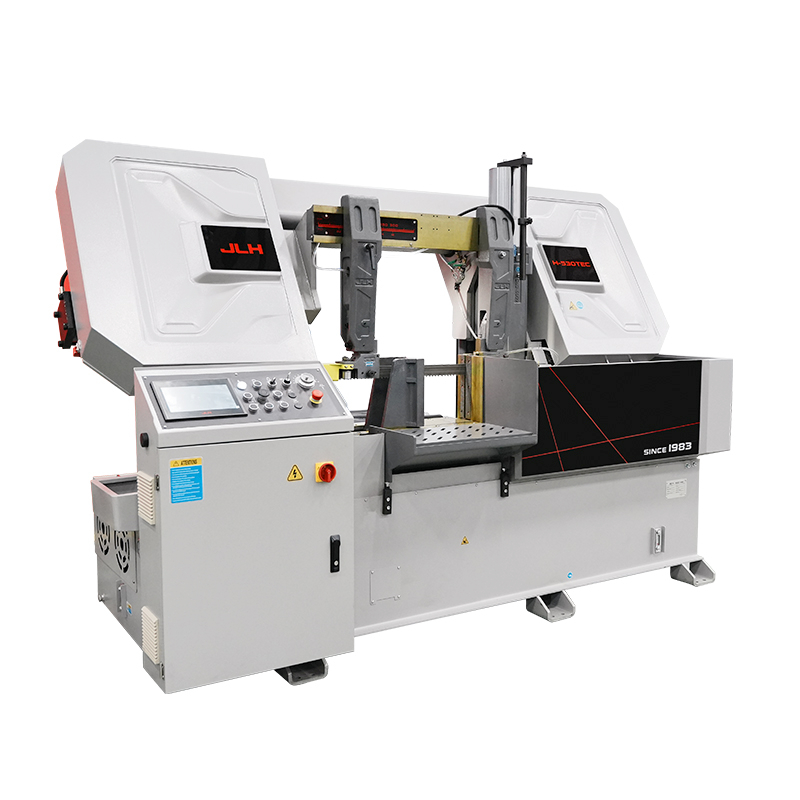

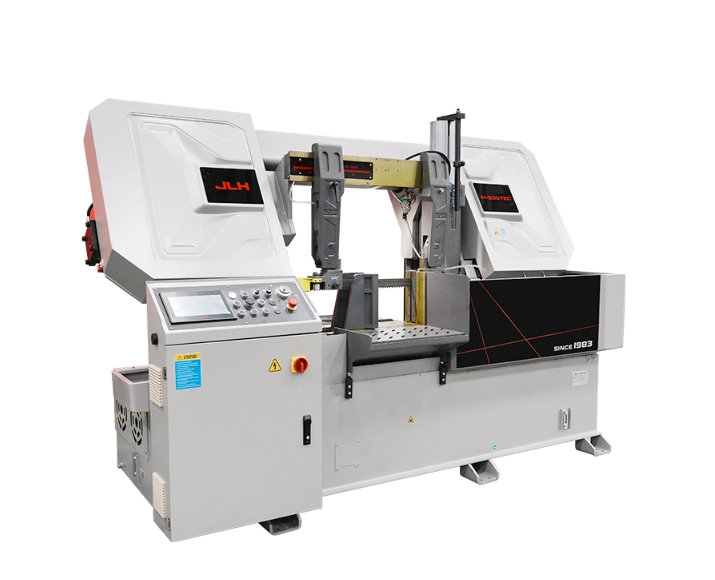

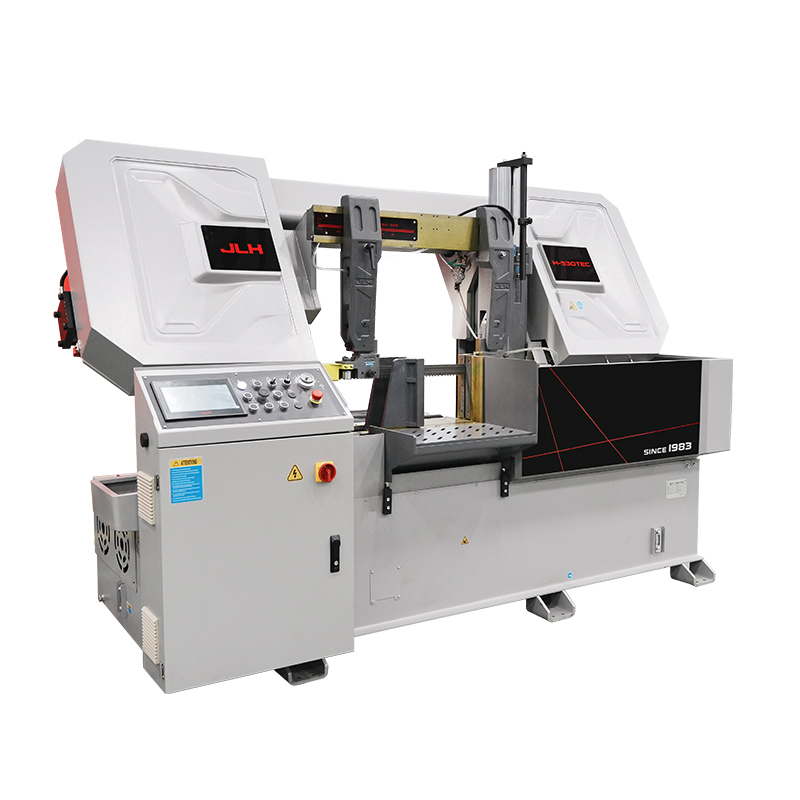

This automatic metal cutting band saw is built to CE safety standards, integrating an advanced Saw Master feed system, permanent magnet synchronous motor, and full intelligent safety detection, delivering stable, high-precision cutting for large-section, thick-walled metal materials. Designed to address core challenges of cutting deformation, low efficiency, and high consumable costs in heavy metal processing, this 530mm heavy metal cutting saw is the premium solution for continuous industrial heavy-duty cutting workflows.
This industrial metal band saw offers an industry-leading cutting capacity, supporting round materials up to Ø530mm and square materials up to 530×530mm, with a minimum cutting size of 20×20mm, adapting to diverse large-section metal profiles including thick-walled pipes, solid round steel, and mold steel. Its 7.5kW main saw motor delivers infinitely variable cutting speeds from 20 to 80m/min, with adjustable feed rates from 1 to 300mm/min, ensuring smooth, burr-free cutting for even the hardest metal alloys.

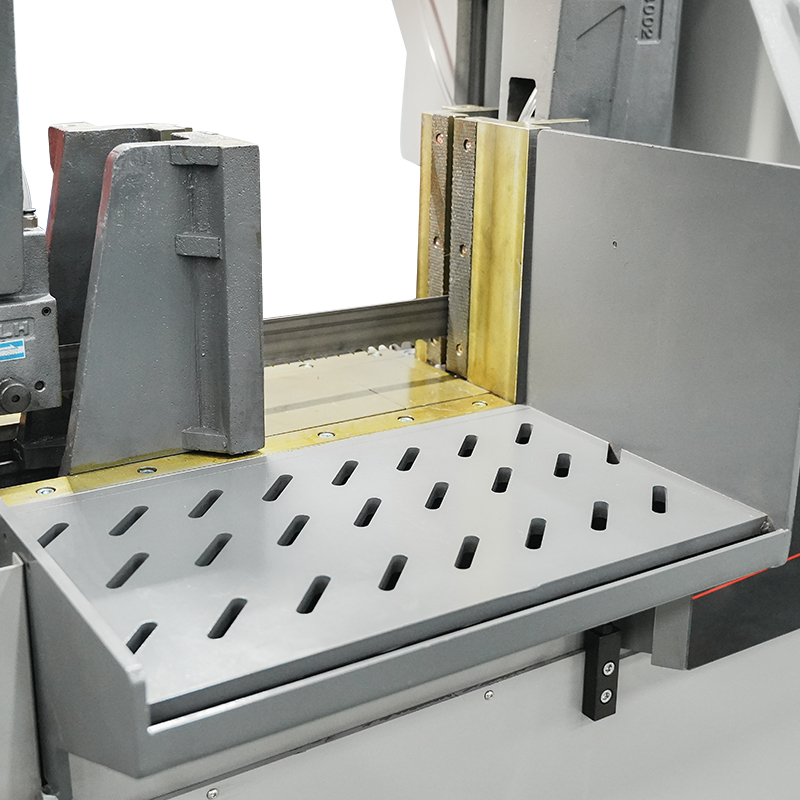

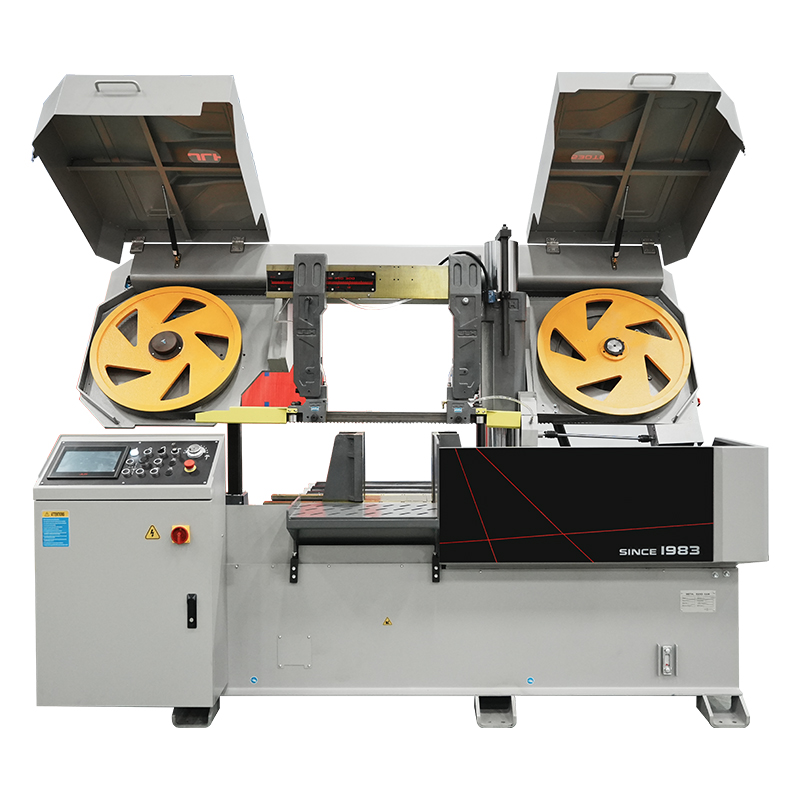

Equipped with standard sawbow anti-collision detection and blade breakage detection, this automatic cutting saw minimizes unexpected downtime and equipment damage, ensuring uninterrupted production. The hydraulic blade tension system, paired with a precision gear reducer and split vise clamping structure, maintains consistent cutting accuracy, reduces material deformation, and extends the service life of the 6300×54×1.6mm band saw blade, lowering long-term consumable costs for industrial users.

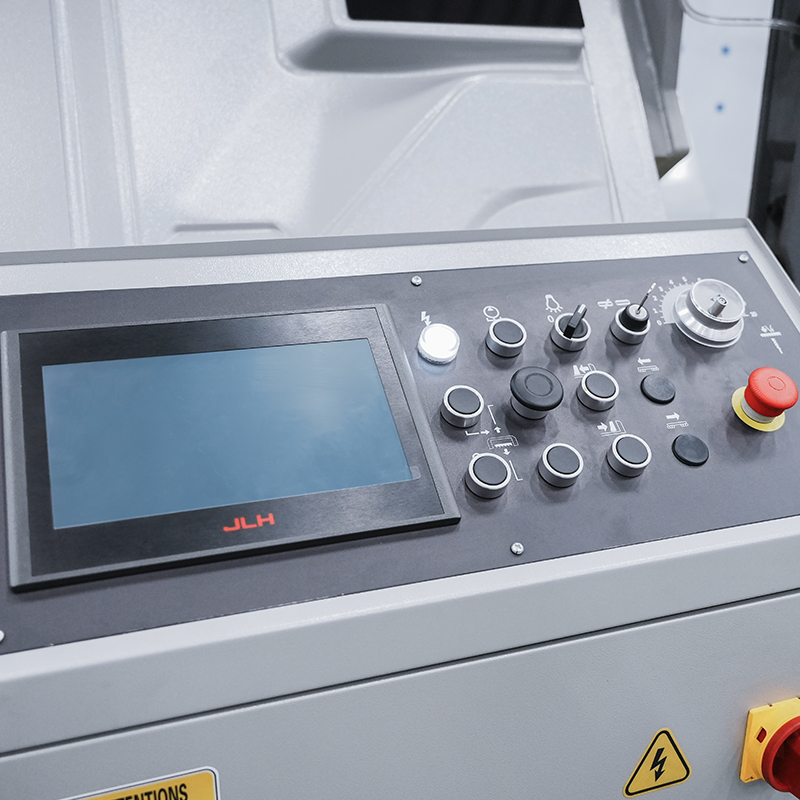

Compliant with CE electrical safety standards, the saw features an HMI + button dual control system for intuitive operation, a standard LED working light for clear visibility, and an automatic spiral chip conveyor with a 40L chip collection box, simplifying daily maintenance and keeping the work area clean. The integrated hydraulic cooling fan ensures stable performance even during 7×24 hour continuous industrial operation.
Saw Master feed system, CE electrical safety compliance, permanent magnet synchronous motor, sawbow anti-collision detection, LED working light, blade breakage detection, HMI + buttons control, inverter, hydraulic blade tension, vise pressure differential valves, automatic spiral chip conveyor, vise pressure regulator, motorized chip brush, hydraulic cooling fan, main drive precision gear reducer, split vise clamping, 40L chip collection box, standard band saw blade, and dedicated tool kit.
UL electrical safety compliance, laser line projection, sawing depth control, deviation detector, hydraulic blade guide clamping, top clamp, 70L movable chip collection box, and container transport underframe.
The H-530TEC heavy duty band saw is widely deployed in heavy machinery manufacturing, pressure vessel production, shipbuilding and offshore engineering, mold steel processing, wind power component fabrication, and metal raw material processing centers. It excels at cutting solid round steel, thick-walled square tubes, alloy steel, mold steel, and other heavy metal profiles, meeting the strict stability and precision requirements of industrial heavy-duty cutting operations.
This heavy metal cutting band saw supports a maximum round material cutting diameter of Ø530mm and a maximum square material cutting range of 530×530mm, fully adapting to large-section heavy metal profiles.
It comes standard with sawbow anti-collision detection, blade breakage detection, and CE electrical safety certification, providing comprehensive protection for both operators and equipment in industrial production environments.
Yes, the saw is equipped with a heavy-duty permanent magnet synchronous motor, precision gear reducer, and hydraulic cooling system, designed to deliver stable performance for 7×24 hour continuous industrial cutting operations.
Looking to upgrade your heavy metal cutting process, improve cutting accuracy for large-section materials, and reduce long-term production costs? Reach out to our professional technical team today to get a customized cutting solution, detailed product specifications, or an exclusive quote tailored to your industrial operation needs.
