As a professional-grade industrial metal saw, it is designed to address the core pain points of large-section, high-hardness steel cutting, delivering exceptional stability, ultra-large cutting capacity, and long-term continuous operational reliability. This big diameter cutting saw is an indispensable piece of heavy industry equipment for large-scale metal processing enterprises, heavy machinery manufacturers, and heavy steel fabrication bases, supporting high-volume, high-precision cutting of oversized steel workpieces.

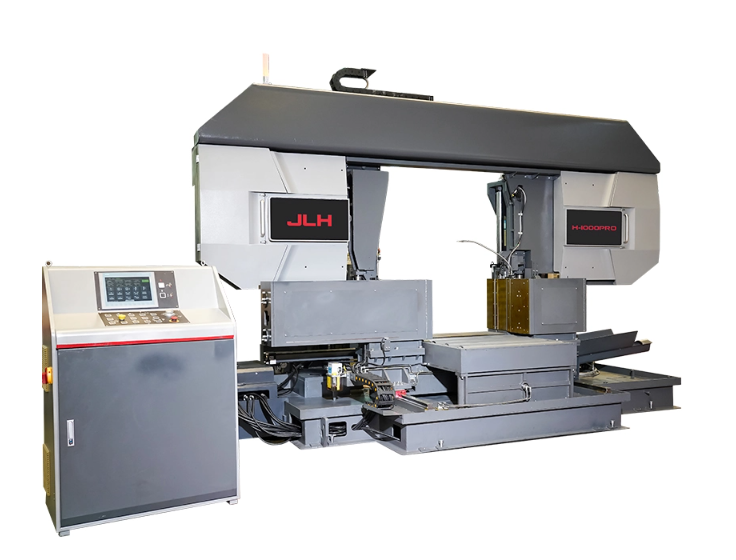

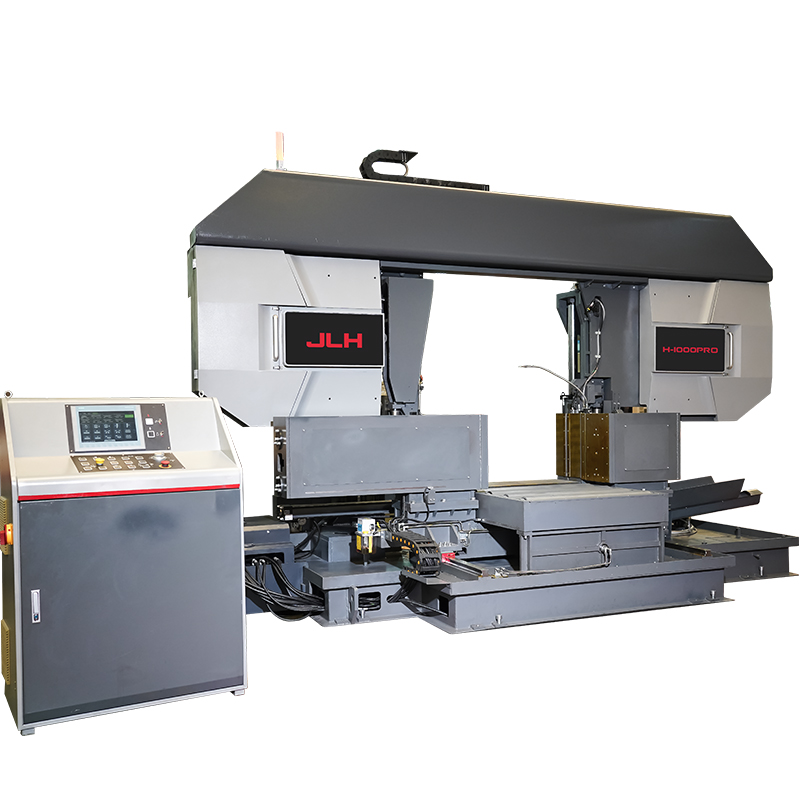

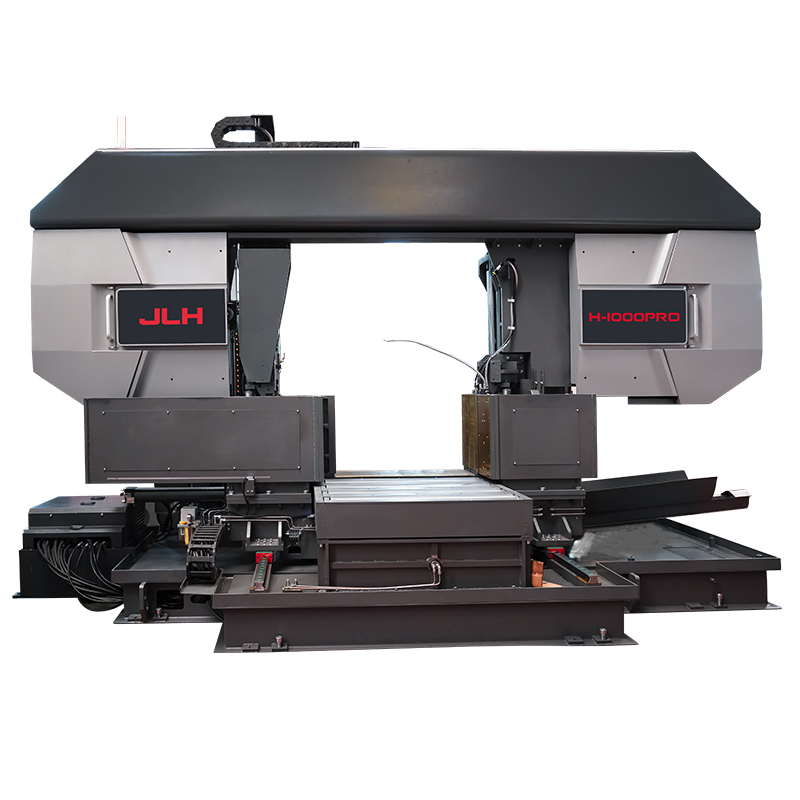

This large steel cutting band saw sets a new benchmark for heavy steel cutting, with a maximum cutting capacity of Ø1000mm for round steel and 1000×1000mm for square steel workpieces, a clamping range of 400-1000mm, and a minimum cutting size of 400×400mm. It supports a shortest cut-off piece length of 50mm, adapting to the cutting needs of large steel billets, thick-walled steel pipes, large section steel, and heavy mold steel, eliminating the need for multi-process cutting and significantly improving production efficiency for heavy industry workflows.

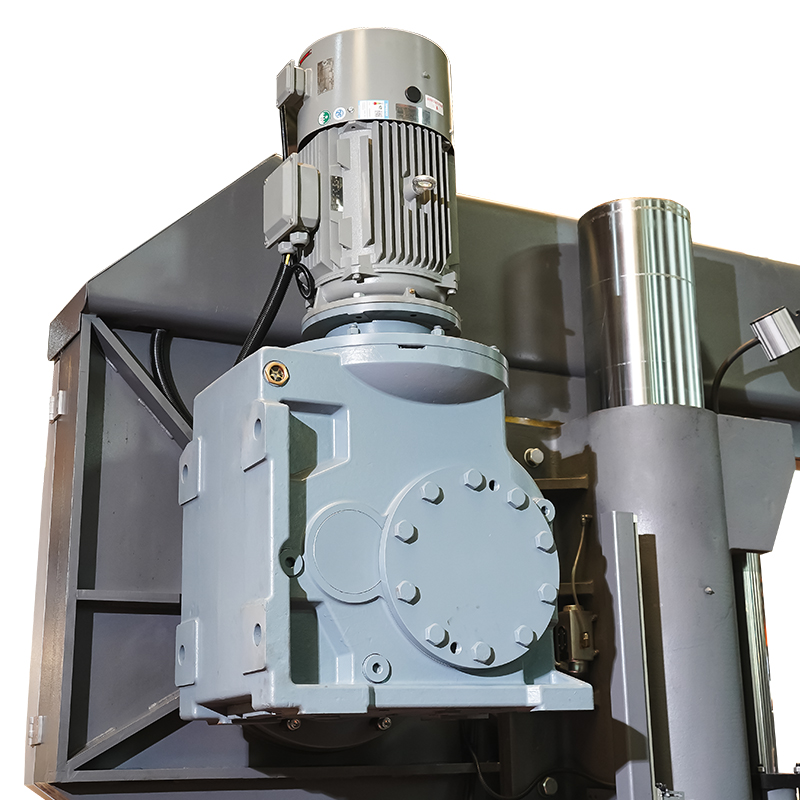

Equipped with a 22kw high-power saw motor and a total connected load of 33kw, this ultra heavy duty saw adopts a permanent magnetic synchronous motor and main drive precision gear reducer, delivering strong and stable cutting power for large-section, high-hardness steel materials. The infinitely variable cutting speed (20-80m/min) and feed speed (1-300mm/min) are optimized for heavy steel cutting, ensuring flat cutting surfaces, minimal saw blade wear, and reduced follow-up machining costs. The standard high-precision servo feeding system provides a single-stroke feed length of 500mm and a multi-stroke feed length of up to 9999mm, enabling continuous automatic cutting of oversized workpieces.

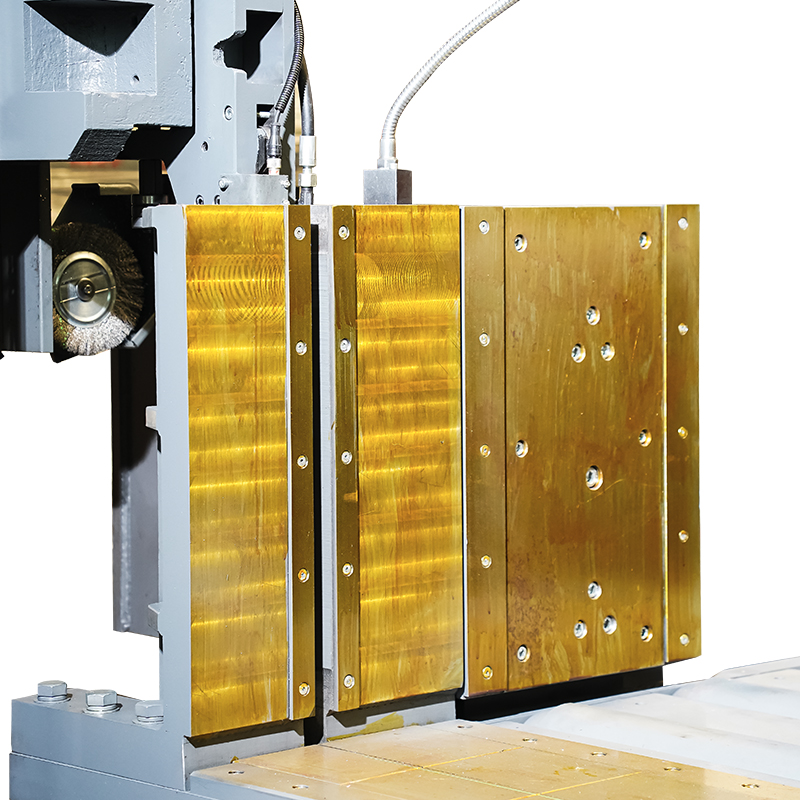

With a total weight of approximately 17000kg, the saw features a reinforced heavy-duty frame with excellent anti-vibration performance, fully adapting to 7×24 hour continuous production in heavy industry environments. It comes standard with dual automatic chip conveyor systems (spiral and belt-type), motorized chip brush, and hydraulic cooling fan, ensuring stable operation even under long-term high-load conditions. The split vise clamping system with vise pressure differential valves provides secure clamping for large heavy workpieces, preventing workpiece displacement during cutting and ensuring consistent cutting accuracy.
Standard configurations include CE standard fully enclosed protection, JLH-EHA downfeed system, Saw Master control system, CE electrical safety compliance, permanent magnetic synchronous motor, sawbow anti-collision detection, LED working light, blade breakage detection, sawing depth control, HMI+buttons operation, inverter, cutting deviation detector, vise pressure differential valves, spiral-type automatic chip conveyor, belt-type automatic chip conveyor, hydraulic blade guide clamping, motorized chip brush, hydraulic cooling fan, roller type work table, servo feeding system, split vise clamping, main drive precision gear reducer, 40L chip collection box, standard tool kit, and one piece saw blade.
Customizable optional configurations include UL electrical safety certification, laser line projection, 0-start first cut option, top clamp device, hydraulic feeding system, 70L movable chip collection box, and container transport underframe, allowing for tailored upgrades to match specific heavy industry production needs.
This big diameter cutting saw is tailored for heavy industry scenarios, including heavy machinery manufacturing, large-scale steel structure engineering, shipbuilding, wind power equipment production, mining machinery manufacturing, petrochemical equipment fabrication, large mold steel processing, and steel billet cutting in steel mills. It is the preferred cutting solution for large industrial enterprises, heavy equipment manufacturers, and heavy steel fabrication bases that require reliable, high-capacity heavy steel cutting.
It supports a maximum cutting diameter of Ø1000mm for round steel and 1000×1000mm for square heavy steel workpieces, specially designed for ultra-large heavy steel cutting tasks in heavy industry environments.
The H-1000PRO comes standard with a high-precision servo feeding system for accurate and stable feeding of large heavy workpieces, with a single-stroke feed length of 500mm and a multi-stroke feed length of up to 9999mm. Hydraulic feeding is available as an optional configuration.
Yes, it features a 17000kg reinforced heavy-duty frame, dual automatic chip removal systems, and a high-power stable drive system, fully adapting to 7×24 hour continuous high-load production in heavy industry scenarios, with excellent wear resistance and anti-vibration performance to minimize downtime.
If your enterprise needs a reliable, high-capacity large steel cutting band saw to handle oversized heavy steel cutting operations, the H-1000PRO is the ultimate solution for your production needs. Contact us today to receive a customized technical solution, detailed configuration quote, and full-process professional support from our heavy industry equipment experts. We are dedicated to delivering robust, efficient cutting solutions that drive your heavy manufacturing projects forward and maximize your production performance.
