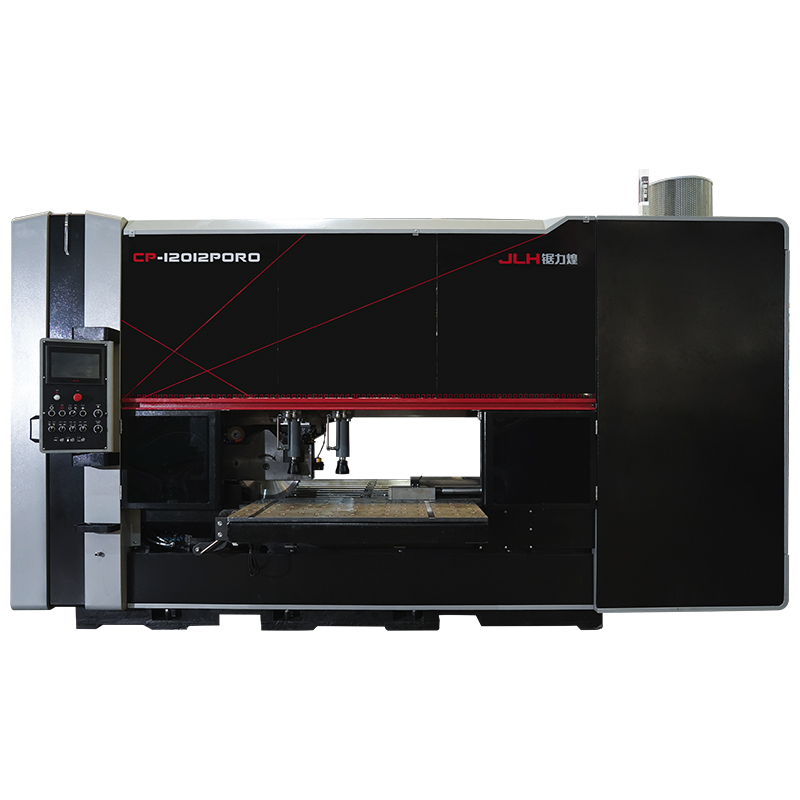

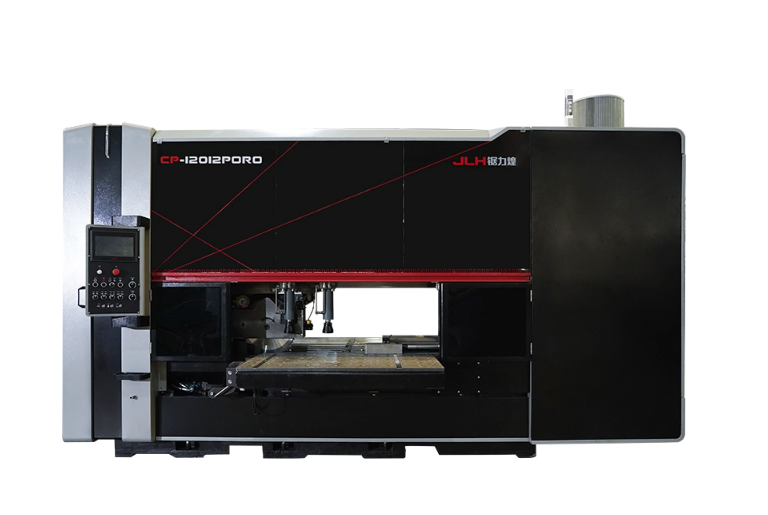

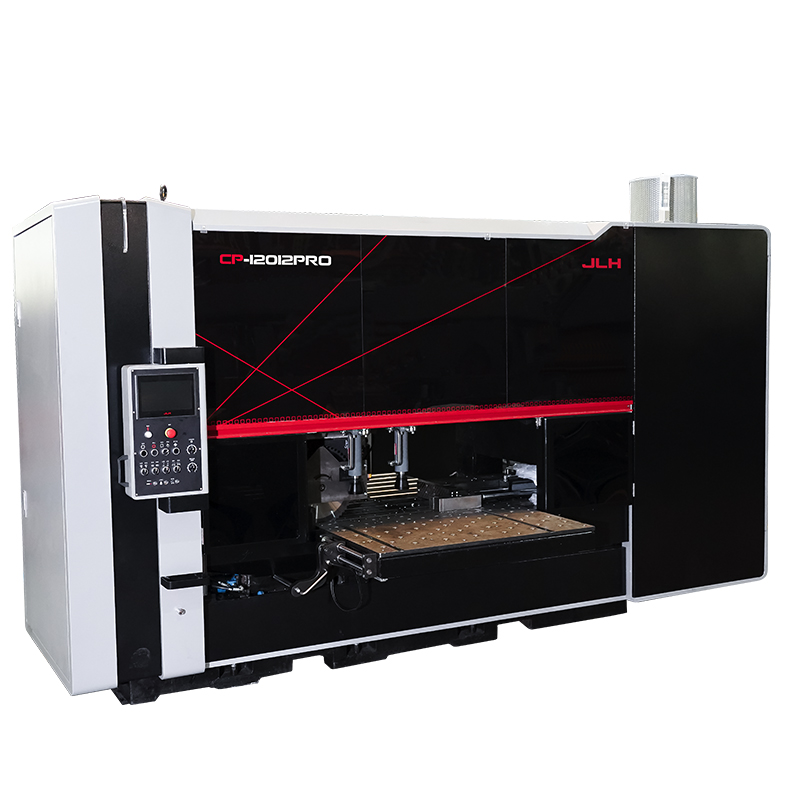

Built for metal fabrication workshops and precision component manufacturers, this industrial circular saw combines servo-driven intelligence, high-speed cutting capability, and full environmental protection to deliver consistent, high-quality results for batch and continuous production. Boasting a rigid 8100kg frame, 37kw total connected load, and a 30kw high-torque saw motor, it handles a wide range of metal plate materials with unmatched precision, with a maximum cutting size of 1200×130mm for square workpieces.
At the heart of the CP-12012PRO heavy duty metal plate saw is its advanced cutting system, with infinitely variable cutting speeds of 40-100rpm/min and an adjustable saw feed speed range of 1-700mm/min. This wide adjustment range allows it to adapt to various metal materials, including mild steel, stainless steel, aluminum, and alloy plates, delivering smooth, burr-free cuts with exceptional dimensional accuracy. Compatible with Ø460mm carbide saw blades, it maintains stable performance even during high-volume batch production, reducing secondary finishing work and improving overall production efficiency for metal processing enterprises.
This carbide metal cutting circular saw features a high-precision 0-degree servo feed system and full servo-driven material feeding, with a single-stroke automatic feed length of 500mm and a multi-stroke maximum feed length of 9999mm, supporting long-length plate cutting for diverse production needs. Its industry-leading minimal remnant length design achieves a 40mm minimum remnant length for individual cuts and 100mm for fully automatic operation, drastically reducing raw material waste and lowering production costs. The standard top clamp system ensures secure fixation of thin and thick plates alike, eliminating workpiece shifting during cutting for consistent precision.

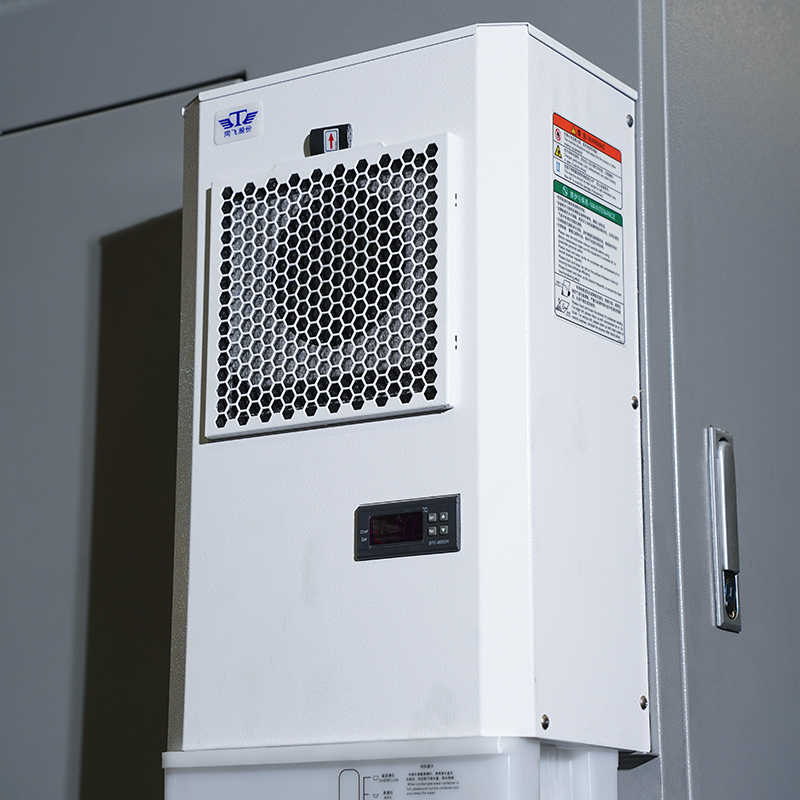

Designed to meet CE safety standards, the CP-12012PRO metal fabrication circular saw comes with a fully enclosed protective sheet metal structure as standard, isolating the cutting area to maximize operator safety. The integrated 2L mistspray system provides efficient cooling and lubrication for the saw blade, extending its service life, while the standard dust collection device and automatic spiral chip conveyor effectively capture and remove cutting dust and waste, maintaining a clean, healthy workshop environment. A standard cabinet air conditioner ensures stable electrical system operation, preventing overheating during long-term continuous production, and the LED working light provides clear visibility of the cutting area for precise operation.

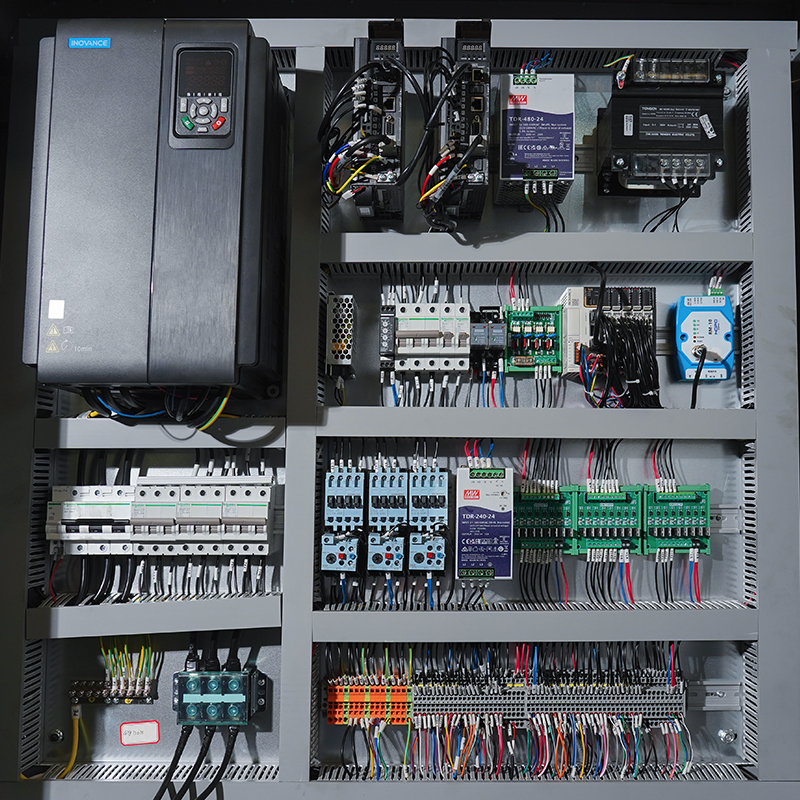

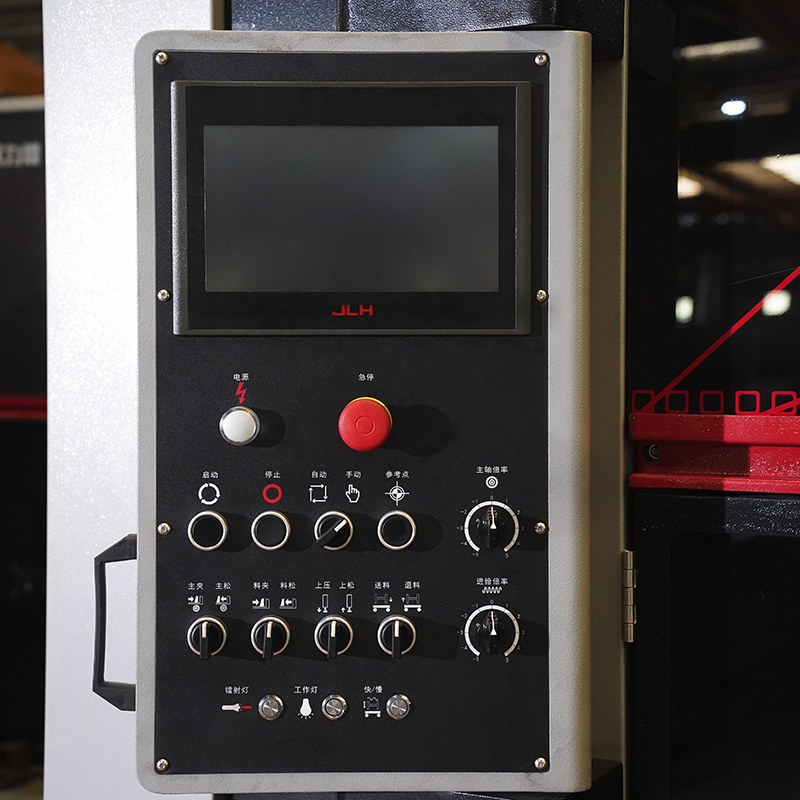

Every CP-12012PRO industrial circular saw is equipped with premium standard features: CE standard fully enclosed protection, 0-degree servo feed system, permanent magnetic synchronous motor, CE Electrical Safety compliance, HMI + button control interface, high-performance inverter, 2L mistspray system, dust collection device, cabinet air conditioner, LED working light, automatic spiral chip conveyor, top clamp system, hydraulic cooling fan, roller type work table, servo feeding system, 70L sawdust collection cart, standard tool kit, and a pre-installed high-quality saw blade.
To accommodate customized production requirements, we offer flexible optional configurations including UL Electrical Safety compliance, Saw Master intelligent system, vise pressure regulator, automatic lubrication device, and container transport underframe, allowing you to optimize the machine for your specific production workflow.
The CP-12012PRO metal plate cutting circular saw is ideal for a wide range of precision metal processing sectors, including sheet metal fabrication, automotive component manufacturing, elevator equipment production, electrical cabinet fabrication, general machinery parts processing, steel structure accessory manufacturing, and hardware processing. Its high precision, high-speed cutting capability, and material-saving design make it perfect for both small-batch customized production and large-scale continuous manufacturing.
This machine delivers a maximum square cutting size of 1200×130mm, with a minimum cut-off piece size of 20×20mm for flexible small-part production.
It achieves a minimum remnant length of 40mm for individual cuts, and 100mm for fully automatic continuous operation, significantly reducing raw material waste.

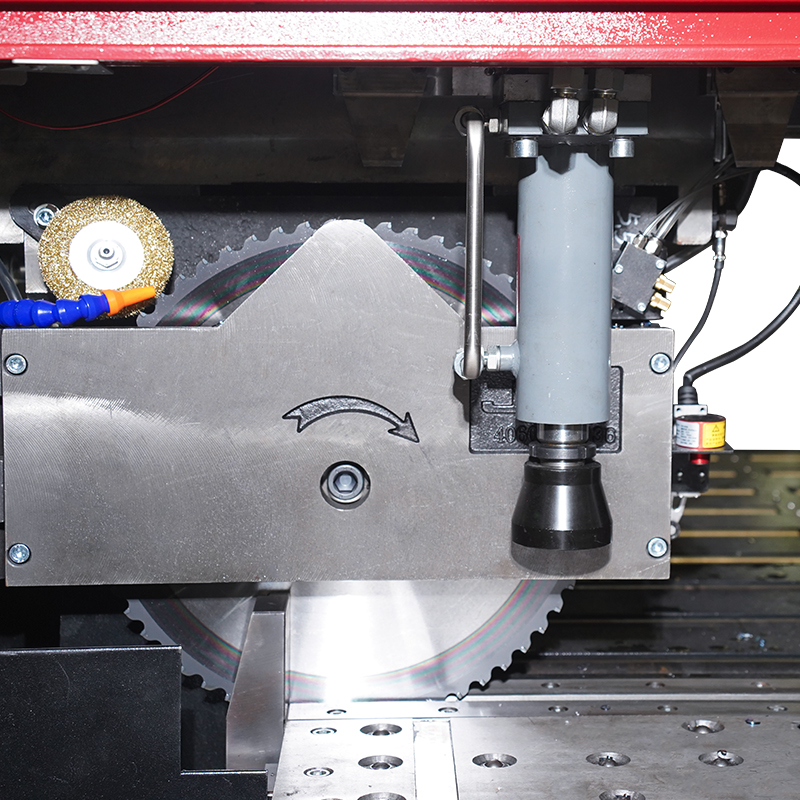

The CP-12012PRO automatic circular saw uses a Ø460mm saw blade with a Ø50mm bore, and a thickness of 2.7mm×2.25mm, compatible with carbide blades for high-performance cutting.
For metal fabrication workshops, precision component manufacturers, and sheet metal processing enterprises seeking a high-efficiency, high-precision automatic circular saw for metal plate cutting, the CP-12012PRO is the perfect fit for your production needs. Contact our professional technical sales team today to get a detailed product brochure, personalized configuration quote, or to arrange a remote product demonstration. We are dedicated to providing tailored metal cutting solutions that boost your production efficiency, reduce material waste, and drive long-term business growth.
