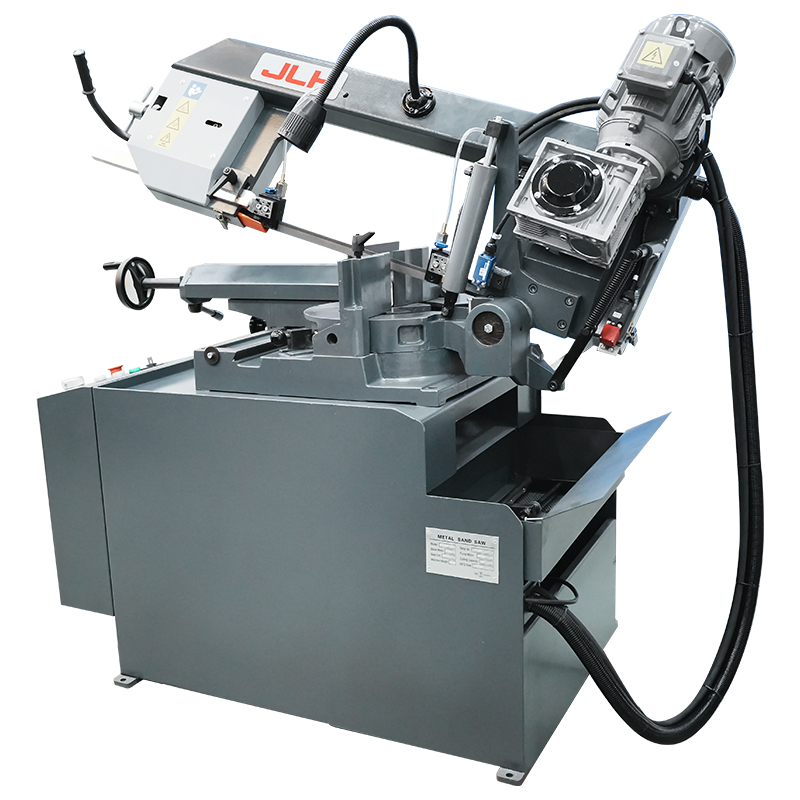

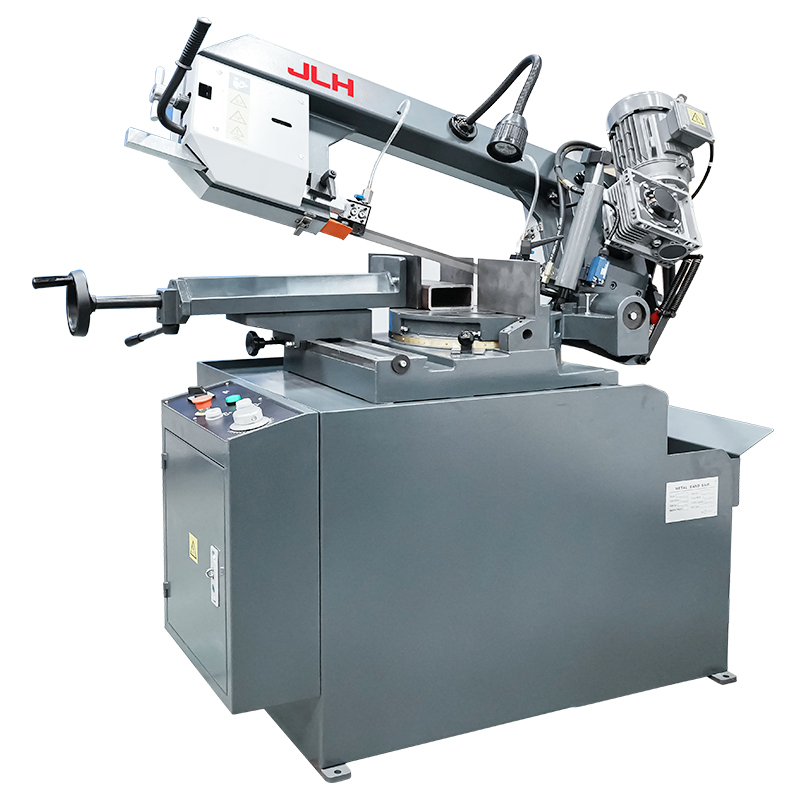

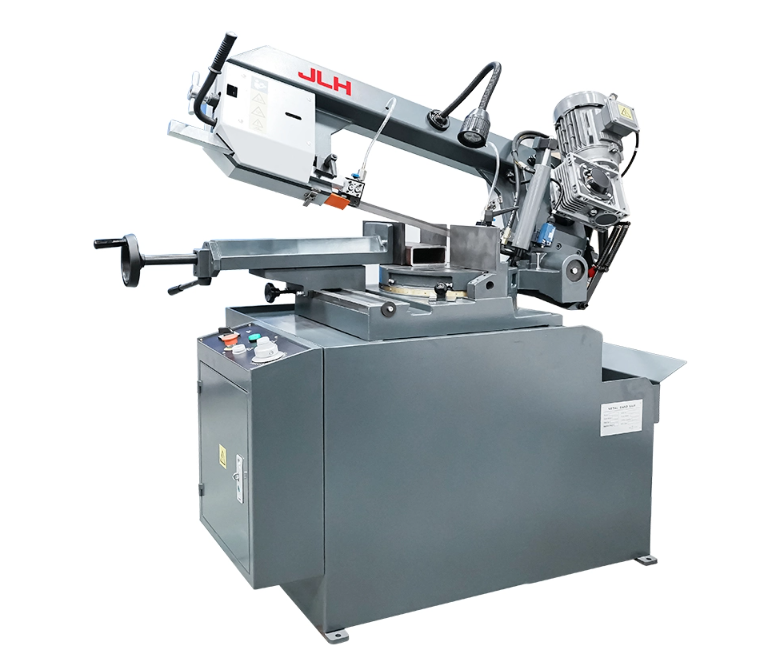

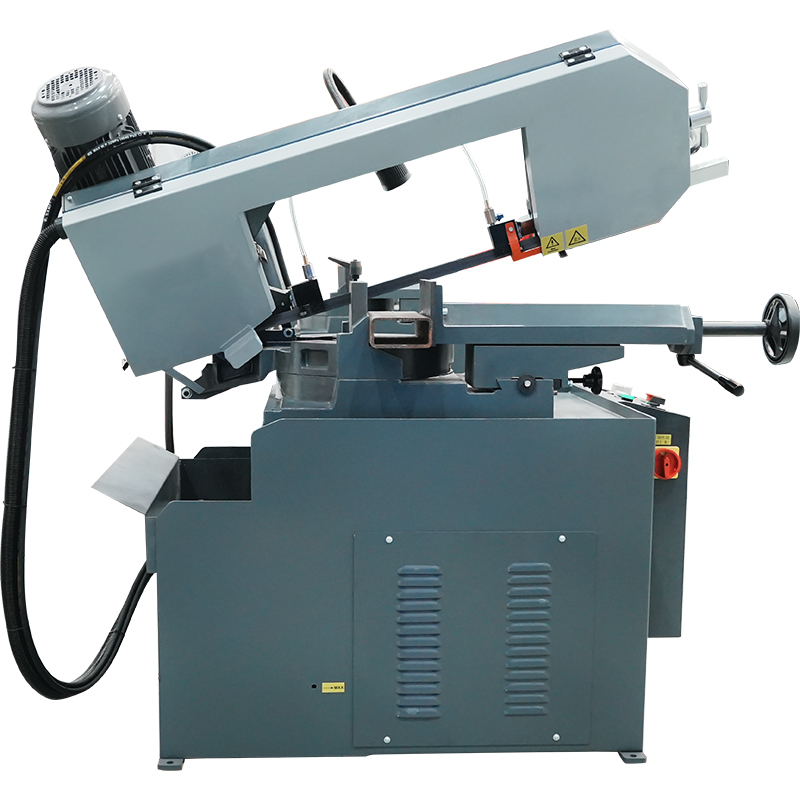

Designed to deliver reliable precision cutting for small-format metal materials, this compact metal saw combines user-friendly operation, low energy consumption, and a small footprint, making it the ideal entry-level industrial cutting solution for workshops with limited space and variable small-batch production needs. Capable of cutting round bar up to Ø230mm at 90°, and flat stock up to 310×230mm at 90°, it supports flexible angle cutting at 45° and 60°, with a total connected load of just 2kw to keep operational costs low. Weighing approximately 470kg, it offers easy installation and stable performance for daily light fabrication workflows.
With a body length of just 800mm and a total height of 1500mm, this small industrial saw fits seamlessly into tight workshop spaces, eliminating the need for extensive floor planning. Its low 2kw total power draw drastically reduces energy costs compared to heavy-duty models, while its durable construction minimizes maintenance expenses, delivering exceptional return on investment for small and growing metal processing businesses. The dual cutting speed settings (36/70 m/min) adapt to different metal types, ensuring clean cuts while optimizing blade life for everyday use.
Engineered for precision in small-component processing, this angle cutting band saw delivers consistent cuts for materials as small as 10×10mm, with a minimum cut-off piece length of 30mm for tight-tolerance small parts. It supports 45° cutting for round bar up to Ø210mm and 60° cutting up to Ø140mm, making it perfect for multi-angle cutting of small profiles, tubes, and solid bar for light fabrication projects. The integrated blade breakage detector enhances operational safety and prevents workpiece damage during use.
Designed for simple operation without complex programming, this light fabrication equipment features an intuitive control system that requires minimal operator training. Its single valve feed control and manual movable guide arm offer easy adjustment for different workpiece sizes, while the standard CE-compliant safety protection ensures safe operation in all workshop environments. The included standard saw blade delivers immediate usability out of the box, with minimal ongoing maintenance requirements.
Every unit comes standard with: CE standard safety protection sheet metal, single valve feed control, CE electrical safety compliance, LED working light, blade breakage detector, single vise clamping, manual movable guide arm, and one piece saw blade.
Tailor the saw to your needs with optional upgrades: UL electrical safety compliance, laser line projection, vise pressure regulator, 1L mist spray device, and transport underframe for containers. Double valve feed control, HMI+Buttons, inverter, deviation detector, automatic angle sawing setting, motorized chip brush, top clamp, hydraulic cooling fan, hydraulic feeding, servo feeding, and tool box are non-optional.
The S-230DM ECO Band Saw is perfectly suited for:
Small to medium metal fabrication workshops and job shops
Light machinery assembly and component manufacturing
Hardware and fastener production
Automotive aftermarket parts processing
Furniture metal fitting fabrication
On-site metal repair and maintenance services
The saw reliably cuts materials as small as 10×10mm, making it ideal for precision processing of small metal workpieces and thin profiles.
The saw has a body length of just 800mm, a width of 1600mm including the chip conveyor, and a height of 1500mm, making it perfect for workshops with limited floor space.
Yes. Its dual-speed cutting settings, flexible angle cutting capability, and simple, tool-free adjustments make it perfectly suited for the variable, small-batch production needs of small and medium metal fabrication operations.
For small to medium metal processing businesses seeking a reliable, cost-effective compact angle cutting band saw, the S-230DM ECO model delivers the precision, flexibility, and low operational costs you need to grow your business. Reach out to our sales team today to request a personalized quote, learn more about optional upgrades, and find the perfect cutting solution for your workshop’s unique needs.
S-230DM-ECO | |||
Cutting range | Cutting range 90° round | Ø230mm | Ø9in |
Cutting range 90° flat (W x H) | 310*230mm | 12.2*9in | |
Cutting range 45° round | Ø210mm / | Ø8.3in | |
Cutting range 45° flat (W x H) | 210*210mm | 8.3*8.3in | |
Cutting range 60° round | Ø140mm / | Ø5.5in | |
Cutting range 60° flat (W x H) | 140*140mm | 5.5*5.5in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-310mm/ | 0-12.2in | |
Shortest length of cut-off piece | 30mm/ | 1.2in | |
Shortest remnant length individual cut | 50mm/ | 2in | |
Dimensions and weight | Length | 800mm/ | 31.5in |
Width incl. chip conveyor | 1600mm/ | 63in | |
Height | 1500mm/ | 59in | |
Material support height | 880mm/ | 34.6in | |
Total weight | ≈470kg | ≈1036lb | |
Performance characteristics | Total connected load | 2kw | 2.66hp |
Power of saw motor | 1.3-1.8kw/ | 1.7-2.4hp | |
Hydraulic motor | - | ||
Cutting speed infinitely variable with | 36/70 m/min | 118/230 ft/min | |
Saw feed speed | 1 - 300 mm/min | 0.04-11.8in/min | |
Dimensions of saw blade | 2910*27*0.9mm | 114.6 *1.06*0.03in | |
Category of configuration | Functional description | S-230DM-ECO |
Exterior Protection Sheet Metal | CE standard safety protection | ● |
DOWNFEED SYSTEM | Double valve feed control | × |
Single valve feed control | ● | |

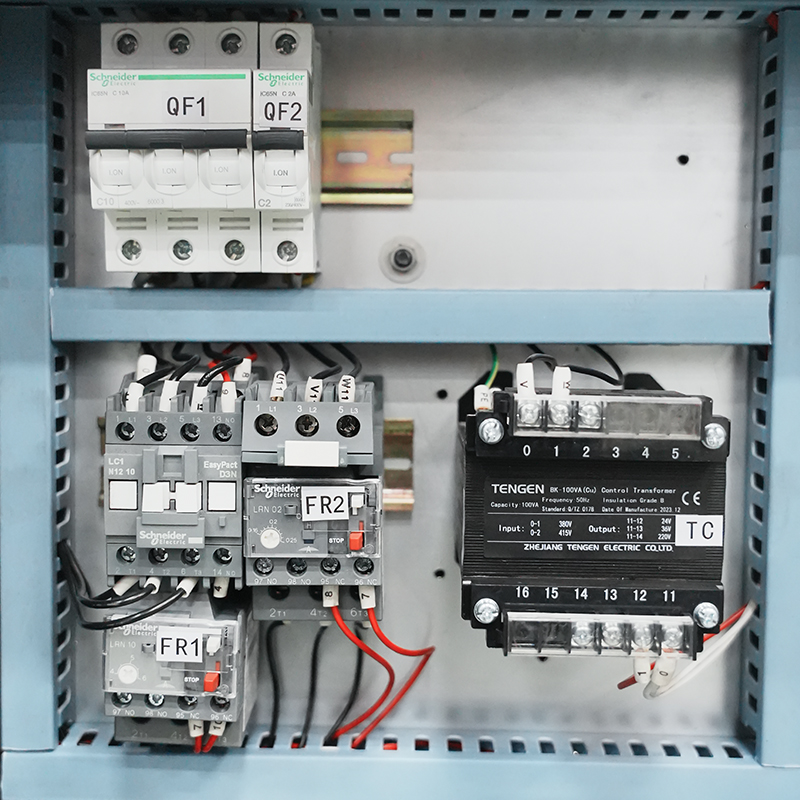

ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detector | ● | |
HMI+Buttons | × | |
Inverter | × | |
Deviation detector | × | |
Automatic Angle sawing setting | × | |
HYDRAULICS | Vise pressure regulator | ○ |
Motorized chip brush | × | |
Top clamp | × | |
Mist Spray device (1 L) | ○ | |
Hydraulic cooling fan | × | |
MATERIAL FEEDING | Hydraulic feeding | × |
Servo feeding | × | |
Mechanical structure | Single Vise Clamping | ● |

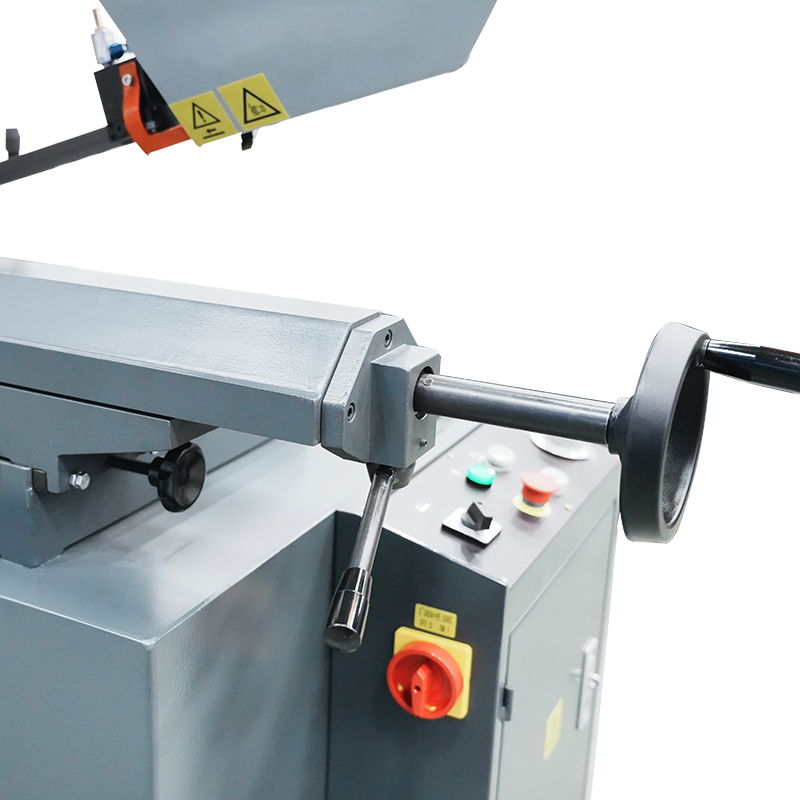

Manual movable Guide arm | ● | |
Tool box (wire brush, levelling pads, spare paint) | × | |
One piece Saw blade | ● | |
Transport underframe for containers | ○ | |
● : Standard | ○ : Optional | × : Non-optional |
