H-1310T TEC | |||
Cutting range | Cutting range round | Ø1000mm | Ø39.4in |
Cutting range square (W x H) | 1300*1000mm | 51.2*39.4in | |
Smallest size to be cut | 600*600mm | 23.7*23.7in | |
Clamping range | 600-1300mm | 23.7-51.2in | |
feeding platform length | 2000mm | 78.74in | |
feeding platform travel distance | 2000mm | 78.74in | |
Dimensions and weight | Length | 5270mm | 207.48in |
Width incl. chip conveyor | 5650mm | 222.44in | |
Height | 2810mm | 110.63in | |
Material support height | 623mm | 24.53in | |
Total weight | ≈14500kg | ≈31972.5lb | |
Performance characteristics | Total connected load | 33kw | 44hp |
Power of saw motor | 22kw | 30hp | |
Hydraulic motor | 3.75kw | 5hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1 - 300mm/min | 0.04-11.8in/min | |
Dimensions of saw blade | 10900*67*1.6mm | 429.13*2.64*0.06in | |

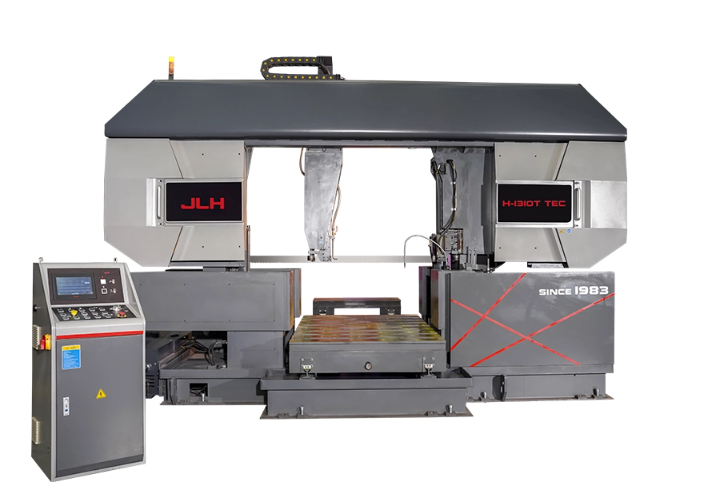

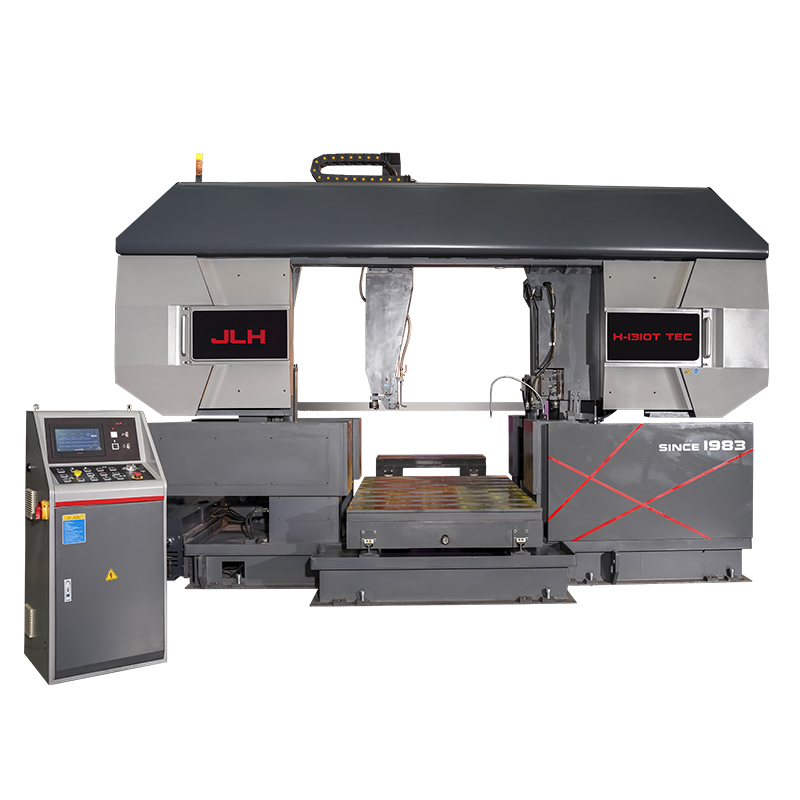

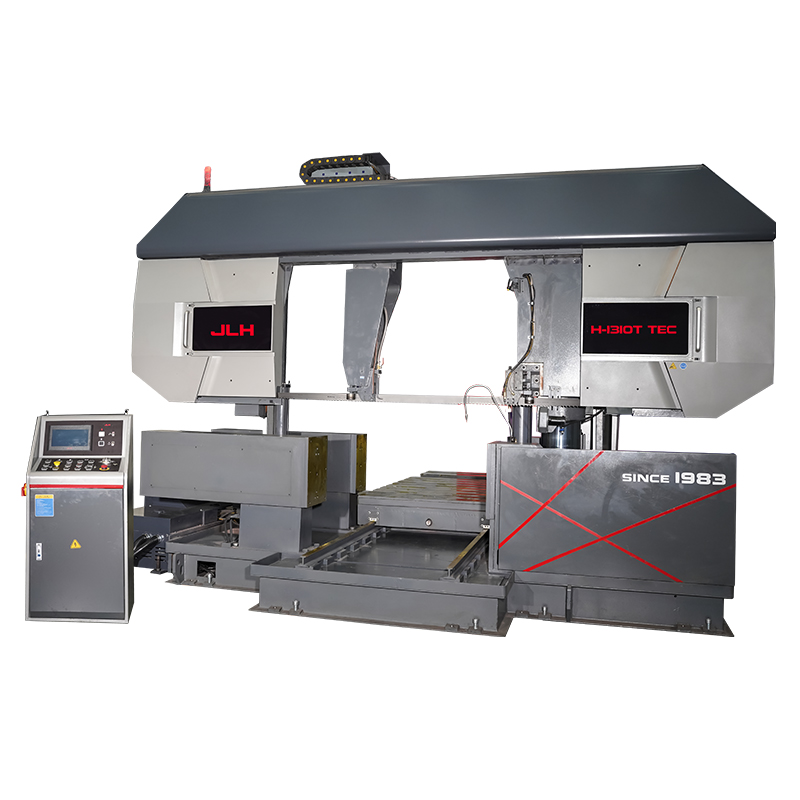

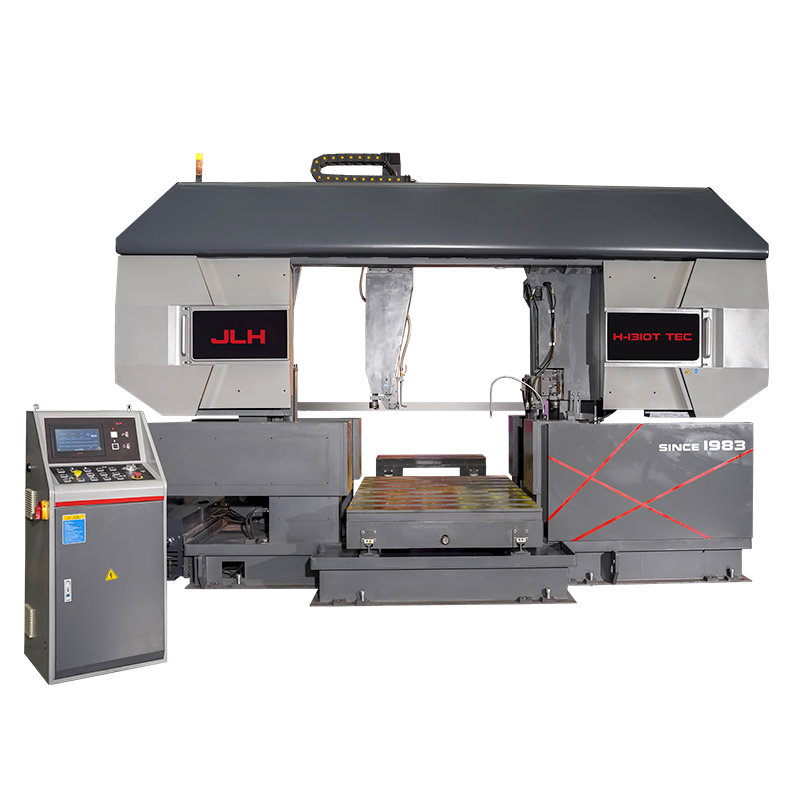

With a robust 14500kg heavy-duty frame, 33kw total connected load, and a 22kw high-performance saw motor, it handles the toughest cutting tasks with consistent reliability. Its industry-leading cutting range supports round materials up to Ø1000mm and square workpieces up to 1300×1000mm, making it the ideal choice for large structural steel and forging cutting applications.

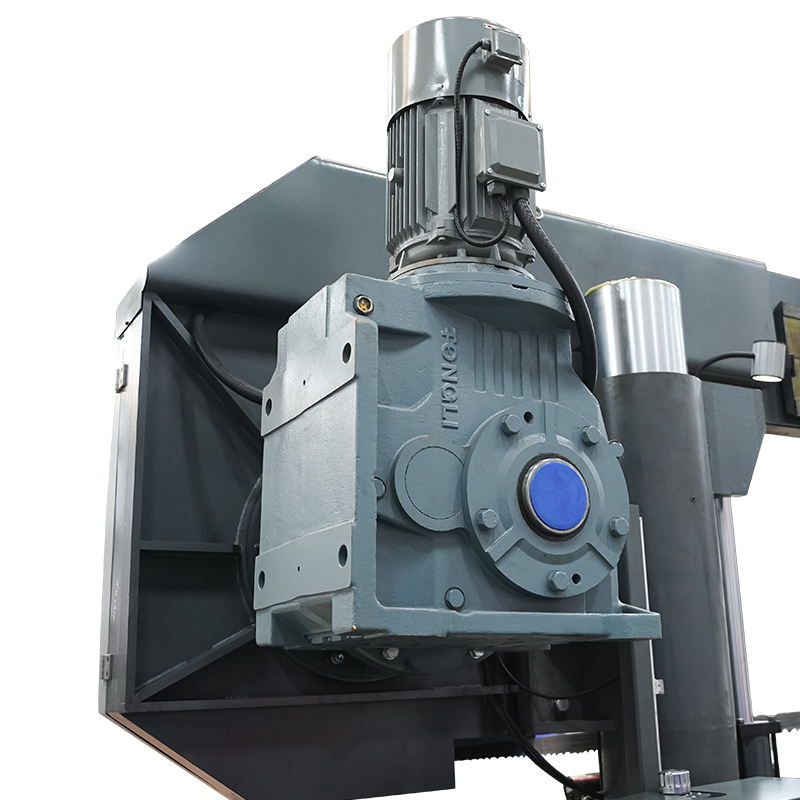

At the core of the H-1310T TEC large structural steel saw is its industry-leading cutting capability, paired with infinitely variable cutting speeds from 20-80m/min and a saw feed speed range of 1-300mm/min. This flexibility allows it to adapt to various metal materials, from carbon steel to high-strength alloy and forged parts, ensuring optimal cutting efficiency and surface finish. The precision gear reducer main drive system delivers stable power transmission, minimizing vibration and extending the service life of the 10900×67×1.6mm saw blade, reducing long-term consumable costs for industrial enterprises.

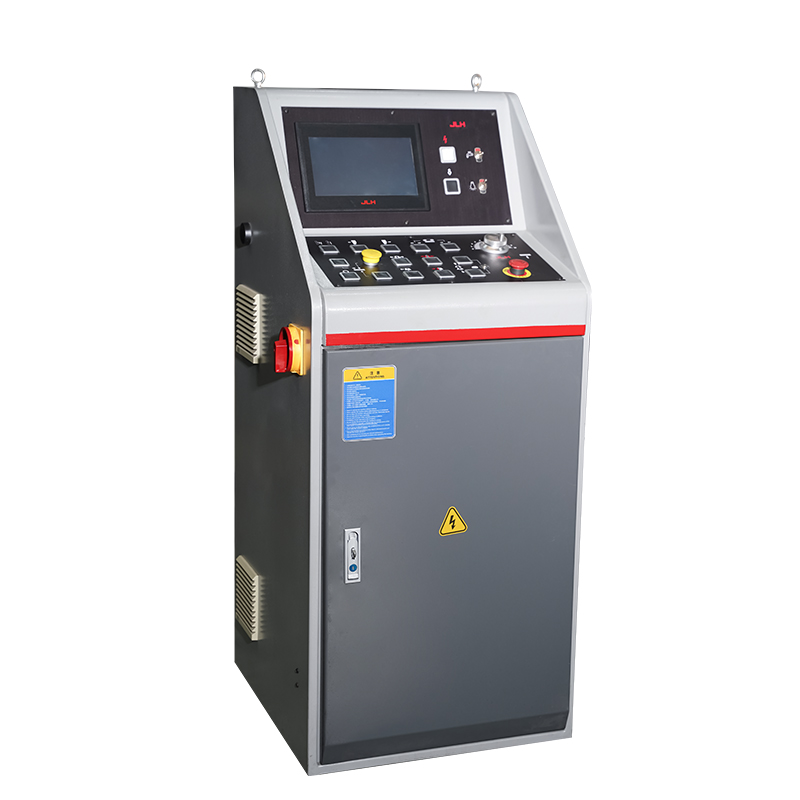

This heavy duty industrial band saw is equipped with the JLH-EHA saw feed system and full intelligent monitoring features, including sawbow anti-collision detection, blade breakage detection, and sawing depth control, all standard to minimize unplanned downtime and maximize operator safety. The integrated HMI + button control interface, paired with a high-performance inverter, enables intuitive operation and precise parameter adjustment. Standard laser line projection and LED working lights further improve cutting accuracy and workplace visibility, even in low-light production environments.

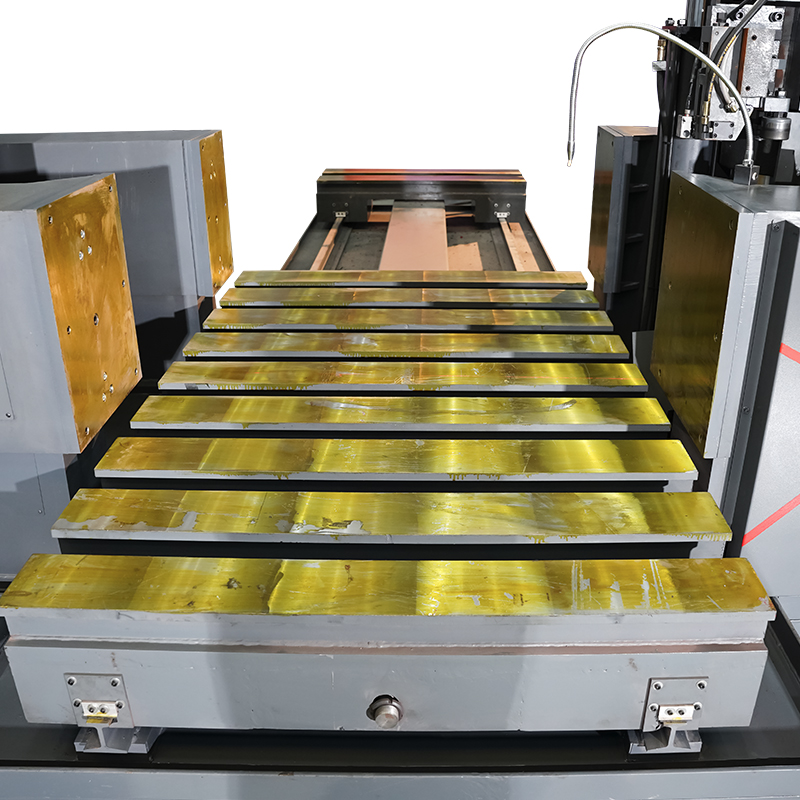

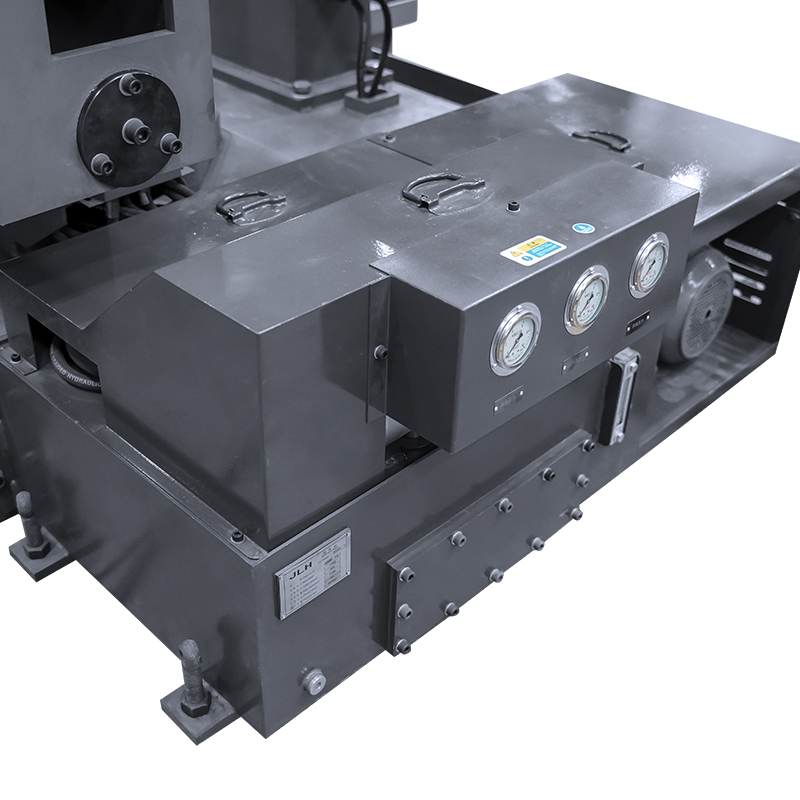

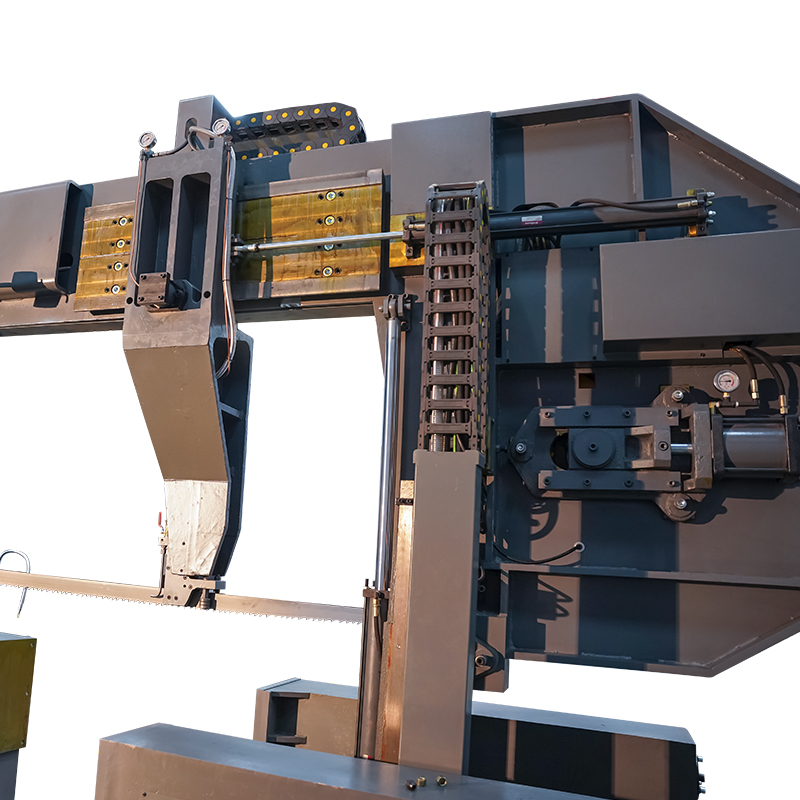

The fully hydraulic system, featuring a 3.75kw hydraulic motor, delivers reliable performance for hydraulic blade tension, saw guide clamping, and table movement, ensuring consistent clamping force and cutting stability. A standard automatic spiral chip conveyor and 40L chip collection box efficiently remove cutting waste, maintaining a clean production environment and reducing manual cleaning time. The hydraulic cooling fan ensures stable system temperature during continuous operation, preventing overheating and extending equipment service life.

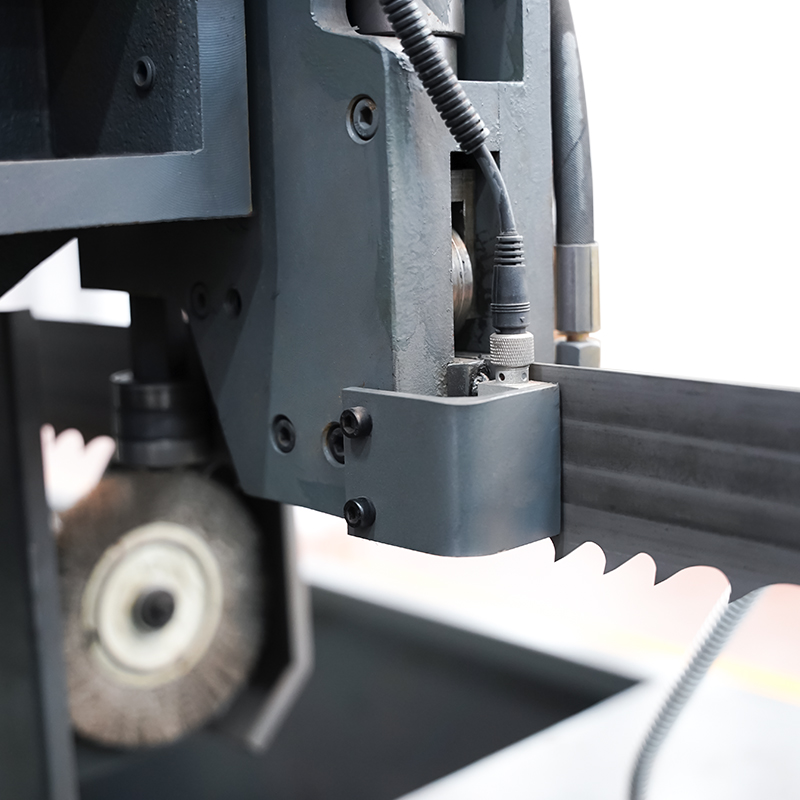

Every H-1310T TEC large format metal cutting saw comes with industry-leading standard features: CE Electrical Safety compliance, permanent magnetic synchronous motor, JLH-EHA saw feed system, sawbow anti-collision detection, blade breakage detection, laser line projection, LED working light, hydraulic blade tension, automatic spiral chip conveyor, hydraulic saw guide clamping, motorized chip brush, hydraulic cooling fan, hydraulic table movement, precision gear reducer main drive, single vise clamping, hydraulic movable guide arm, 40L chip collection box, standard tool kit, and one pre-installed saw blade.
To meet customized production needs, we offer optional configurations including UL Electrical Safety compliance, deviation detector, 70L movable chip collection box, and container transport underframe, allowing you to tailor the machine to your specific operational requirements.
The H-1310T TEC forging cutting band saw is purpose-built for heavy industrial sectors that require large-format metal cutting, including heavy forging manufacturing, large-scale structural steel fabrication, shipbuilding, wind power equipment production, pressure vessel manufacturing, and heavy machinery processing. Its heavy-duty design and high load capacity make it suitable for 24/7 continuous production in the most demanding industrial environments.
This machine supports a maximum round cutting diameter of Ø1000mm, and a maximum square cutting size of 1300×1000mm, with a clamping range of 600-1300mm.
Standard safety features include CE Electrical Safety compliance, sawbow anti-collision detection, blade breakage detection, and sawing depth control, ensuring maximum operator safety and equipment protection.
The H-1310T TEC fully auto band saw has a total weight of approximately 14500kg, a total connected load of 33kw, and a 22kw main saw motor for heavy-duty cutting.
For heavy fabrication businesses and metal processing manufacturers seeking a reliable, high-capacity fully automatic band saw for large structural steel and forging cutting, the H-1310T TEC is your ideal solution. Contact our technical sales team today to request a detailed product catalog, customized configuration quote, or to schedule a virtual demonstration. We are committed to delivering tailored metal cutting solutions that optimize your production efficiency and reduce operational costs.
