Engineered by JLH, a leading provider of industrial metal cutting solutions, this CNC precision circular saw is purpose-built to deliver consistent, burr-free cuts for high-volume production, minimizing material waste and eliminating secondary finishing work. As a top-tier automatic metal cutting saw and small diameter bar cutting saw, it combines advanced servo control, intelligent automation, and robust safety design to maximize production efficiency for precision manufacturing operations.

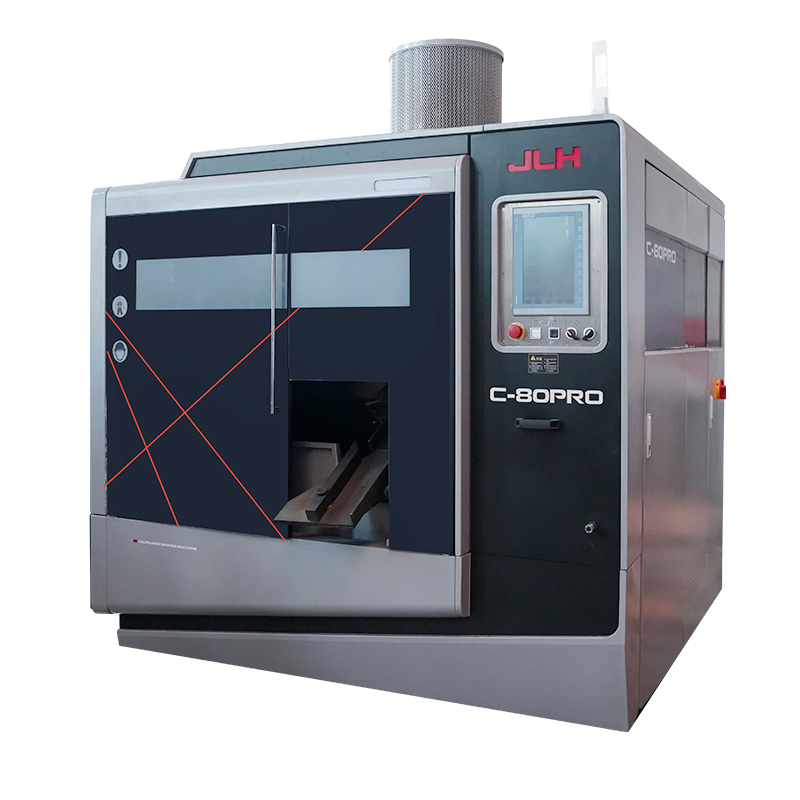

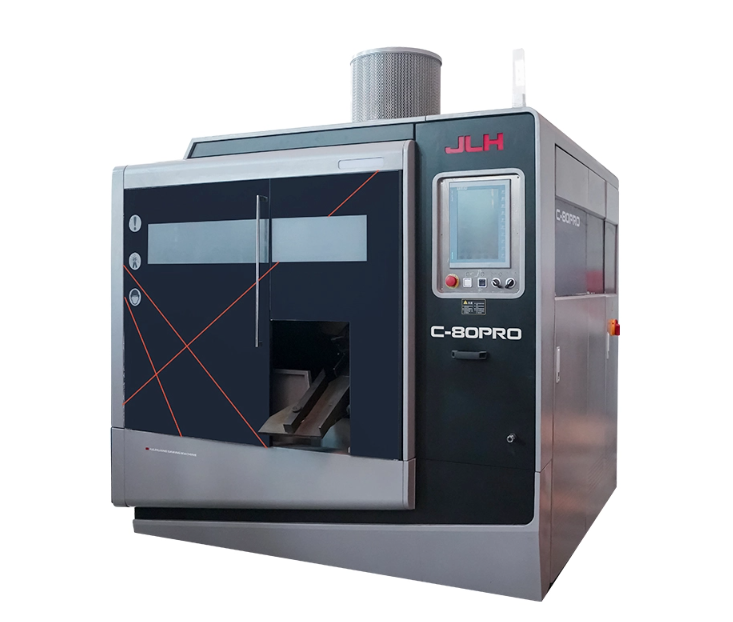

The C-80PRO servo circular saw machine features a 45-degree servo feed system, delivering exceptional cutting accuracy for round materials from Ø10mm to Ø80mm and square materials from 10mm to 60mm. It supports a minimum cut length of just 5mm, making it ideal for small, precision components, with infinitely variable spindle speed (30-160r/min) to adapt to various metal alloys, ensuring clean, consistent cuts for every workpiece.
Equipped with a 0.8M standard servo feed system (supporting up to 9999mm multi-stroke feeding) and a rapid motion speed of 150mm/s, the machine drastically reduces cycle times for high-volume batch production. Its 11kw permanent magnet main motor delivers consistent power for continuous operation, while the top clamp and vise pressure regulator ensure secure holding of both solid bars and hollow pipes, eliminating slippage and improving production yield.

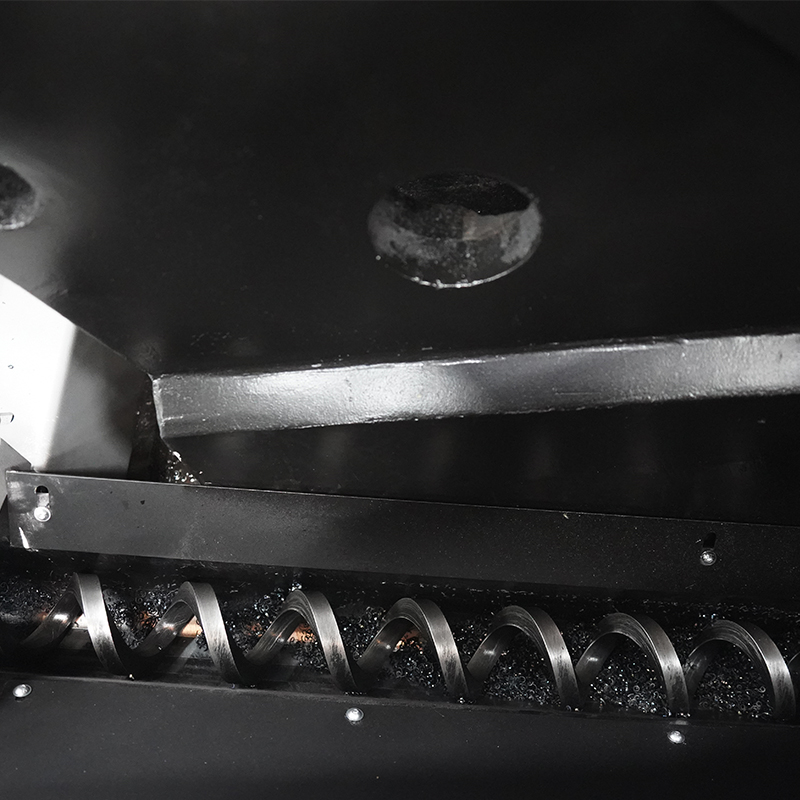

Standard CE-compliant fully enclosed protection, 2L mist spray system, integrated dust collection device, and pipe blast system create a safe, clean working environment. The automatic lubrication system, motorized chip brush, and spiral automatic chip conveyor reduce daily maintenance requirements, extend saw blade service life, and minimize unplanned downtime for continuous production.
CE standard fully enclosed protection, 45-degree servo feed system, CE electrical safety compliance, permanent magnet main drive motor, HMI + button control, frequency inverter, 2L mist spray system, dust collection device, pipe blast device, cabinet air conditioner, LED working light, spiral automatic chip conveyor, vise pressure regulator, motorized chip brush, top clamp, hydraulic cooling fan, auto lubrication device, simple roller work table, 0.8M servo feed system, 70L sawdust collection cart, standard tool kit, 1pc matched circular saw blade.
JLH-EHA feed system, Saw Master system, UL electrical safety compliance, 1.5M power output material table, 2M servo power output material table, third vise, 5.5m inclined powered magazine (round/rectangular material), 5.5m belt infeed magazine (round material), container transport underframe.
The C-80PRO CNC precision circular saw is designed for precision manufacturing sectors, including automotive component production, fastener and standard part manufacturing, precision hardware processing, electronic component fabrication, hydraulic and pneumatic component production, and bicycle accessory manufacturing. It excels at high-volume, high-precision cutting of small-diameter metal bars, rods, and pipes for mass component production.
It supports a minimum cut length of just 5mm, with a shortest remnant length of 65mm for automatic operation and 30mm for individual cuts, minimizing material waste.
The machine supports 800mm single-stroke feeding, with a maximum multi-stroke feeding length of 9999mm, accommodating long bar materials for continuous batch production.
Yes, it is equipped with a standard pipe blast device and adjustable vise pressure regulator, making it suitable for cutting both solid bars and hollow pipes with consistent accuracy.
Optional upgrades include powered material tables, third vise, and various automated material magazines, enabling fully unmanned, continuous production for high-volume operations.
For precision metal production workshops and component manufacturing enterprises seeking a high-efficiency, high-accuracy automated cutting solution, the C-80PRO servo circular saw machine is the ideal choice to elevate your production capacity and product quality. Contact us today to request a custom quote, detailed technical documentation, or a tailored automation solution for your specific production needs.
