Purpose-built for industrial metal processing enterprises and heavy fabrication operations, this industrial metal saw delivers consistent, high-quality cuts across a wide range of metal profiles, with industry-leading cutting capacity and intelligent CNC control. Capable of handling round bar up to Ø420mm at 90°, and flat stock up to 610×420mm at 90°, it supports flexible bevel cutting at 45° and 60°, making it the ideal solution for demanding, large-scale metal cutting workflows. With a total connected load of 5kw and robust construction weighing approximately 1650kg, it ensures long-term stable operation even in 24/7 industrial production environments.
This bevel cutting saw offers unmatched cutting versatility, with a 90° round bar cutting capacity of Ø420mm, 45° capacity of Ø400mm, and 60° capacity of Ø280mm. Its infinitely variable cutting speed (20-80m/min) and adjustable saw feed speed (1-300mm/min) adapt seamlessly to carbon steel, stainless steel, alloy steel, and other metal materials, delivering burr-free, precision cuts while extending saw blade service life. The minimum cutting size of 10×10mm ensures flexibility for both large structural profiles and small supplementary components.

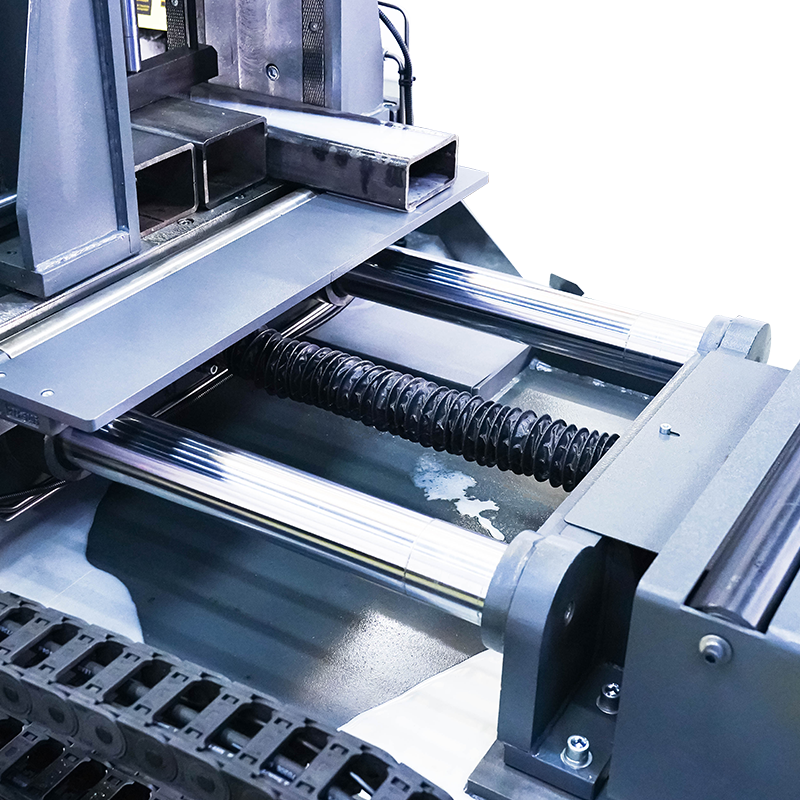

Equipped with full automatic angle sawing setting and hydraulic feeding system, this metal fabrication equipment supports a single-stroke automatic feed length of 500mm and multi-stroke feed up to 9999mm, drastically reducing manual intervention and boosting production efficiency for batch processing. The integrated blade breakage detector minimizes unplanned downtime, while the CE-compliant safety system protects operators and equipment during continuous operation.
Built with a heavy-duty steel frame and precision-engineered components, the saw maintains exceptional rigidity and cutting accuracy over years of heavy use. The hydraulic cooling fan ensures stable hydraulic system performance during extended operation, while the motorized chip brush keeps the cutting area clean, reducing blade wear and maintenance frequency.
All units come standard with: CE standard safety protection sheet metal, single valve feed control, CE electrical safety compliance, LED working light, blade breakage detector, inverter, automatic angle sawing setting, vise pressure regulator, motorized chip brush, hydraulic cooling fan, hydraulic feeding system, single vise clamping, manual movable guide arm, and one piece saw blade.
Customize your saw with optional upgrades: double valve feed control, UL electrical safety compliance, laser line projection, deviation detector, top clamp, 1L mist spray device, servo feeding system, and transport underframe for containers. Tool box (wire brush, levelling pads, spare paint) is non-optional.

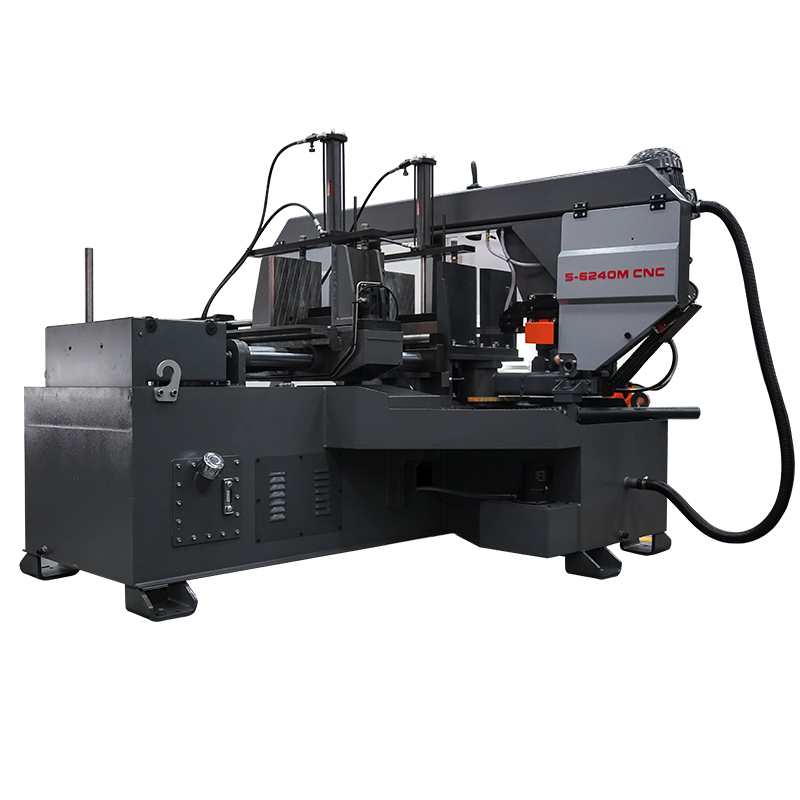

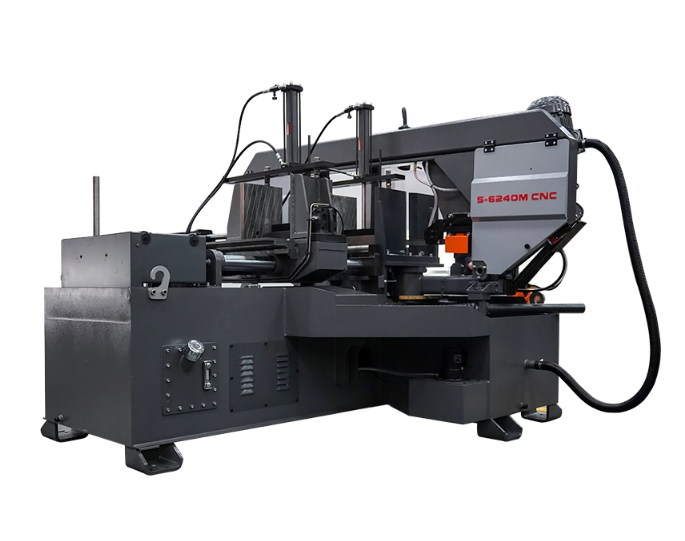

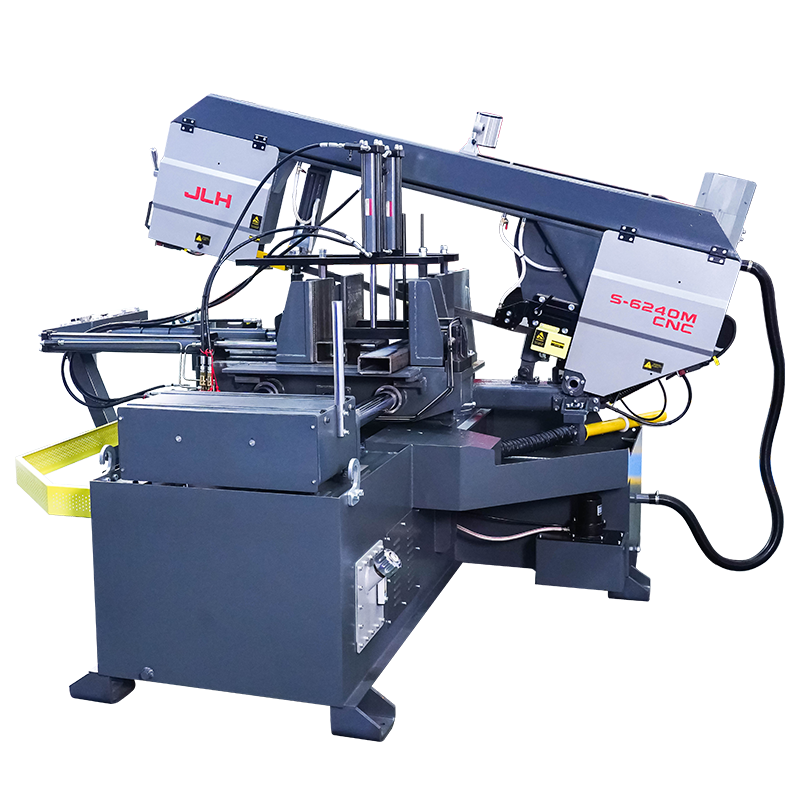

The S-6240M CNC Band Saw is the preferred cutting solution for:
Structural steel fabrication and heavy engineering
Bridge and infrastructure construction
Shipbuilding and offshore equipment manufacturing
Oil and gas industry component processing
Large-scale metal stockist and service centers
Mining and heavy machinery production
At 90°, the saw handles round bar up to Ø420mm and flat stock up to 610×420mm. At 45°, it cuts round bar up to Ø400mm, and at 60°, up to Ø280mm round bar.
The saw supports a single-stroke automatic feed of 500mm, with unlimited multi-stroke feed up to 9999mm for long-length material batch processing.
Yes, it comes standard with CE-compliant safety protection and electrical systems, with optional UL electrical safety certification available to meet global industrial site requirements.
For industrial metal fabrication operations seeking a high-performance, reliable CNC angle cutting band saw, the S-6240M CNC model delivers unmatched precision, capacity, and efficiency for large-scale production. Contact our technical sales team today to request a detailed quote, customize your optional configurations, and schedule a virtual demonstration to see its cutting performance firsthand.
