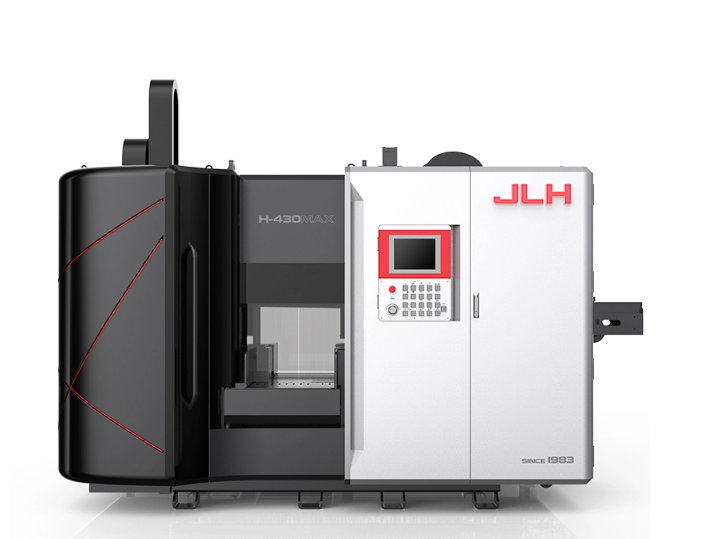

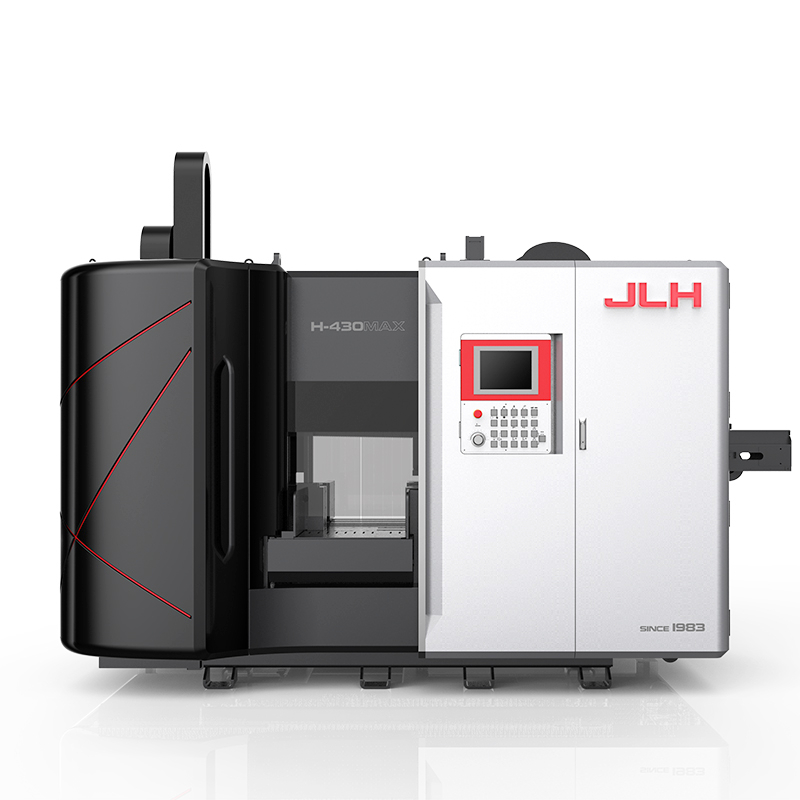

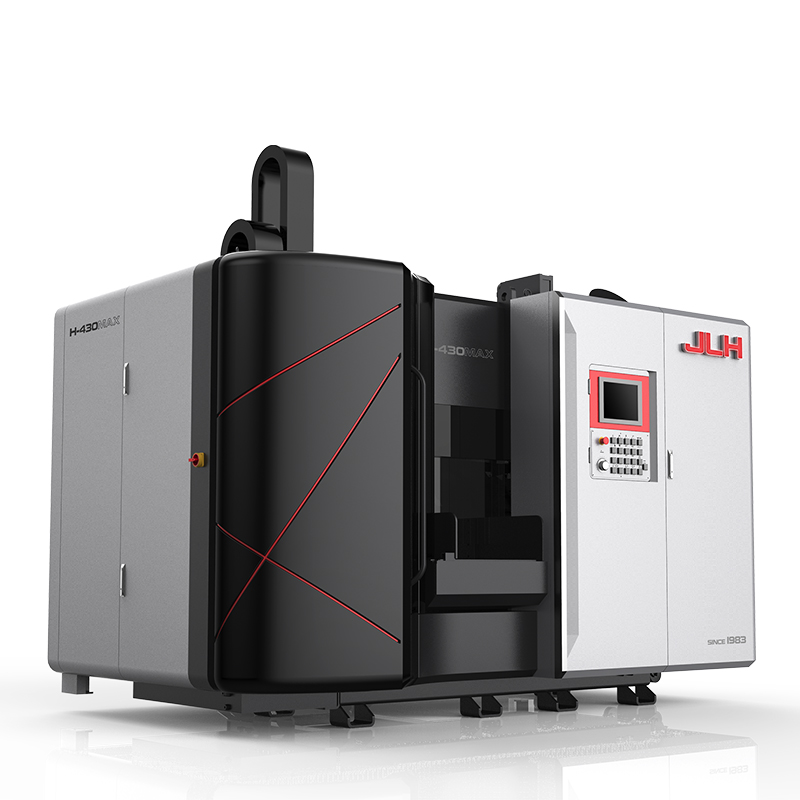

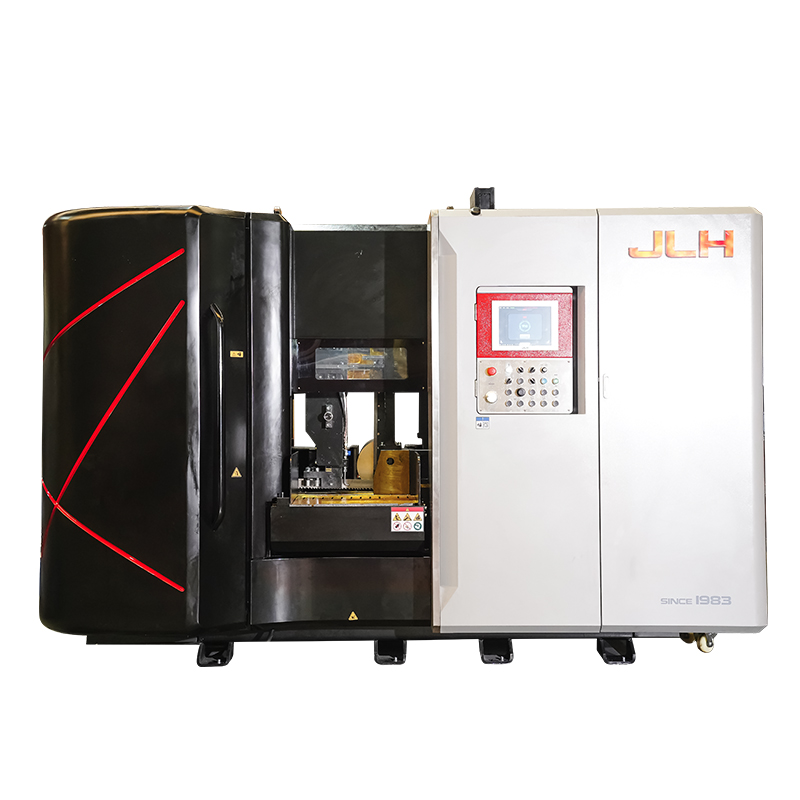

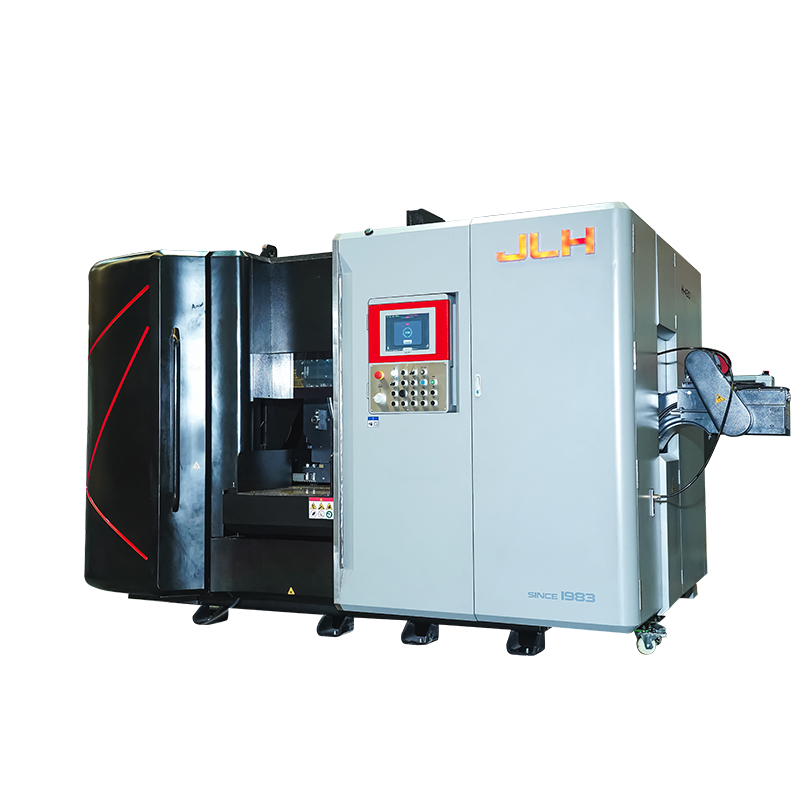

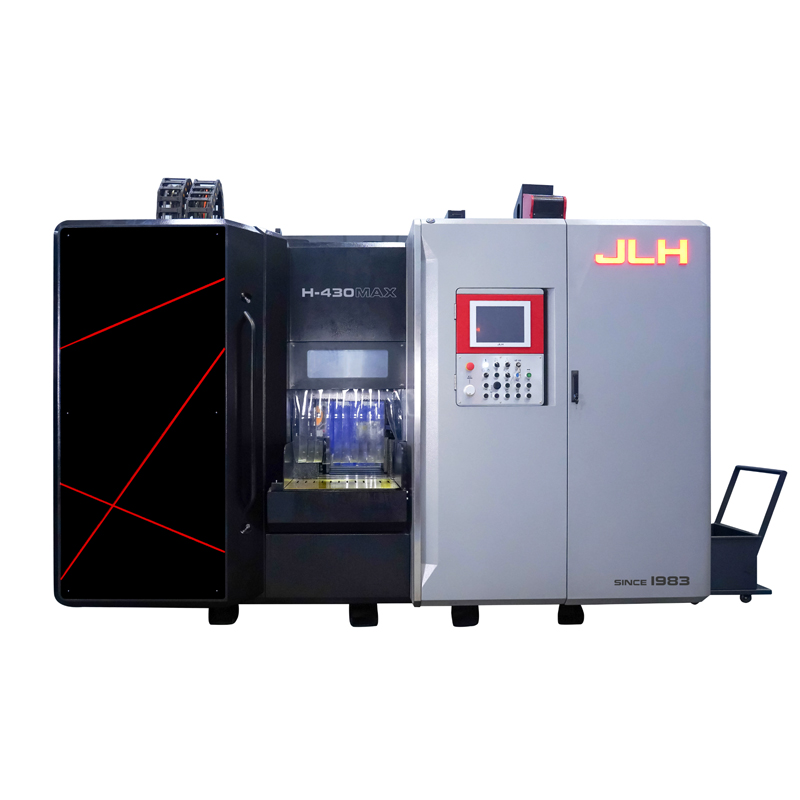

H-430MAX Band Saw for Solid Bar Cutting

As a top-tier CNC metal band saw, it combines robust structural design, intelligent control systems, and adjustable cutting performance to meet the diverse needs of metal processing workshops, contract manufacturing facilities, and mechanical component production enterprises. This industrial cutting saw delivers consistent cutting accuracy, high production efficiency, and long-term operational reliability, making it a core piece of heavy fabrication equipment for small to medium batch metal cutting workflows.

Key Features & Core Benefits

Unrivaled Cutting Precision & Wide Material Adaptability

This precision metal saw offers an industry-leading cutting range, supporting round bars up to Ø430mm and square materials up to 430×430mm, with a minimum cutting size of 30×30mm and a clamping range of 30-430mm. It can achieve a shortest cut-off piece length of 25mm and a shortest remnant length of 40mm for individual cuts, minimizing material waste and maximizing material utilization. The infinitely variable cutting speed (30-150m/min) and feed speed (1-300mm/min) allow for precise adjustment to suit carbon steel, stainless steel, alloy steel, and other common metal materials, ensuring smooth cutting surfaces and reducing secondary processing costs.

High-Efficiency Drive & Low Energy Consumption

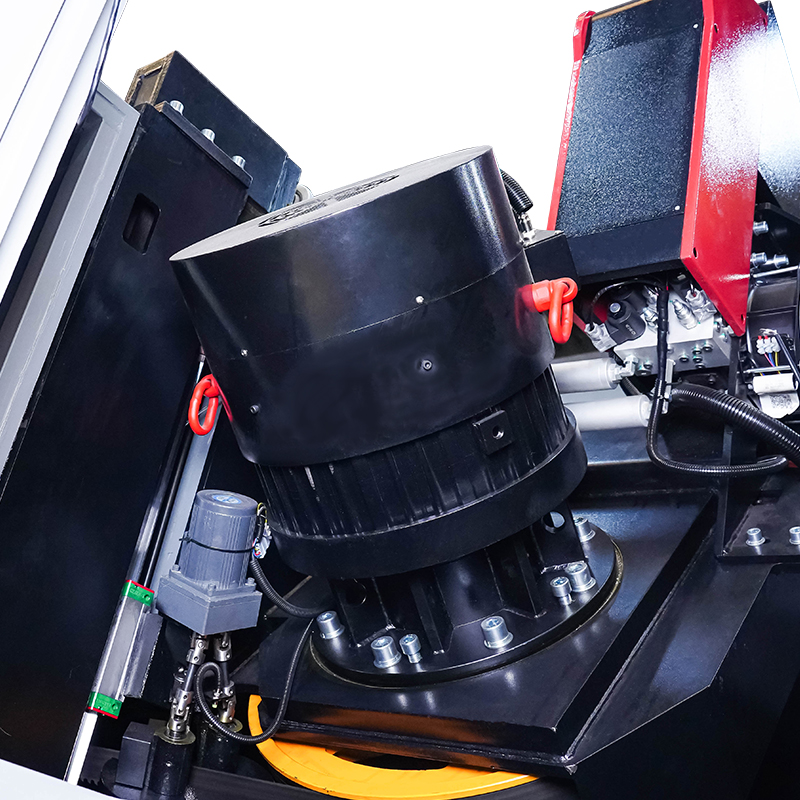

Powered by an 11kw high-performance saw motor with a total connected load of 17kw, this solid bar cutting band saw adopts a permanent magnetic synchronous motor and main drive precision gear reducer, delivering strong cutting power while reducing energy loss. The standard JLH-EHA downfeed system ensures stable and uniform saw feed, improving cutting efficiency by up to 30% compared to conventional band saws, while extending the service life of saw blades.

Full-Process Safety & Intelligent Protection

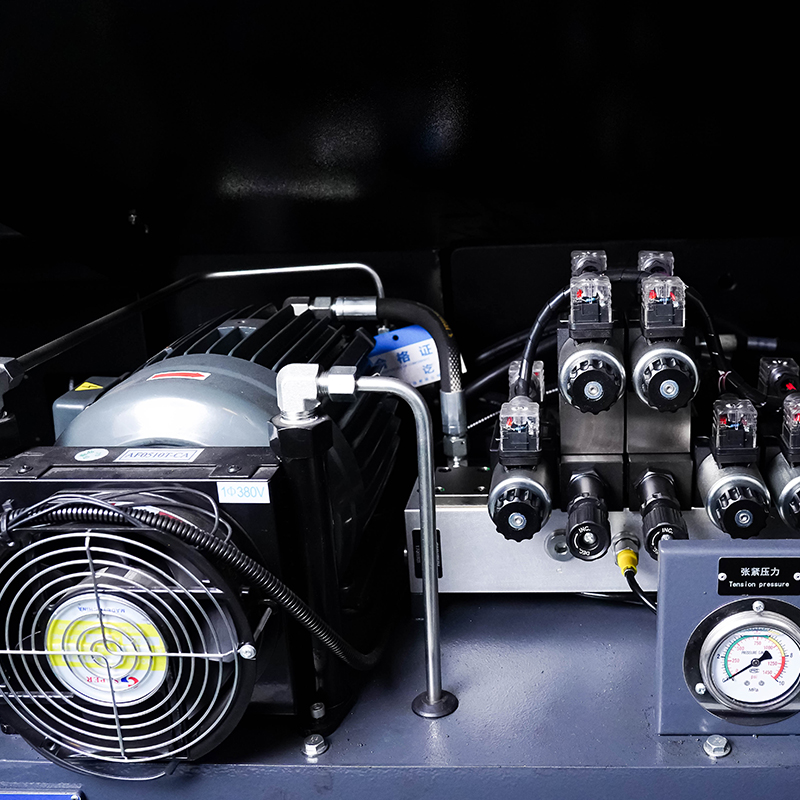

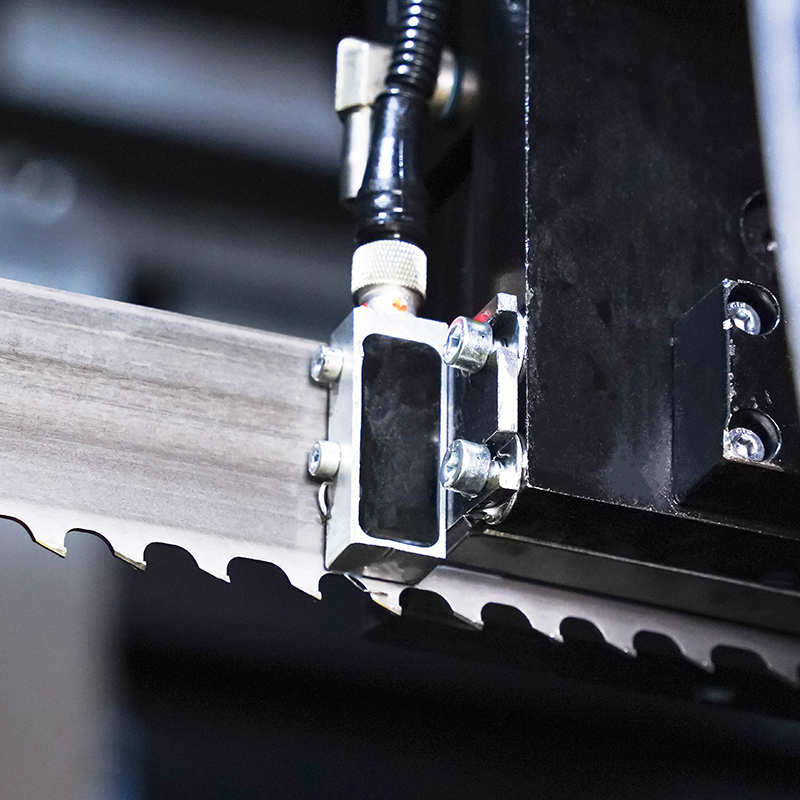

The saw comes standard with CE-compliant fully enclosed protection, sawbow anti-collision detection, blade breakage detection, and cutting deviation detector, providing 360° safety protection for operators and equipment. The hydraulic blade tension system, automatic lubrication device, and hydraulic cooling fan ensure stable long-term operation, reducing unplanned downtime and lowering maintenance costs for production facilities.

Standard & Optional Configurations

Standard Inclusive Configurations

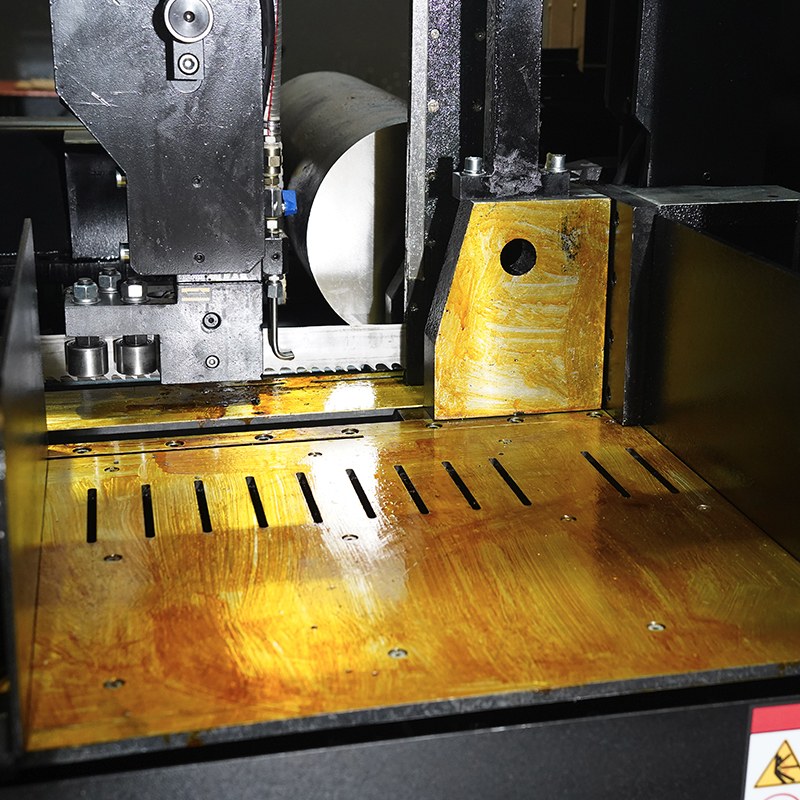

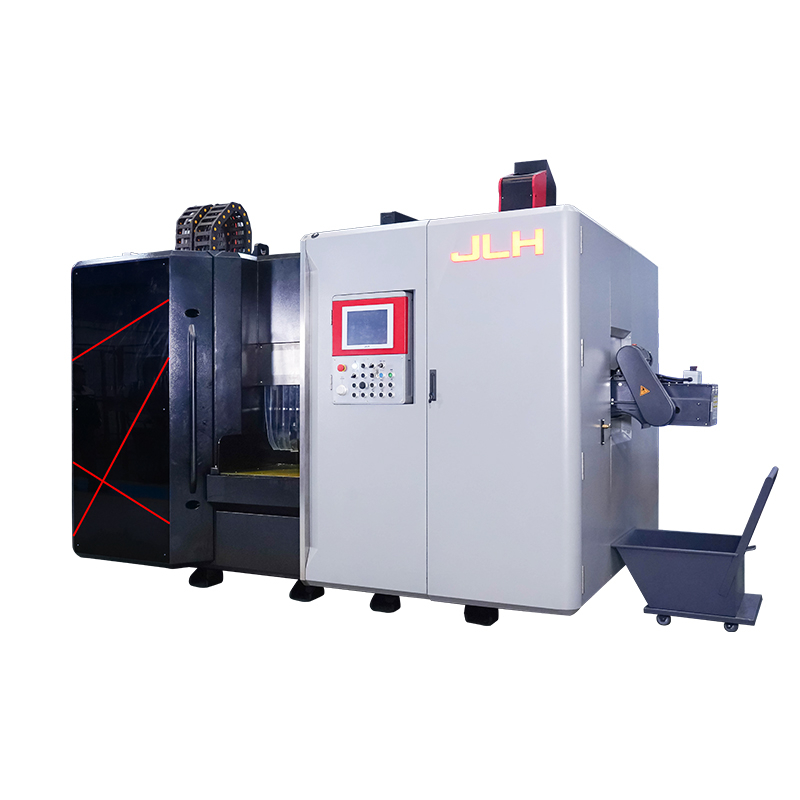

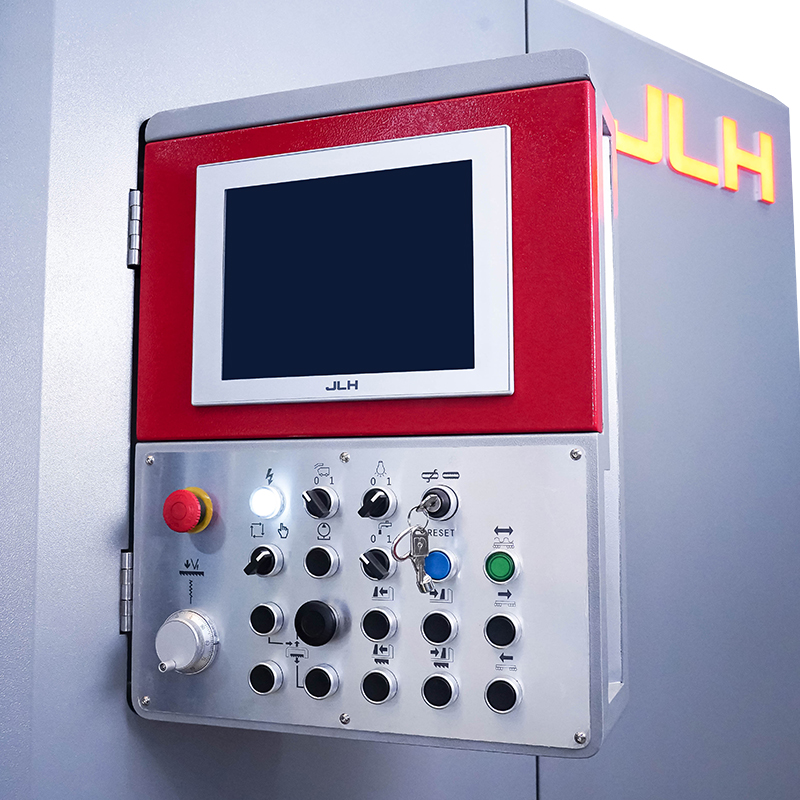

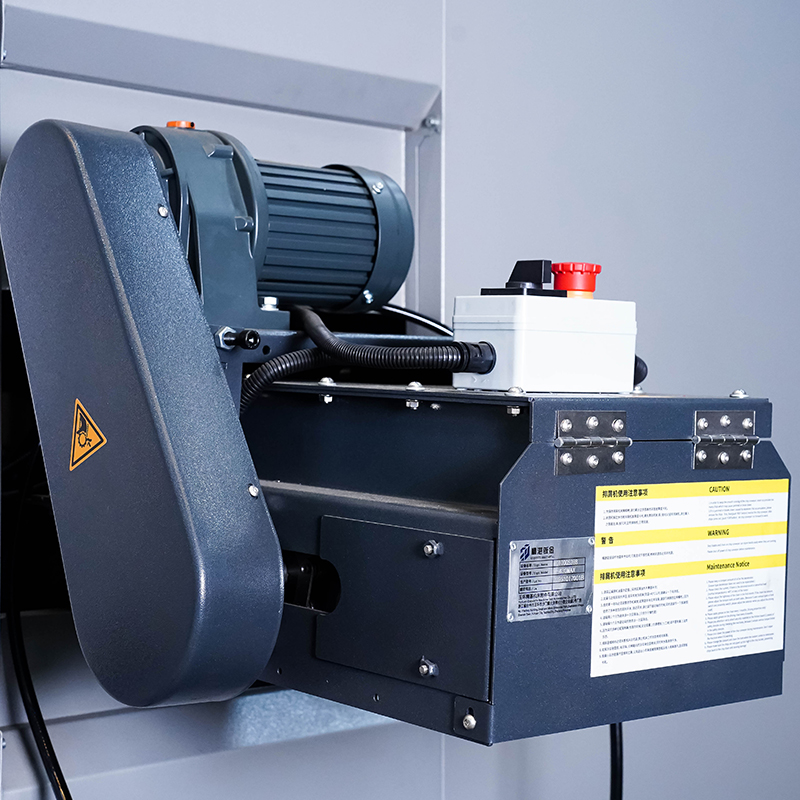

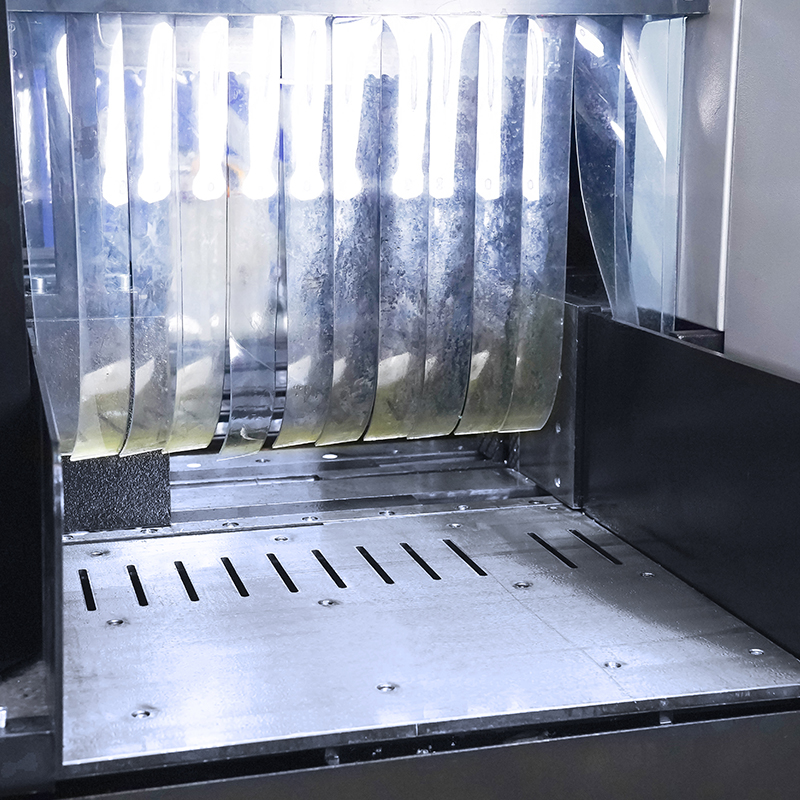

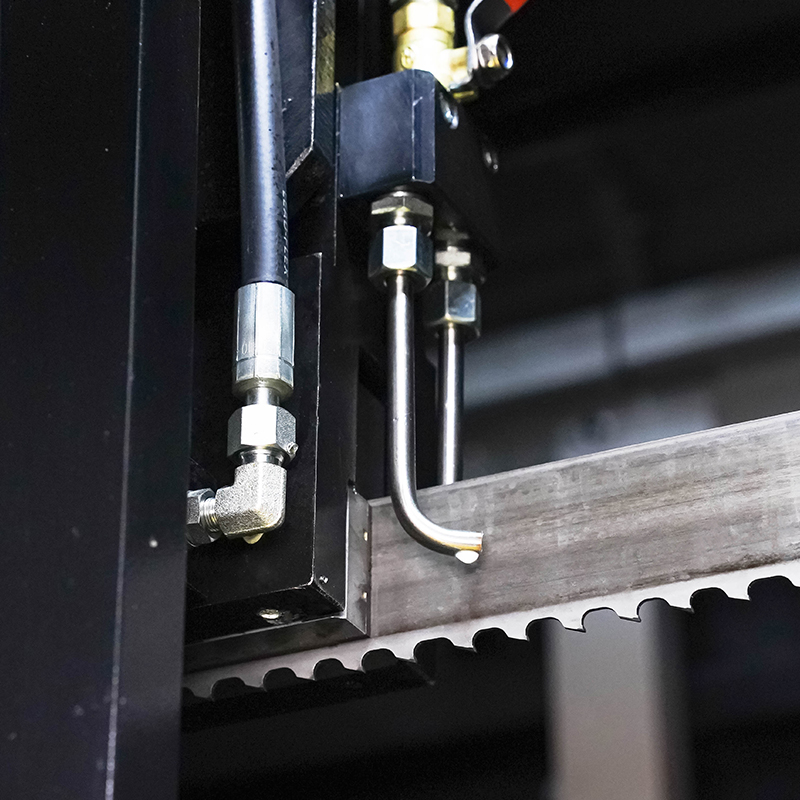

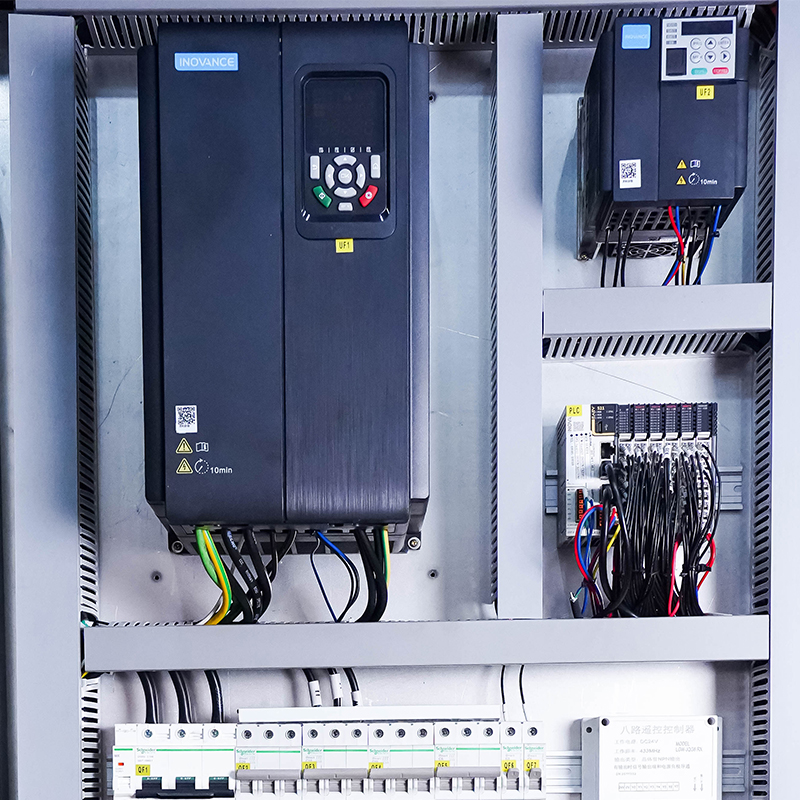

Standard configurations include CE standard fully enclosed protection, JLH-EHA downfeed system, Saw Master control system, permanent magnetic synchronous motor, sawbow anti-collision detection, LED working light, blade breakage detection, sawing depth control, HMI+buttons operation, inverter, deviation detector, hydraulic blade tension, belt-type automatic chip conveyor, hydraulic blade guide clamping, vise pressure regulator, motorized chip brush, hydraulic cooling fan, auto lubrication device, roller type work table, hydraulic feeding, split vise clamping, main drive precision gear reducer, 40L chip collection box, standard tool kit, and one piece saw blade.

Customizable Optional Configurations

Optional upgrades include UL electrical safety certification, laser line projection, 0-start first cut option, servo feeding system, 70L movable chip collection box, and container transport underframe, allowing for full customization to match specific production requirements.

Industrial Applications

This industrial cutting saw is ideal for a wide range of metal processing scenarios, including general mechanical component manufacturing, automotive parts production, mold processing, hardware fabrication, steel structure engineering, and small to medium batch solid bar cutting operations. It is the preferred cutting solution for metal fabrication workshops, contract manufacturing facilities, and mechanical production enterprises that require high-precision, high-efficiency metal cutting.

FAQs

What is the maximum cutting capacity of the H-430MAX precision metal saw?

It delivers a maximum cutting capacity of Ø430mm for round bars and 430×430mm for square materials, with a minimum cutting size of 30×30mm to accommodate a wide range of workpiece dimensions.

Does this CNC metal band saw support automatic batch cutting?

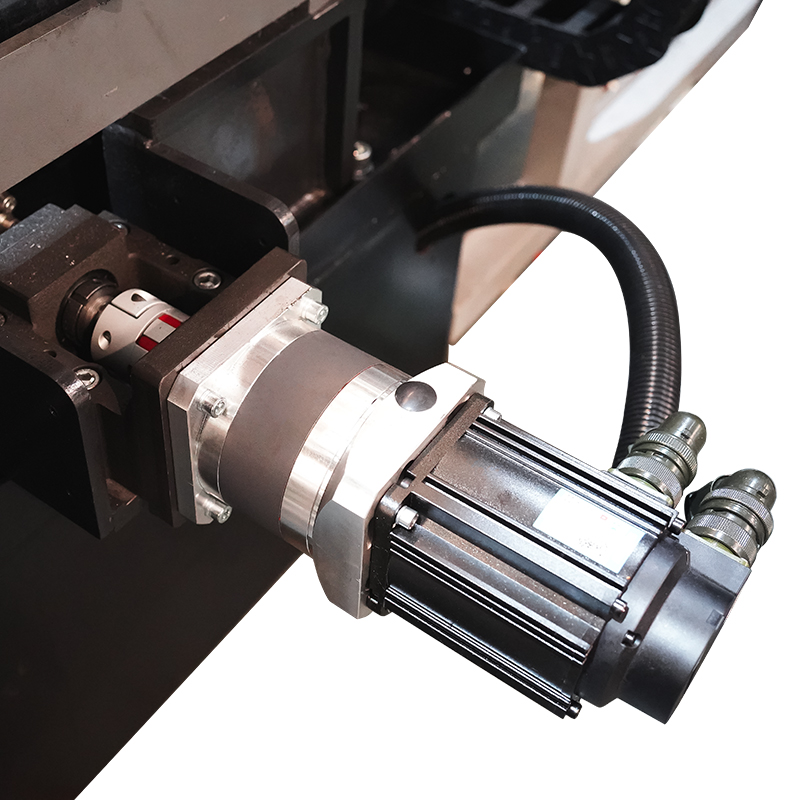

Yes, it comes standard with a hydraulic feeding system, offering a 500mm single-stroke automatic feed length and a multi-stroke feed length of up to 9999mm, enabling fully automatic continuous batch cutting. Servo feeding is available as an optional upgrade for higher feeding precision.

What safety features are included as standard?

The saw is equipped with CE-standard fully enclosed protection, sawbow anti-collision detection, blade breakage detection, and cutting deviation detector as standard, ensuring full safety during operation and reducing operational risks.

If you are looking for a reliable, high-precision solid bar cutting band saw to optimize your metal cutting workflow, the H-430MAX is your ideal choice. Contact us today to get a detailed technical solution, customized configuration quote, and professional one-on-one support from our industrial equipment experts. We are committed to delivering cutting-edge cutting solutions that boost your production efficiency and lower your operational costs.
