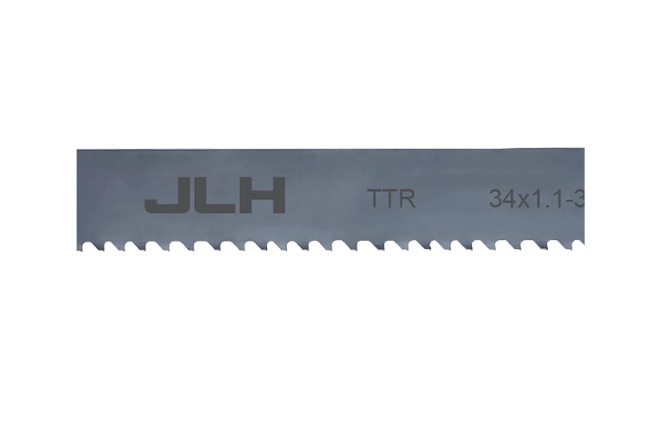

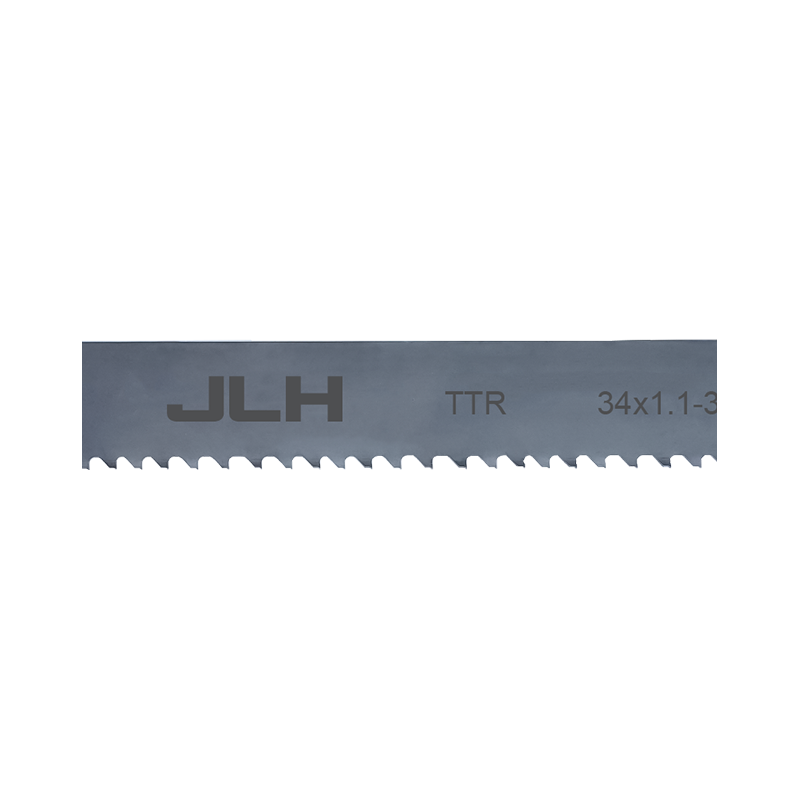

The JLH TTR bi-metal band saw blade is a premium M42 bi-metal raised tooth cutting solution, engineered by JLH for industrial profile cutting and challenging metal processing applications. Designed for metal fabrication professionals, manufacturing enterprises, and industrial cutting operators, this M42 raised tooth band saw blade addresses common pain points in unstable cutting conditions, including poor chip evacuation, frequent tooth chipping, and short blade service life. Its innovative TTR raised tooth design delivers exceptional cutting stability and durability, making it the ideal choice for variable material profiles, bundle cutting, and heavy-duty industrial metal processing tasks.
The defining feature of the profile cutting bi-metal saw blade is its proprietary raised tooth (TTR) geometry, which is optimized for enhanced impact resistance and superior chip evacuation. This design minimizes stress on the tooth tip during cutting of variable cross-sections and bundled materials, reducing the risk of tooth chipping and breakage. With a 4-star chipping resistance rating and 3-star wear resistance rating, this blade outperforms standard bi-metal blades in unstable cutting environments, extending service life and reducing unplanned downtime for industrial operations.
Crafted with high-grade M42 high-speed steel tooth tips and a tough, flexible spring steel backing, the impact resistant industrial saw blade balances exceptional hardness with superior fracture resistance. The M42 tooth material delivers outstanding wear resistance even when cutting hard ferrous metals, alloys, and structural steel, while the spring steel body absorbs vibration and prevents blade snapping in high-stress cutting scenarios. This dual-material construction ensures consistent cutting performance across thousands of cuts, reducing consumable costs for industrial businesses.
Unlike standard bi-metal blades that struggle with variable material profiles and unstable cutting conditions, the JLH TTR saw blade is purpose-built to maintain precision and stability in these demanding environments. Its tooth geometry is engineered to reduce cutting resistance, improve surface finish on cut parts, and deliver consistent cutting accuracy, even when processing bundled tubes, irregular profiles, and mixed material batches.
The chip evacuation band saw blade is available in a comprehensive range of standard width and thickness combinations to fit most industrial band saw machines, including: 27×0.9mm, 34×1.1mm, 41×1.3mm, 54×1.6mm, and 67×1.6mm. All standard sizes are manufactured to strict industrial tolerances, ensuring consistent fit and performance in heavy-duty cutting operations.
To match specific material and cutting requirements, the M42 bi-metal band saw blade offers multiple teeth per inch (TPI) options across its size range: 4/6 TPI, 3/4 TPI, and 2/3 TPI. 27×0.9mm, 34×1.1mm, and 41×1.3mm sizes support 4/6 and 3/4 TPI; 54×1.6mm supports all three TPI options; 67×1.6mm is available in 3/4 TPI for heavy-duty profile cutting.
The JLH TTR bi-metal band saw blade for profiles is ideal for a wide range of industrial metal processing applications, including: structural steel and profile fabrication, automotive component manufacturing, metal service center bundle cutting, pipe and tube processing, mechanical engineering parts production, and cutting of difficult-to-process variable cross-section materials. It performs exceptionally well with ferrous metals, structural steel, stainless steel, and non-ferrous alloys, making it a versatile consumable for all industrial metal cutting operations.
This blade features a premium bi-metal construction, with M42 high-speed steel tooth tips for exceptional wear resistance and a high-toughness spring steel backing for vibration absorption and fracture resistance.
The TTR bi-metal saw blade offers 4/6 TPI, 3/4 TPI, and 2/3 TPI options, with availability tailored to each blade width to match specific cutting needs.
The raised tooth design delivers enhanced impact resistance, superior chip evacuation, and improved cutting stability in unstable conditions or when cutting variable material profiles, reducing tooth chipping and extending blade life.
The 54×1.6mm size is the most versatile for heavy-duty use, supporting all available TPI options and delivering optimal performance for large profile and bundle cutting applications.
Looking to reduce your cutting consumable costs and improve cutting stability in challenging industrial applications? Contact our industrial cutting specialists today to inquire about the JLH TTR bi-metal band saw blade, request a custom size recommendation, or get a tailored quote for your production needs. Our team is here to help you select the perfect blade configuration to maximize cutting efficiency and minimize operational downtime.
