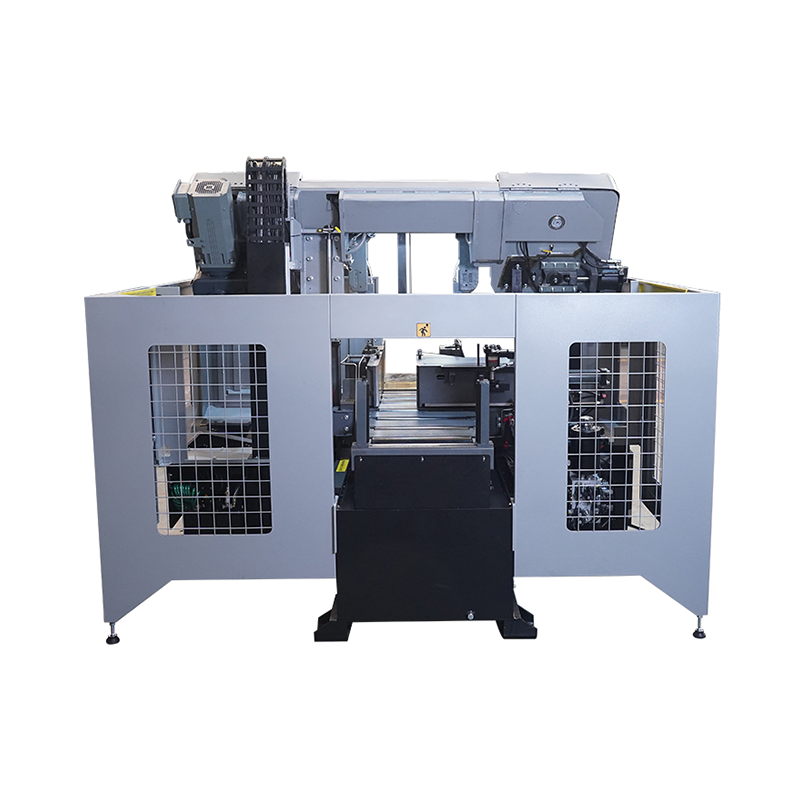

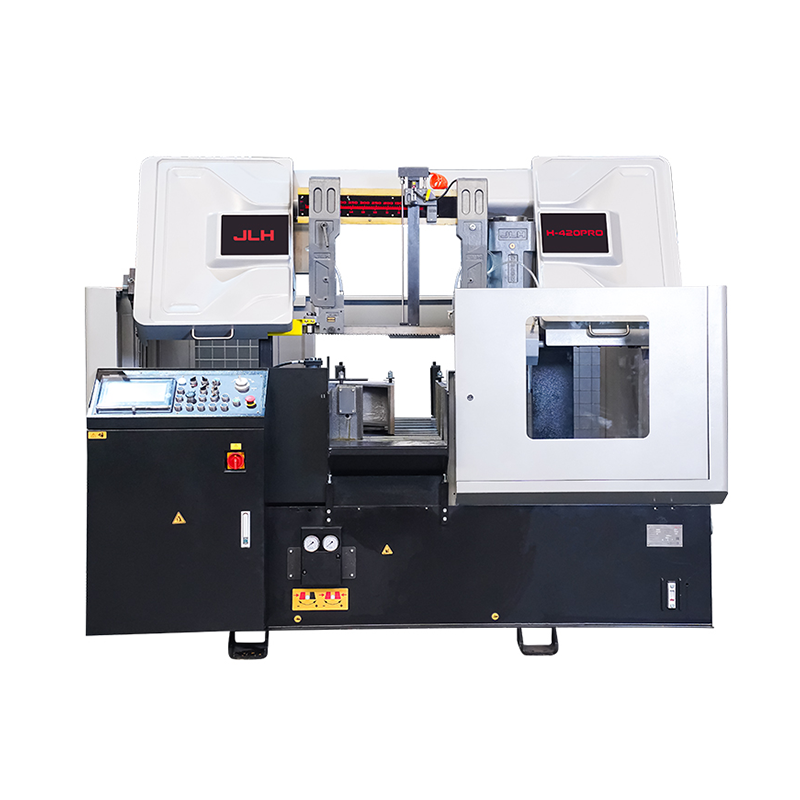

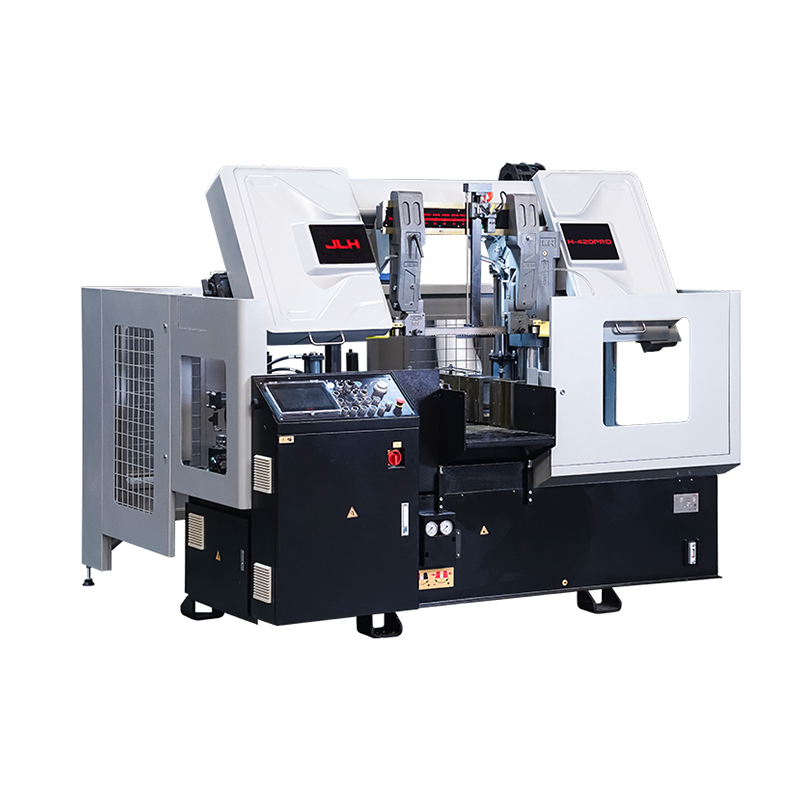

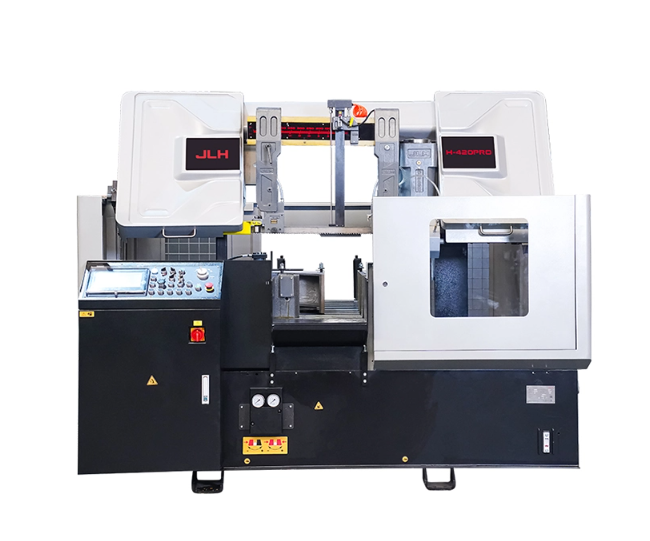

The H-420PROCE automatic band saw is a column type heavy-duty fully automatic band saw, engineered by JLH (a trusted industrial cutting equipment manufacturer with heritage since 1988) for high-efficiency bundle cutting and precision metal processing. Designed exclusively for industrial manufacturing enterprises and metal fabrication professionals, this machine delivers consistent, high-volume cutting performance while minimizing operational costs, making it a top-tier solution for modern metal processing lines. Equipped with the cutting-edge SawMaster V2.1 operating system and a full suite of safety and precision features, the fully automatic bundle cutting band saw balances user-friendly operation with industrial-grade durability, even for first-time operators in high-demand production environments.
At the core of the H-420PROCE industrial metal band saw is the proprietary SawMaster V2.1 operating system, paired with adaptive AI intelligence. This system delivers cutting efficiency and blade cost performance comparable to a 10+ year experienced application engineer, boosting overall cutting efficiency by over 30% and extending blade service life by more than 30% compared to previous-generation systems. This directly reduces long-term operational and consumable costs for industrial operators.
This column type heavy-duty band saw offers an industry-leading cutting range, supporting round materials up to Ø420mm, square materials up to 420×420mm, and bundle cutting with a range of 160×130mm to 260×160mm. It achieves a minimum cut-off length of 5mm, with infinitely variable cutting speeds from 20-80m/min and feed speeds of 1-300mm/min. The 7.5kW permanent magnetic synchronous main motor, paired with a precision gear reducer, delivers stable power for cutting a wide range of metals, including difficult-to-cut alloys.

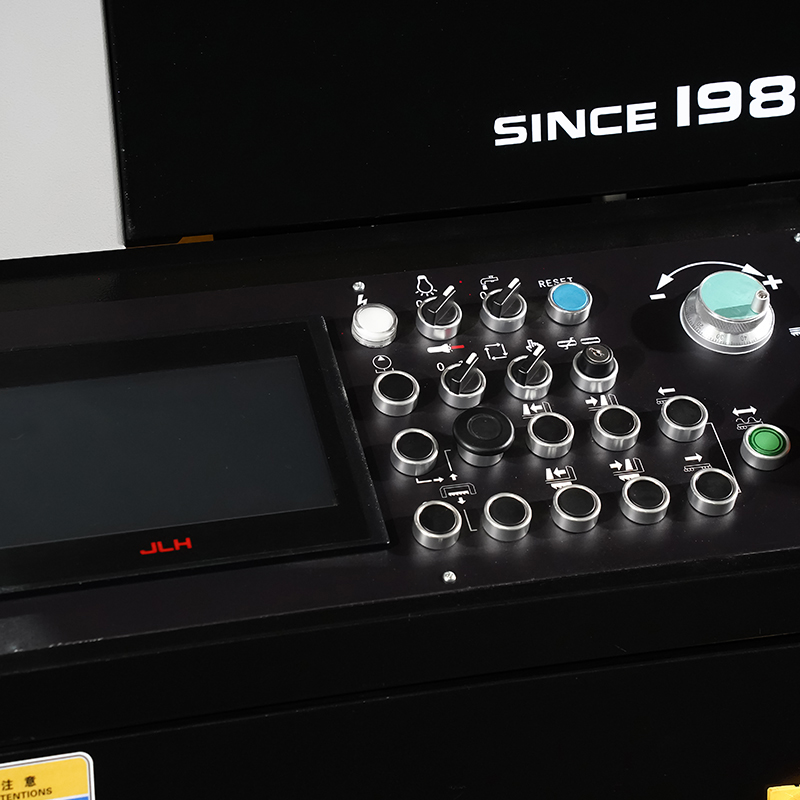

Compliant with CE electrical safety and full CE safety protection standards, the high production metal band saw includes standard safety features such as sawbow anti-collision detection, blade breakage detection, and a hydraulic blade tension system. The integrated HMI + buttons control interface simplifies operation, while the standard spiral automatic chip conveyor and motorized chip brush maintain a clean working environment and extend component service life.
Every H-420PROCE automatic band saw for bundle cutting comes factory-equipped with: CE safety protection, SawMaster V2.1 operating system, CE electrical safety compliance, permanent magnetic synchronous motor, sawbow anti-collision detection, LED working light, blade breakage detection, HMI + buttons control, inverter, hydraulic blade tension, vise pressure differential valves, spiral automatic chip conveyor, vise pressure regulator, motorized chip brush, hydraulic cooling fan, roller type work table, split vise clamping, manual movable guide arm, 40L chip collection box, standard tool kit, and one pre-installed saw blade.
To tailor the machine to specific production needs, industrial businesses can select optional upgrades including: UL electrical safety compliance, laser line projection, sawing depth control, deviation detector, hydraulic blade guide clamping, top clamp, auto lubrication device, servo-driven material feeding, hydraulic movable guide arm, 70L movable chip collection box, and container transport underframe.
The AI cutting saw is purpose-built for a wide range of industrial metal processing scenarios, including: structural steel manufacturing, automotive component production, metal stock distribution and service centers, general mechanical engineering, pipe and profile fabrication, and high-volume bundle cutting of steel bars, tubes, and profiles. Its adaptive AI control and heavy-duty build make it suitable for both high-volume mass production and small-batch precision cutting of various ferrous and non-ferrous metals.
The machine supports a maximum round cutting capacity of Ø420mm, and a maximum square cutting capacity of 420×420mm, with a dedicated bundle cutting range of 160×130mm to 260×160mm.
The H-420PROCE fully automatic band saw can achieve a minimum cut-off piece length of 5mm, with a shortest remnant length of 20mm for individual cuts.
Yes, a spiral automatic chip conveyor is a standard factory configuration, paired with a motorized chip brush for optimal chip management.
Yes, its stable power delivery and precision feed control ensure reliable performance when cutting a wide range of difficult-to-cut alloys and materials.
Ready to elevate your metal cutting efficiency and reduce operational costs? Contact our industrial cutting specialists today to inquire about the H-420PROCE automatic band saw, download the detailed product flyer, or request a customized cutting solution tailored to your production needs. Our team is here to help you select the right configuration to maximize your production output and profitability.
