Designed as a versatile automatic metal cutting saw and steel bar band saw, this machine delivers consistent precision for industrial metal fabrication facilities, steel processing workshops, and mechanical manufacturing enterprises. With CE-certified safety systems and an industrial-grade structure, it balances cost-effectiveness and production efficiency, ideal for both small-batch precision cutting and high-volume stock processing.
This entry level industrial band saw offers a maximum cutting capacity of Ø320mm for round materials and 320×320mm for square workpieces, with a minimum cutting size of 10×10mm. Its infinitely variable cutting speed (20-80m/min) and adjustable feed speed (1-300mm/min) adapt to carbon steel, stainless steel, and alloy steel, delivering clean cuts while minimizing material waste. The 5mm minimum cut-off length supports precision small-part processing, meeting diverse production demands.

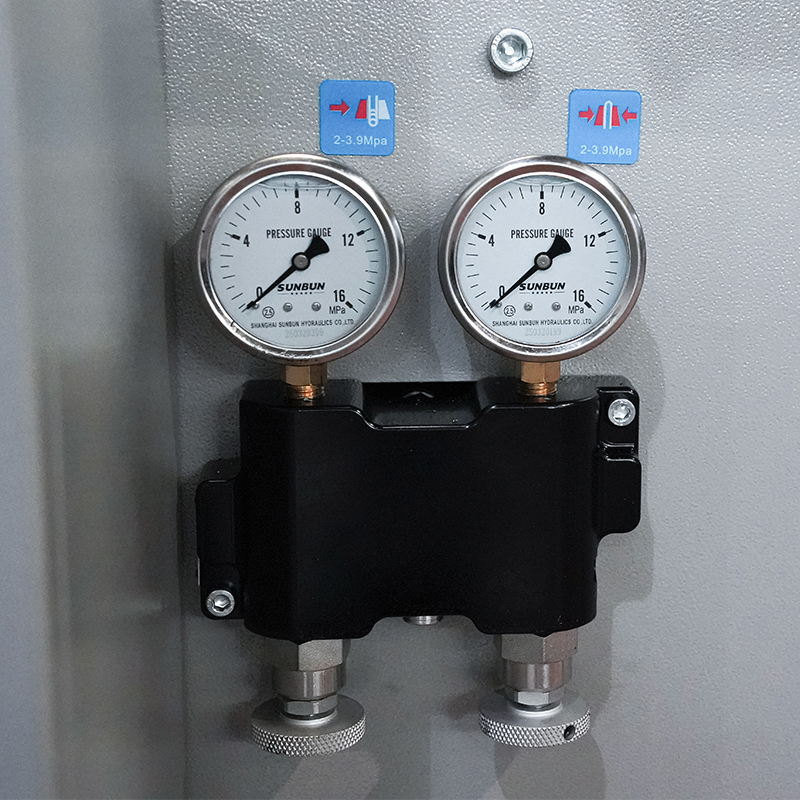

Equipped with a 5kW permanent magnet synchronous saw motor and 0.75kW hydraulic motor, the automatic metal cutting saw delivers steady, energy-saving power. Standard hydraulic blade tension and vise pressure regulation ensure secure clamping, reduce cutting deviation, and extend saw blade life. The hydraulic-driven feed system supports 500mm single-stroke and 9999mm multi-stroke automatic feeding, cutting manual intervention and boosting efficiency.

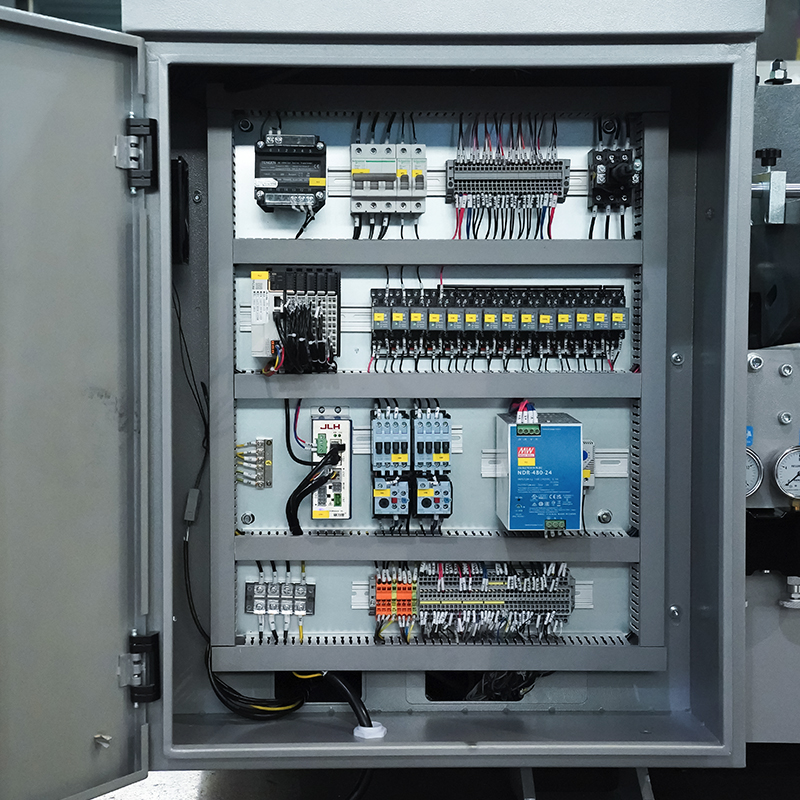

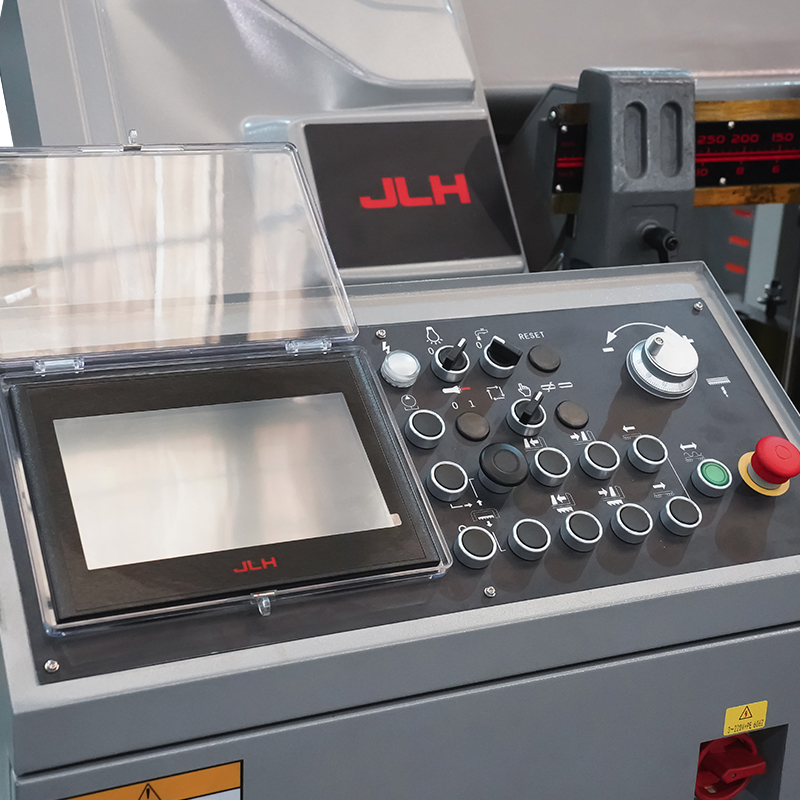

This steel bar band saw features CE-compliant safety protection, sawbow anti-collision detection, and an intuitive HMI + button control panel with an inverter. Standard LED working light, motorized chip brush, spiral automatic chip conveyor, and 40L chip box maintain a clean working environment and reduce maintenance workload.
Standard Configurations: CE safety & electrical protection, permanent magnet synchronous motor, sawbow anti-collision detection, HMI + button control, inverter, hydraulic blade tension, split vise clamping, spiral chip conveyor, simple roller table, 40L chip collection box, tool kit.
Optional Configurations: UL electrical safety, laser line projection, blade breakage detection, hydraulic movable guide arm, 70L movable chip collection box.
Non-Optional Configurations: JLH-EHA downfeed system, auto lubrication device, single vise clamping.

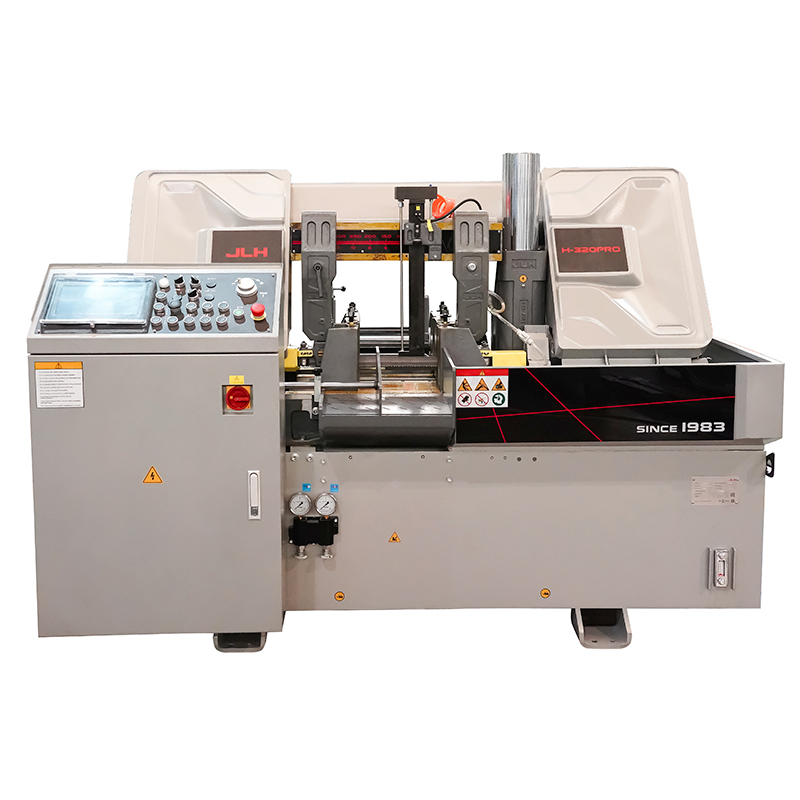

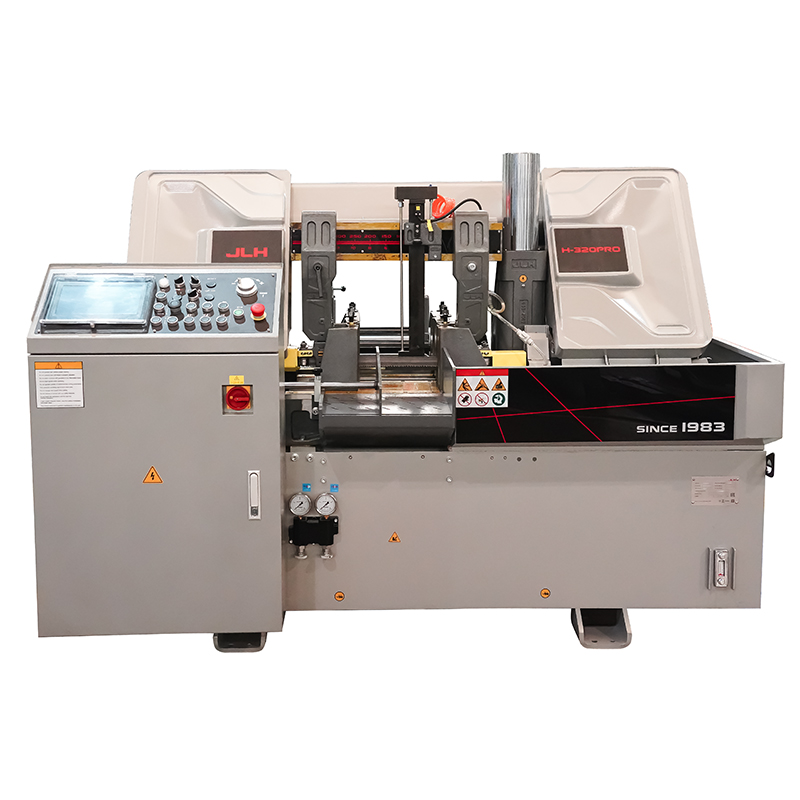

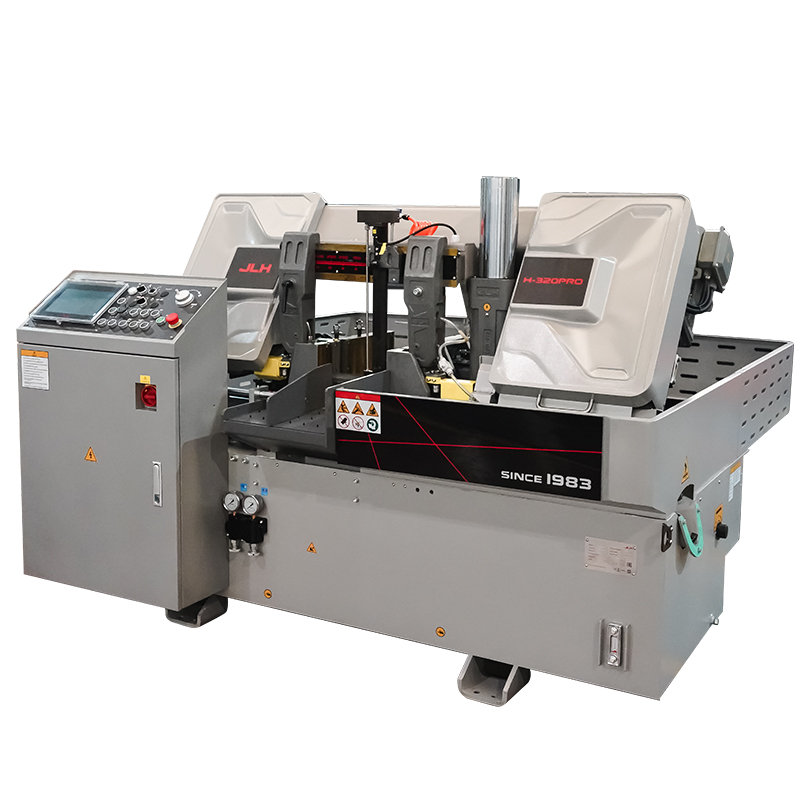

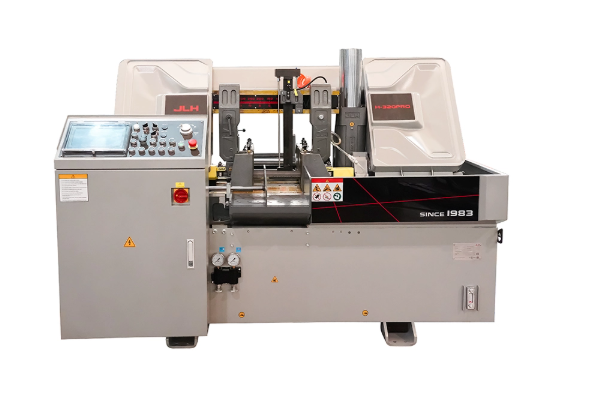

The H-320PRO band saw serves general metal fabrication, steel structure manufacturing, automotive parts processing, mechanical repair workshops, and steel distribution centers. It excels at cutting steel bars, metal profiles, bundled materials, and precision parts, adapting to batch and custom small-batch processing for industrial enterprises.
It supports Ø320mm round cutting and 320×320mm square cutting, covering most common industrial metal stock sizes.
Yes, CE safety and electrical protection are standard, fully complying with European industrial safety standards.
The minimum cut-off piece length is 5mm, ideal for precision small-part processing.
If you need a reliable, cost-effective entry level industrial band saw to optimize your metal cutting operations, contact us today for a customized quote and professional technical support. Our team will help you match the optimal configuration for your specific production needs, with full after-sales service and spare parts supply.
