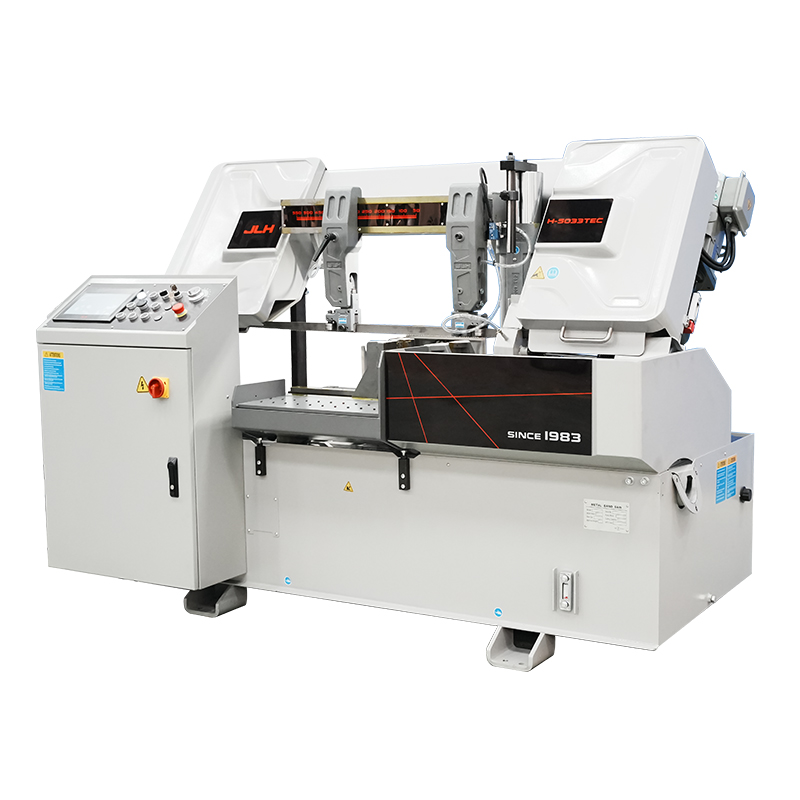

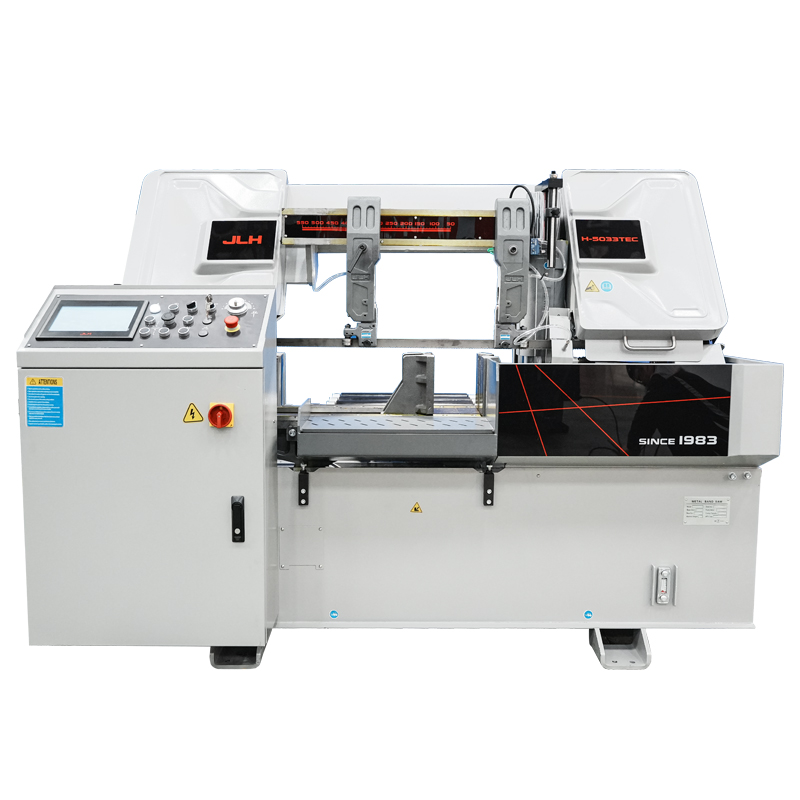

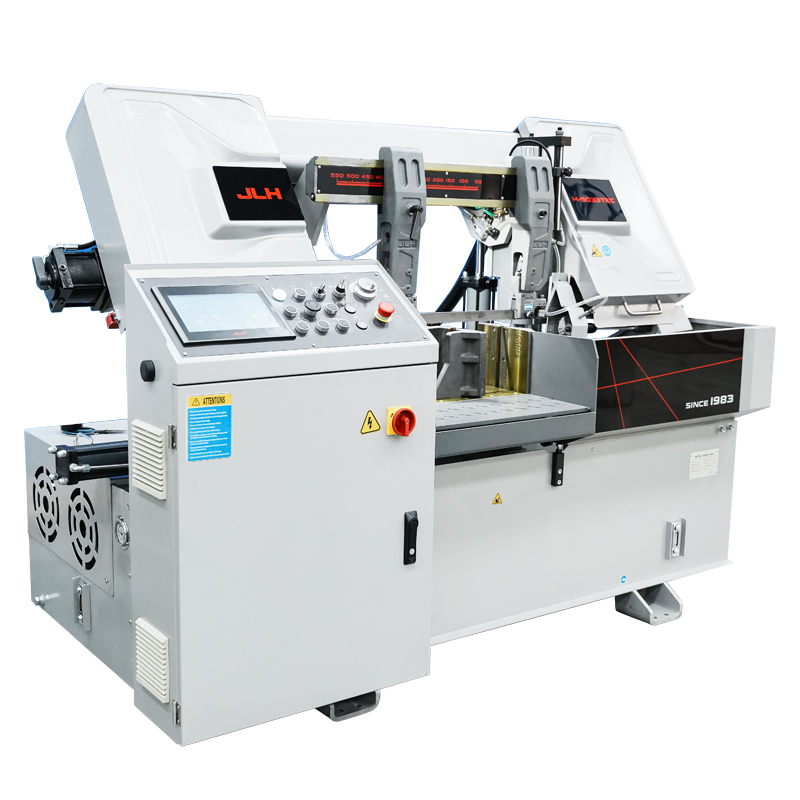

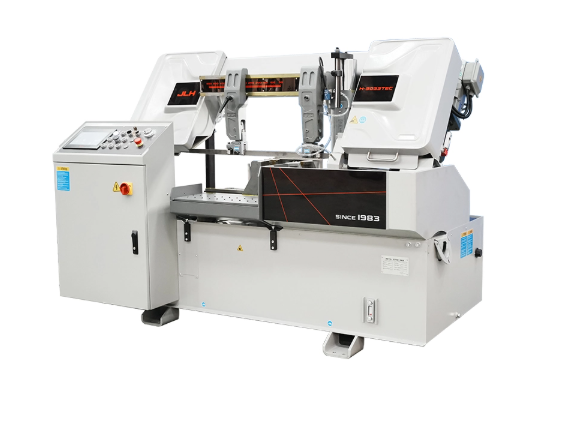

Built for mid-sized metal fabrication workshops and specialized parts manufacturing businesses, this medium duty metal billet cutting band saw balances a compact footprint, high production efficiency, and exceptional cutting accuracy, making it the go-to choice for continuous batch processing in industrial production lines. CE-certified for electrical safety and equipped with advanced permanent magnet synchronous motor technology, it delivers consistent, reliable performance while lowering labor input and operational costs.
As a leading semi-auto horizontal metal band saw, this machine is optimized for high-volume billet and bar cutting, with a maximum round bar capacity of Ø330mm and square material capacity of 500×330mm. The 5kW high-efficiency permanent magnet synchronous motor delivers stable, energy-saving power for continuous operation, with infinitely variable cutting speeds (20-80m/min) to match mild steel, stainless steel, and more, ensuring smooth, precision cuts with minimal material waste in every batch run.
Engineered for space-constrained industrial workshops, this metal bar cutting band saw features a rigid, space-saving structure without compromising durability. The split vise clamping system, paired with a hydraulic vise pressure regulator and differential valves, delivers uniform, non-slip clamping for workpieces from 10×10mm up to 500mm wide, preventing workpiece deformation and ensuring consistent cutting accuracy across long production runs. The main drive precision gear reducer minimizes vibration, extending blade service life and reducing long-term maintenance needs.
This medium duty industrial band saw comes standard with a comprehensive set of safety and efficiency features. Sawbow anti-collision detection and blade breakage detection trigger an immediate emergency stop to protect operators and equipment, eliminating unplanned downtime. The user-friendly HMI + button control interface, paired with a high-performance inverter, enables precise saw feed speed adjustment (1-300mm/min), giving operators full control over cutting parameters for different workpiece specifications. A standard automatic spiral chip conveyor and motorized chip brush efficiently clear cutting debris, reducing manual cleaning time.
Saw Master feed system, CE electrical safety, permanent magnet synchronous motor
Anti-collision & blade breakage detection, HMI + button control, inverter, LED work light
Hydraulic blade tension, vise pressure control, automatic spiral chip conveyor
Motorized chip brush, hydraulic cooling fan, precision gear reducer, split vise clamping
40L chip collection box, full tool kit, 1× pre-fitted saw blade
UL electrical safety, laser line projection, sawing depth control, deviation detector
Hydraulic blade guide clamping, top clamp, 70L movable chip box, container transport underframe
This semi-auto billet cutting band saw is ideal for general machinery parts manufacturing, automotive component production, steel structure accessory fabrication, metal bar distribution and processing, mold parts manufacturing, and mid-sized metal fabrication workshops. It excels at batch cutting of steel billets, round bars, square tubes, and small structural profiles, delivering consistent precision for both small-batch custom jobs and large-scale production runs.
It handles round workpieces up to Ø330mm in diameter and square materials up to 500×330mm, perfectly suited for standard billet and metal bar cutting in industrial production.
Yes, it is specifically engineered for continuous batch processing, with a stable permanent magnet synchronous motor, automatic chip management, and reliable clamping to support non-stop production runs.
Standard features include infinitely variable cutting speed, HMI + button precision control, automatic chip conveyor, and motorized chip brush, all designed to reduce labor and boost production efficiency.
Searching for a high-performance, cost-effective semi-auto industrial band saw to optimize your billet and bar cutting production? Reach out to our technical sales team today to receive a personalized quote, full product datasheet, or arrange a remote cutting test. We’ll help you elevate your production output and maximize operational profitability with a tailored cutting solution.
