Designed as a high-rigidity large format metal saw and industrial heavy cutting saw, it delivers unrivaled stability and performance for heavy manufacturing enterprises, large steel structure fabricators, heavy machinery production facilities, and shipbuilding workshops. With CE-certified safety systems and a reinforced gantry structure, it is engineered for continuous heavy-duty cutting of large-section, high-hardness metal materials.

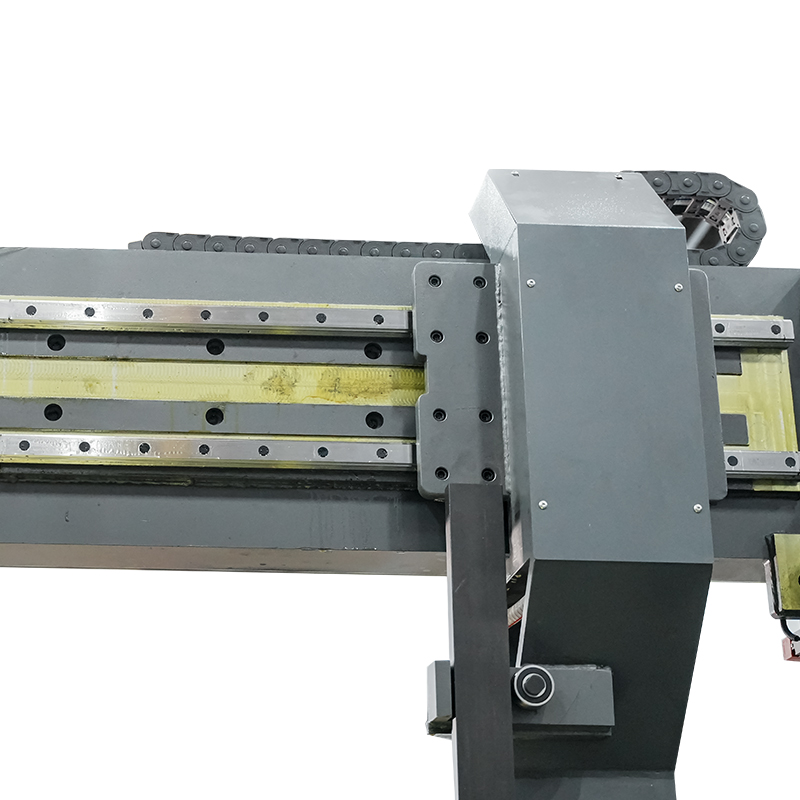

This extra heavy duty band saw features a 6300kg high-rigidity gantry frame, eliminating vibration during heavy cutting and ensuring exceptional cutting precision. It delivers a maximum cutting capacity of Ø700mm for round materials and 800×700mm for square structural workpieces, with a 300×300mm minimum cutting size, perfectly adapting to large-scale metal structural components and heavy billets.

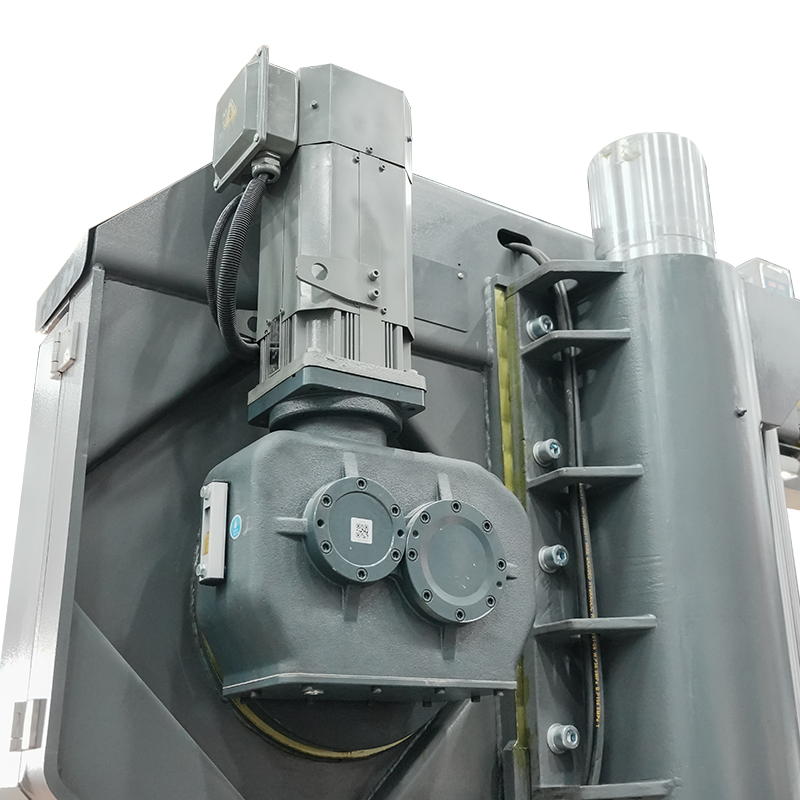

Equipped with the standard JLH-EHA saw feed system and Saw Master control platform, this industrial heavy cutting saw offers infinitely variable cutting speed (20-80m/min) and precision-adjustable feed speed (1-300mm/min). The 11kW permanent magnet synchronous saw motor and 2.2kW hydraulic motor deliver consistent, high-torque power for continuous cutting of high-hardness alloy steel, mold steel, and thick-walled metal workpieces, with minimal downtime and extended saw blade service life.

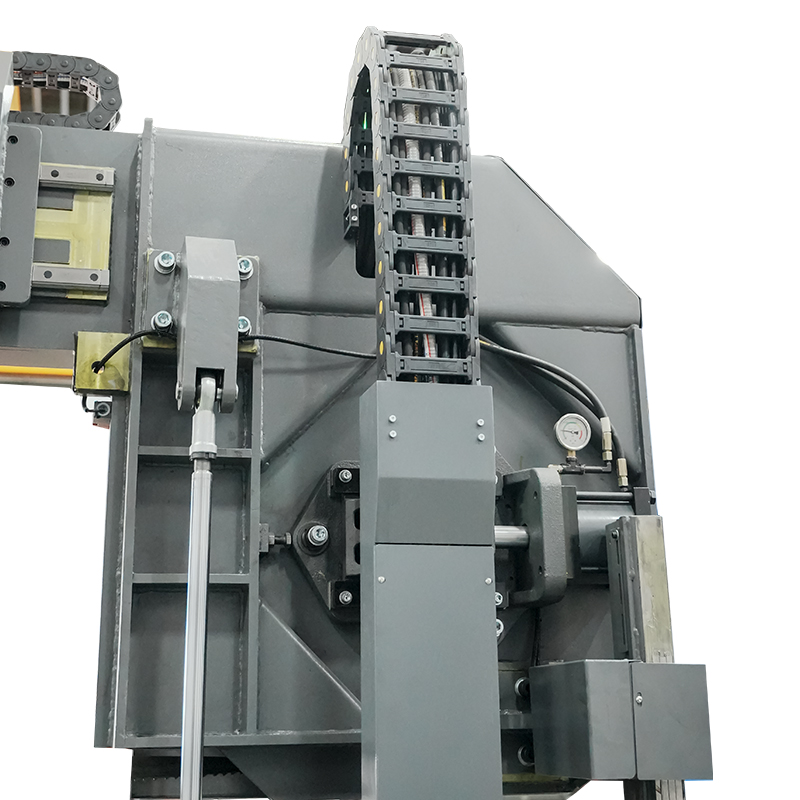

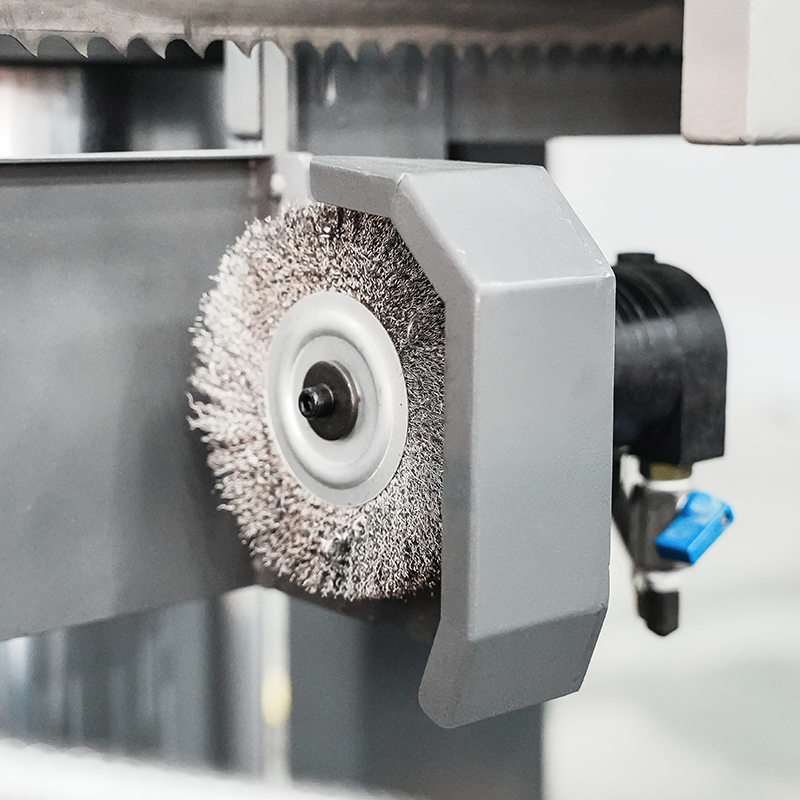

This large format metal saw comes standard with CE-compliant electrical and safety protection, sawbow anti-collision detection, blade breakage detection, and sawing depth control, ensuring maximum safety for heavy industrial operations. Standard hydraulic blade tension, hydraulic movable guide arm, automatic lubrication device, and hydraulic table movement deliver fully automated, low-maintenance operation, while the spiral automatic chip conveyor, motorized chip brush, and hydraulic cooling fan handle heavy chip loads during continuous production.
Standard Configurations: JLH-EHA feed system, Saw Master control, CE safety & electrical protection, permanent magnet synchronous motor, anti-collision detection, blade breakage detection, sawing depth control, HMI control, inverter, hydraulic blade tension, hydraulic movable guide arm, automatic lubrication, spiral chip conveyor, 40L chip box, tool kit.
Optional Configurations: UL electrical safety, laser line projection, deviation detector, 70L movable chip box, container transport underframe.
Non-Optional Configurations: Single vise clamping, manual movable guide arm.

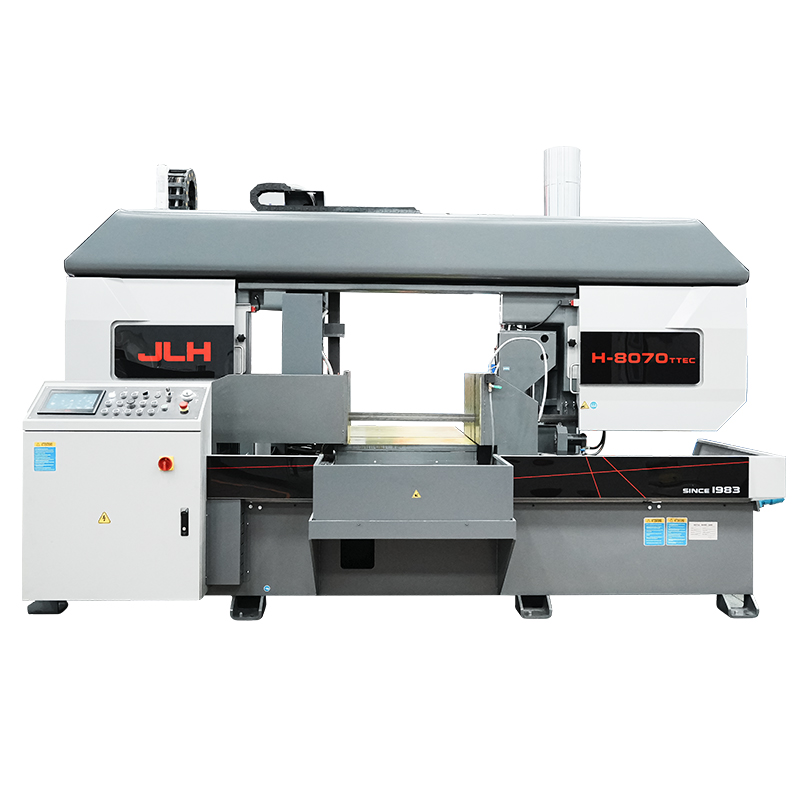

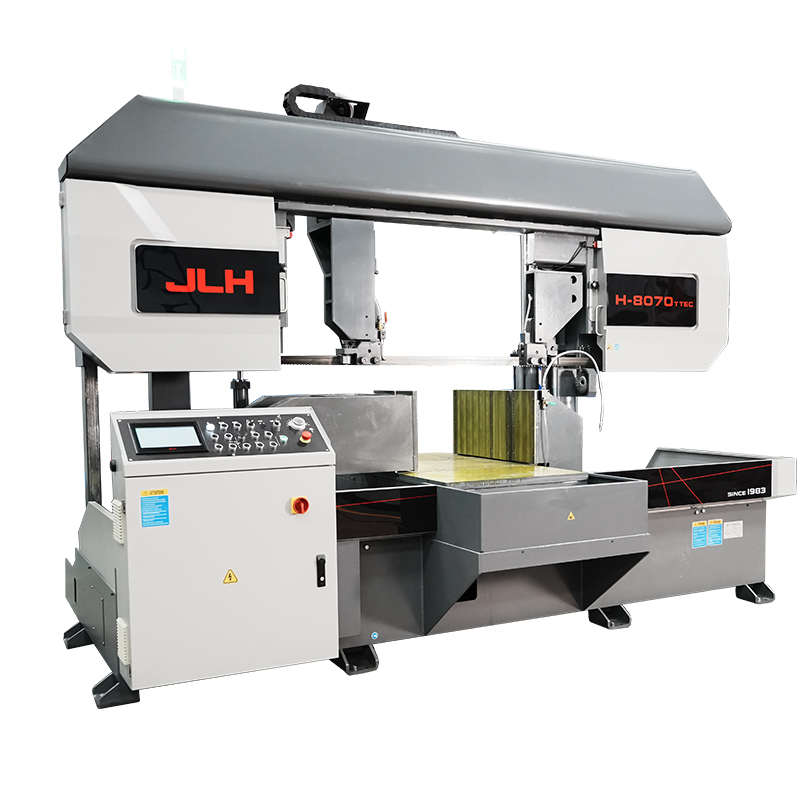

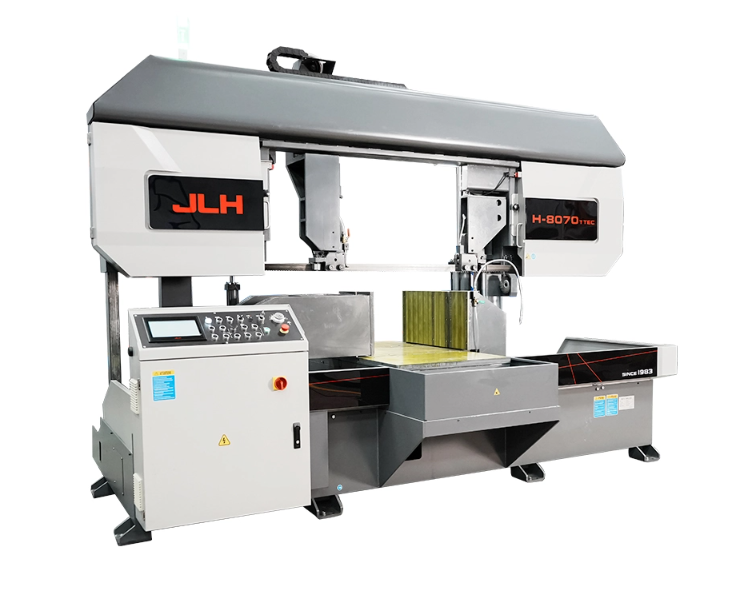

The H-8070T TEC gantry band saw machine is widely used in heavy steel structure manufacturing, wind power component production, heavy machinery building, shipbuilding, large mold processing, and thick-walled steel pipe cutting. It excels at continuous heavy-duty cutting of high-carbon steel, alloy steel, stainless steel, mold steel, and large non-ferrous metal billets, meeting the most demanding production requirements of heavy industrial enterprises.
It supports Ø700mm round cutting and 800×700mm square cutting, exclusively designed for large structural metal workpieces.
Yes, its reinforced gantry structure, high-power drive system, and full automatic lubrication are engineered for non-stop heavy industrial production.
Standard features include CE certification, sawbow anti-collision detection, blade breakage detection, and sawing depth control for full-process safety protection.
If your heavy industrial operations require a high-rigidity, high-performance large format metal saw for large structural metal cutting, contact us today for a tailored quote and professional technical consultation. Our team will deliver a customized cutting solution to meet your most demanding heavy-duty production needs, with comprehensive after-sales support and technical service.
