Backed by JLH’s 40+ years of expertise in metal cutting equipment, this automatic metal band saw is engineered for heavy-duty beam cutting and bulk steel blanking, delivering exceptional cutting stability and efficiency for large-size workpieces, fully compliant with CE safety standards. Designed to solve core challenges of heavy material cutting, including unstable clamping, low cutting efficiency, and high equipment wear, this industrial horizontal band saw features a robust heavy-duty structure and reliable drive system, making it the top choice for continuous high-volume steel cutting in demanding industrial environments.

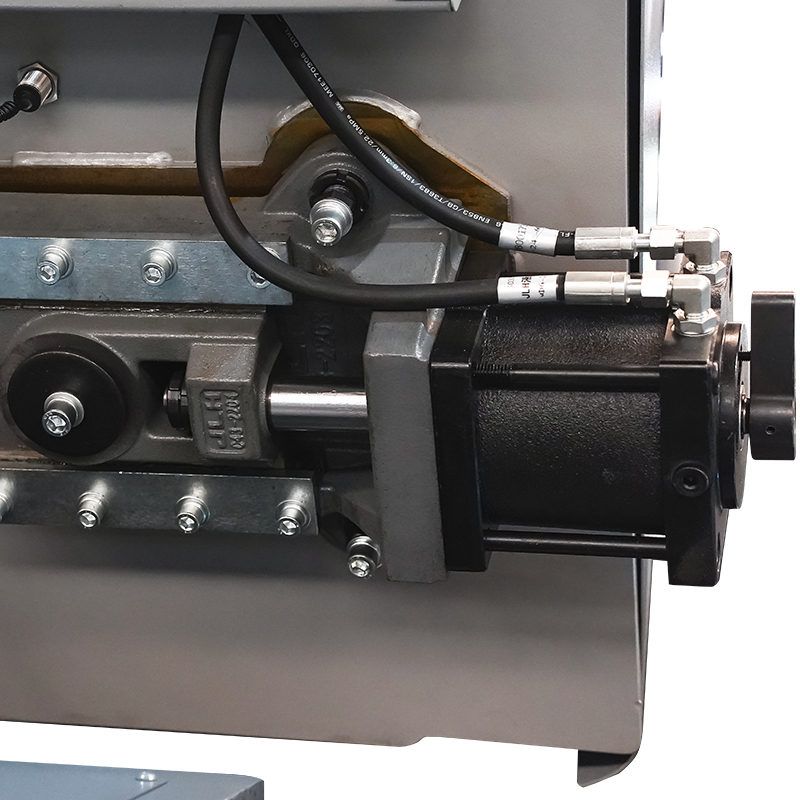

At the heart of this steel cutting band saw is a 7.5kw high-torque saw motor, with a total connected load of 9.5kw, paired with a permanent magnetic synchronous motor and precision gear reducer. This heavy-duty drive system delivers consistent power for cutting large-diameter round steel, thick steel plates, and high-strength alloys, significantly boosting cutting efficiency and supporting continuous 24/7 operation for high-volume production.
The machine features a standard split vise clamping system with a 0-420mm clamping range, ensuring firm, non-slip holding for both solid workpieces and bundled steel profiles. The manual movable guide arm can be flexibly adjusted to match workpiece width, maintaining optimal blade support to minimize vibration and ensure consistent cutting straightness, even during bulk bundle cutting operations.
With a heavy-duty cast iron body and total weight of ≈2850kg, this beam cutting band saw offers exceptional vibration damping and structural stability, extending equipment service life and reducing maintenance frequency. It is equipped with standard CE safety protection, sawbow anti-collision detection, blade breakage detection, and LED working light, ensuring maximum operator safety and minimizing unplanned downtime in harsh industrial environments.

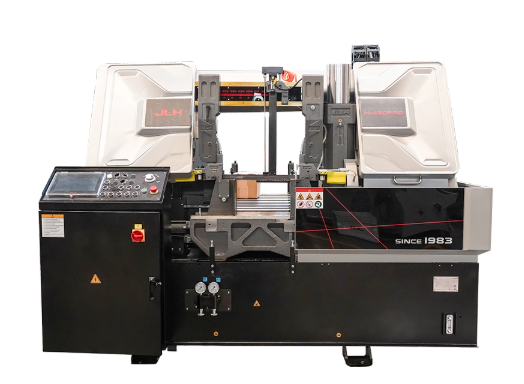

The H-420PRO horizontal band saw machine is ideal for heavy-duty industrial sectors: structural steel fabrication, bridge and engineering machinery manufacturing, steel distribution and warehousing, shipbuilding component processing, large mechanical frame production, and bulk steel blanking operations.
This heavy duty steel cutting band saw offers a maximum cutting capacity of Ø420mm for round bars and 420×420mm for square bars, accommodating large-size workpieces for heavy industrial applications.
Yes, it supports bundle cutting with a range of 160×130mm to 260×160mm, making it ideal for high-volume blanking of steel profiles in steel distribution and fabrication businesses.
The machine comes standard with a hydraulic driven feeding system, with an optional servo driven feeding system available for higher feeding accuracy requirements.
Looking for a robust, high-efficiency industrial horizontal band saw for your heavy-duty beam cutting and bulk steel processing needs? Reach out to our experienced technical team today to request a personalized quote, access the full product specification sheet, or arrange a virtual demonstration of the H-420PRO horizontal band saw machine. We provide customized configuration solutions to fit your unique production requirements, with full after-sales support to ensure long-term reliable performance for your operations.
