Band saw
Straight cut
Automatic
Structural steels, Stainless steel, Tool steel
800mm/31.5inch
700mm/27.6inch
| Availability: | |
|---|---|

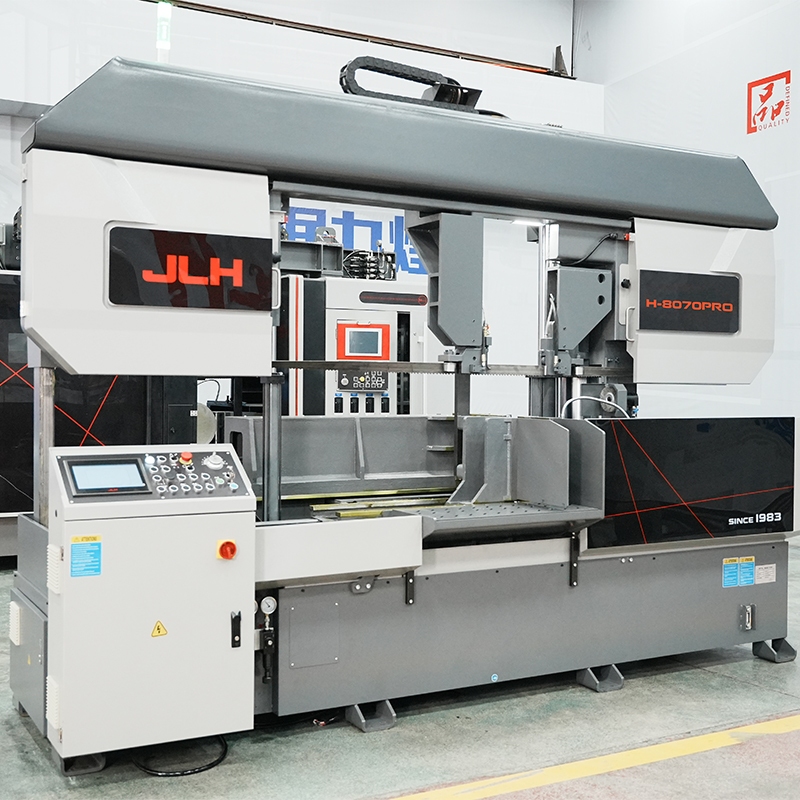

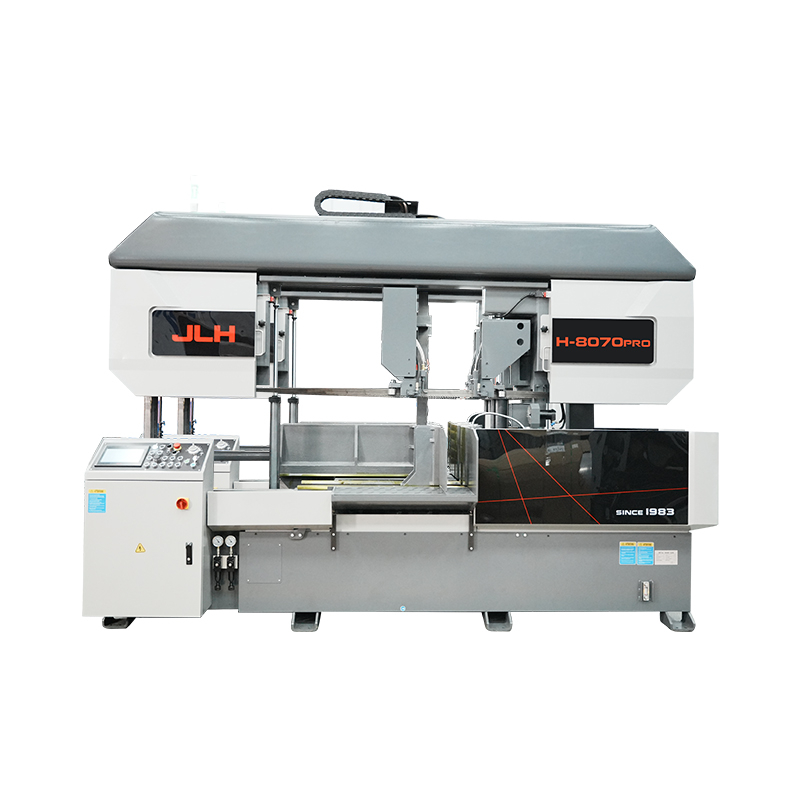

| Specifications | H-8070PRO |
Cutting range round | φ700mm /φ27.5in |
Cutting range square (W x H) | 800*700mm 31.5*27.5in |
| Smallest size to be cut | 200*200mm 8*8in |
| Clamping range | 200-700mm 7.9-27.5in |
| Bundle cutting range (Min.W x H - Max. W x H ) | - |
| Shortest length of cut-off piece | 5mm /0.2in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 250mm /9.88in |
Shortest remnant length individual cut | 10mm /0.4in |
| Length | 2200mm/86.6in |
| Width incl. chip conveyor | 4300mm/169.3in |
| Height | 3030mm/119.3in |
Material support height | 860mm/33.85in |
| Total weight | ≈6000KG/13227lb |
| Total connected load | 13.8kw/18.4hp |
| Power of saw motor | 11kw/14.66hp |
| Hydraulic motor | 2.2kw/2.93hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Automatic material feed length, single stroke | 500mm /19.69in |
| Automatic material feed length, multiple stroke | 9999mm /393.66in |
| Dimensions of saw blade | 8100*54*1.6mm 318.9 * 2.1 * 0.06in |
| Functional description | H-8070PRO |
CE safety protection | ● |
| JLH-EHA | ● |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ○ |
Blade breakage detection | ● |
Sawing Depth Control | ● |
| HMI+Buttons | ● |
| Inverter | ● |
| Deviation detector | ○ |
| Hydraulic Blade tension | ● |
| Vise pressure differential valves | × |
| Automatic chip conveyor (spiral) | ● |
| Hydraulic blade guide clamping | ● |
| Vise pressure regulator | ● |
| Motorized chip brush | ● |
| Top clamp | × |
| Hydraulic cooling fan | ● |
| Auto Lubrication device | ○ |
| Roller type work table | ● |
| Simple Roller table | × |
| Hydraulic driven | ● |
| Servo driven | ○ |
| Main drive precision gear reducer | ● |
| Single Vise Clamping | × |
| Split Vise clamping | ● |
| Hydraulic movable Guide arm | ● |
| Manual movable Guide arm | × |
| Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
