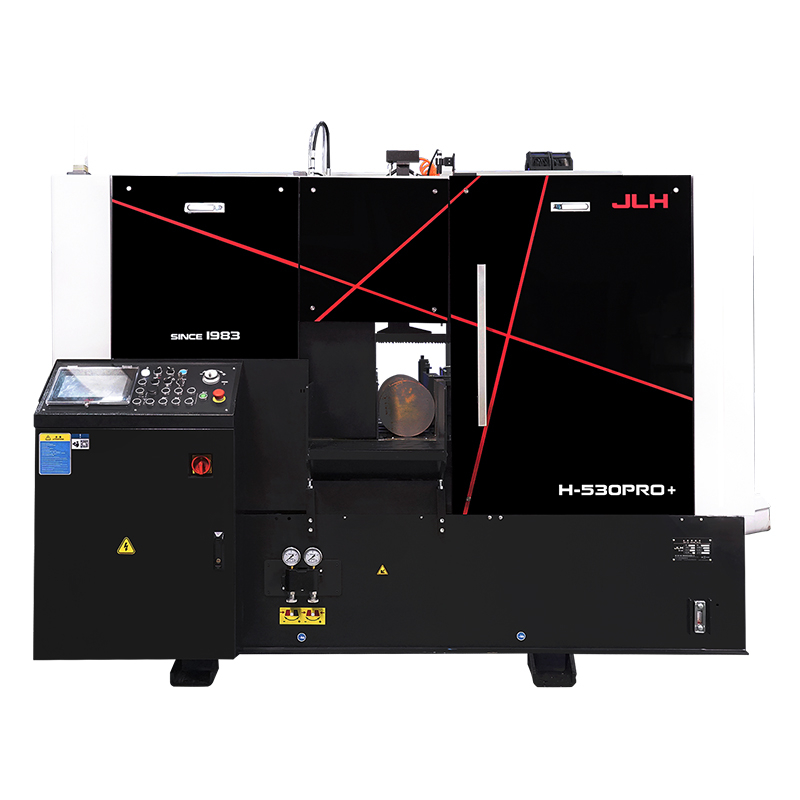

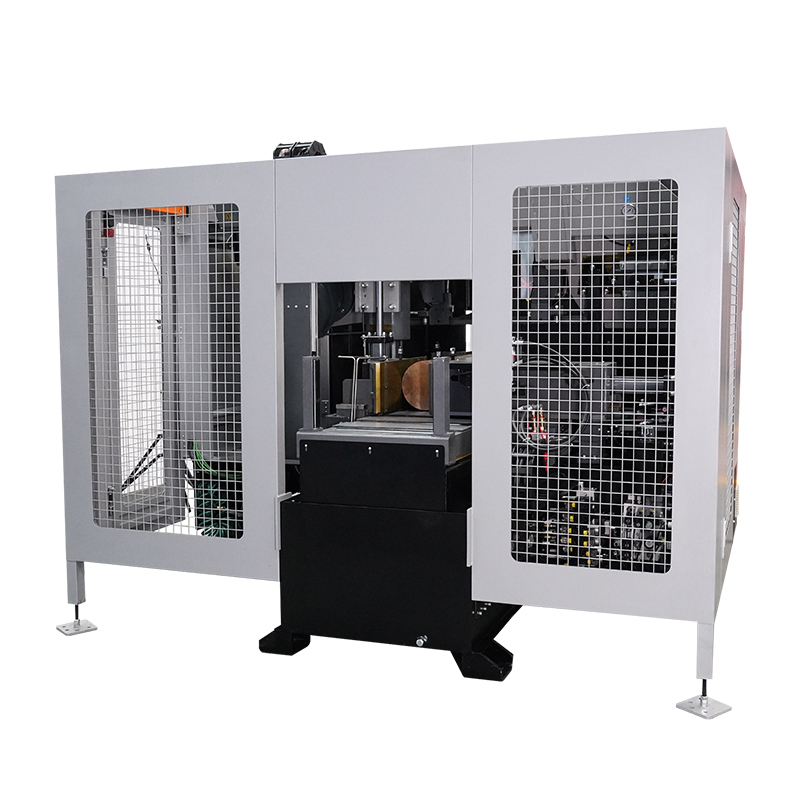

| Specifications | H-530PRO+ |
Cutting range round | Ø530 mm (Ø20.8 in) |
Cutting range square (W x H) | 530 x 530 mm (20.8 x 20.8 in) |
| Smallest size to be cut | 20 x 20 mm (0.8 x 0.8 in) |
| Clamping range | 0-530 mm (0-20.8 in) |
| Bundle cutting range (Min.W x H - Max. W x H ) | 145 x 110-270 x 200 mm (5.7 x 4.3-10.6 x 7.9 in) |
| Shortest length of cut-off piece | 5 mm (0.2 in) |
| Shortest remnant length in automatic operation | 190 mm (7.48 in) |
Shortest remnant length individual cut | 20 mm (0.8 in) |
| Length | 2220 mm (87.4 in) |
| Width incl. chip conveyor | 3530 mm (139 in) |
| Height | 2530 mm (88.6 in） |
Material support height | 860 mm (33.85 in） |
| Total weight | ≈3700kg (8157 lb） |
| Total connected load | 11.5 kW (15.3 hp） |
| Power of saw motor | 7.5 kW (10 hp） |

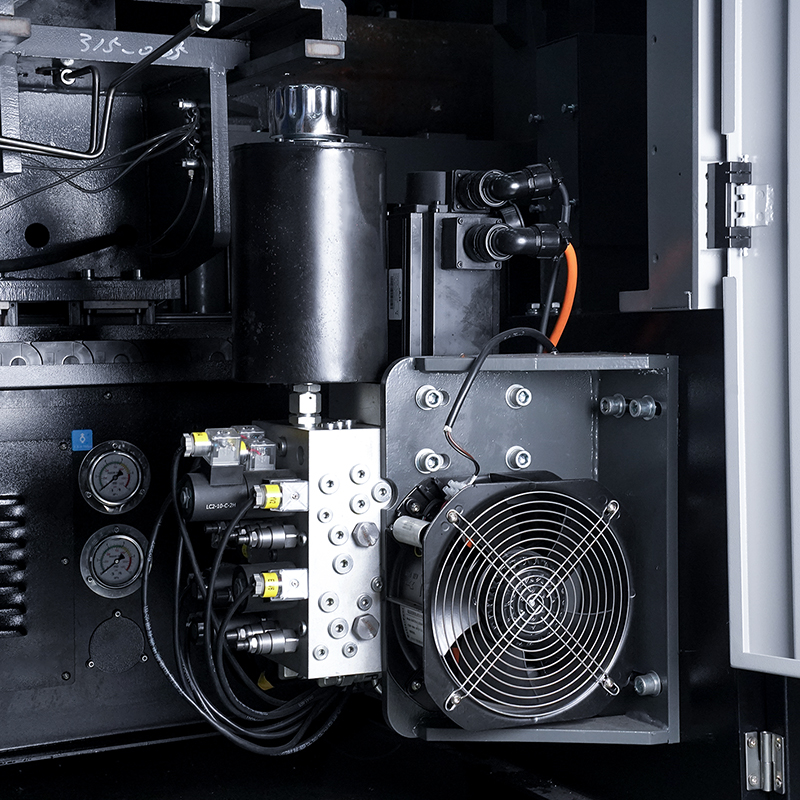

| Hydraulic motor | 1.5 kW (2 hp) |
| Cutting speed infinitely variable with | 20-80 m/min (65.6-262.4 ft/min) |
| Saw feed speed | 1 - 300 mm/min (0.04-11.8 in/min) |
| Automatic material feed length, single stroke | 500mm (19.69 in) |
| Automatic material feed length, multiple stroke | 9999mm (393.66 in) |
| Dimensions of saw blade | 6300 x 54 x 1.6 mm (248 x 2.1 x 0.06 in) |
