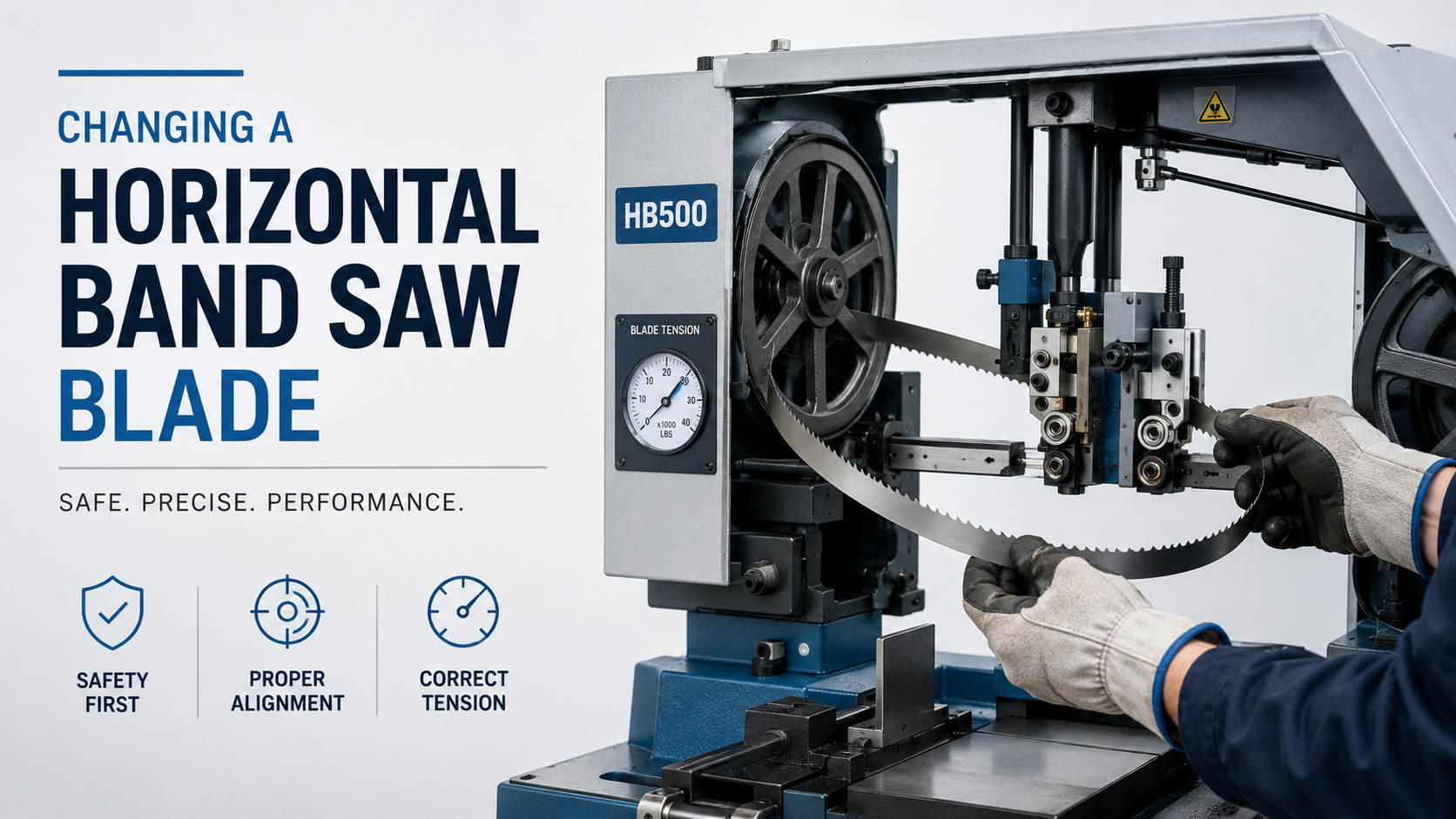

How To Change A Horizontal Band Saw Blade​

Views: 0     Author: Site Editor     Publish Time: 2026-06-16      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Machine downtime drains shop efficiency fast. Premature tool failure stops production tracks dead, leaving operators frustrated and projects delayed. Every minute spent fighting equipment directly reduces shop profitability. Improperly installed blades frequently cause crooked cuts. They strip teeth rapidly under normal loads. These mistakes also create severe safety hazards on the floor. Operators face dangerous working conditions when metal bands snap unexpectedly.

Changing a cutting tool requires far more than simply swapping out a horizontal band saw blade. It demands strict adherence to safety protocols. Precise tensioning and accurate tracking alignment remain absolutely essential for proper function. Relying on operator guesswork leads to repeated mechanical failures.

This guide outlines an evidence-based, industry-standard process to safely replace your equipment. You will learn exact steps to verify operational accuracy. We detail specific procedures to maximize the lifespan of your cutting tools. Proper installation ensures precise cuts and protects expensive machine components.

Key Takeaways

  • Safety Compliance: Lockout/Tagout (LOTO) procedures are non-negotiable prior to opening wheel guards.

  • Specification Matching: Verifying tooth pitch (TPI) and blade material against your typical stock prevents immediate blade failure.

  • Precision Alignment: Relying on tension gauges rather than "feel" ensures optimal tracking and prevents the blade from slipping off the wheels under load.

  • The Break-In Period: Gradually introducing feed pressure on a new blade extends its operational life by up to 25%.

Preparing for the Change: Blade Evaluation and Tool Setup

Evaluate the exact machine requirements before removing the old tool. The replacement must match required length, width, and thickness perfectly. Evaluate new specifications carefully before beginning the replacement process. Choose between bi-metal or carbon steel based on material density. Tooth pitch (TPI) selection depends entirely on the material cross-section you intend to cut. Using incorrect specifications guarantees immediate tool failure.

Staging the right tools minimizes machine downtime significantly. Having tools ready keeps the entire process moving smoothly. Operators should never leave the machine partially disassembled to search for equipment. Success depends on preparation.

Use the following criteria to evaluate material types:

Blade MaterialIdeal ApplicationMaterial DensityExpected Lifespan

Carbon Steel

Soft metals, aluminum, plastics

Low to medium density

Moderate

Bi-Metal

Stainless steel, heavy alloys

High density

Extended

Gather these required tools before starting:

  • Heavy-duty leather work gloves

  • ANSI-approved safety glasses

  • Necessary wrenches and Allen keys

  • Dedicated blade tension gauge

  • Wire brush

  • Industrial cleaning solvent

Step 1: Safe Removal and Wheel Inspection

Coiled bands store massive amounts of kinetic energy. Uncontrolled release easily causes severe lacerations. Operators must respect this stored energy always. Disconnect the machine from its main power source immediately. This action eliminates accidental start-up risks completely. Lockout/Tagout (LOTO) protocols save lives and prevent devastating injuries.

Lower the saw head to a secure resting position. Loosen the tension handwheel slowly. This introduces necessary slack into the old tool. Carefully slip the metal band off the idler and drive wheels. Wear heavy leather gloves continuously during this step.

Inspect the wheel flanges closely. Look at the rubber or polyurethane tires for excessive wear. Metal chip buildup destroys wheel tracking over time. Clean the guide bearings thoroughly. Use a wire brush to remove debris. Apply industrial solvent directly to stubborn buildup. Clean components ensure smooth operation. Dirt prevents proper tracking alignment.

Step 2: Routing and Seating the New Horizontal Band Saw Blade

Installing a tool backward represents a common, costly error. This mistake instantly ruins delicate teeth upon the first cut. Uncoil the new tool carefully away from your body. Maintain a firm grip at all times to prevent sudden uncoiling.

Ensure the teeth point directly toward the motor or drive wheel. They must face the correct cutting direction. This typically means pointing down and toward the rear vise. Improper orientation guarantees catastrophic failure.

Follow these sequential routing steps:

  1. Thread the metal band through the guide roller bearings first.

  2. Seat it smoothly over the motor drive wheel.

  3. Pull it across firmly to seat on the idler wheel.

  4. Adjust the back edge to rest slightly off the wheel flange.

This specific positioning prevents dangerous binding during operation. Take time to verify seating before applying tension. Misaligned bands will snap off the wheels immediately. Precision during routing prevents costly damage.

Step 3: Setting Tension and Adjusting Tracking

Under-tensioning causes the tool to wander and score the cut. Over-tensioning stretches the metal and damages expensive wheel bearings. Tighten the tensioning knob until the metal band seats firmly. Use a proper tension gauge always. Match the OEM specified PSI strictly. Avoid the highly subjective pluck test completely.

Reference this standard tension matrix chart for common setups:

Blade TypeRecommended Tension (PSI)Risk of Under-TensionRisk of Over-Tension

Carbon Steel

15,000 - 20,000 PSI

Crooked cuts, slipping

Band breakage

Bi-Metal

25,000 - 30,000 PSI

Wandering, scoring

Bearing failure

To verify tracking, leave the machine completely unplugged. Manually rotate the drive wheel several times. Observe the movement on the idler wheel. The shoulder should track consistently near the wheel flange. It must not rub heavily against the flange. Adjust the idler wheel tracking bolts as needed. Make small adjustments if drifting occurs forward or backward. Re-check tension after finalizing the tracking adjustments.

Step 4: The Break-In Process and Performance Validation

A new cutting tool possesses razor-sharp, microscopic burrs. Subjecting these burrs to full feed pressure immediately will snap them. You must follow a strict break-in procedure. Reconnect the power and close all safety guards securely. Run the saw at normal surface feet per minute (SFPM). Reduce the initial feed rate or pressure by half.

Make continuous cuts through solid, mild steel. Do this for roughly fifteen to twenty minutes. This process requires cutting fifty to one hundred square inches of material. Gradually increase the feed rate to maximum capacity. The teeth will hone to a highly stable cutting edge. Proper break-in prevents premature failure.

Document the exact date of the change. Monitor the first ten cuts for absolute squareness. This validates your guide bearing alignment perfectly. Address any wandering issues immediately. If structural issues persist, contact a qualified horizontal band saw blade specialist for advanced diagnostics.

Conclusion

Standardizing your replacement procedure reduces unnecessary machine wear. This standardization drastically cuts down on consumable spend. Rely on verifiable metrics rather than operator guesswork. Use tension gauges and adhere to strict break-in periods always. Evaluate your current supplier if tool turnover remains exceptionally high. Consider upgrading your tensioning hardware for better accuracy.

Take these action steps today to secure your operations:

  • Audit your current LOTO procedures for strict compliance.

  • Purchase a dedicated tension gauge for the shop floor.

  • Train all operators on the mandatory break-in sequence.

  • Schedule regular inspections of wheel flanges and guide bearings.

FAQ

Q: Which way should the teeth face on a horizontal band saw?

A: Teeth must point in the direction of blade travel. Typically, they point toward the drive motor. This orientation engages the material correctly during the downward cut. Backward installation destroys the teeth instantly upon contacting the material.

Q: Why does my new horizontal band saw blade keep jumping off the wheels?

A: This usually points to inadequate tension. Worn wheel flanges also cause this exact issue. Improper tracking alignment on the idler wheel remains another primary culprit. Always verify tracking manually before applying power.

Q: How tight should a horizontal band saw blade be?

A: Always reference specific OEM guidelines. Tension is typically measured in PSI via a dedicated gauge. Proper tension ensures structural rigidity without overloading the machine's bearings. Bi-metal bands generally require 25,000 to 30,000 PSI.


Q: Why is my saw cutting crooked right after a blade change?

A: Crooked cuts often result from incorrect tension. Mismatched TPI for the specific material causes wandering. Guide bearings might not have been re-adjusted properly to support the new thickness.
