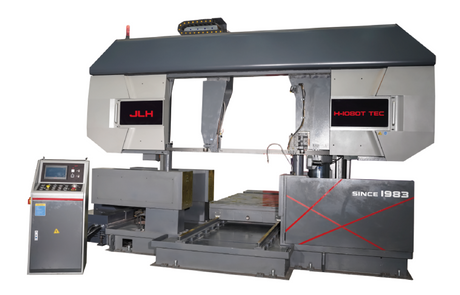

Precision metalworking demands reliable equipment for consistent results. Even the highest-quality machine fails without proper calibration. You need precise baseline settings to achieve optimal cutting performance. A poorly configured horizontal band saw results in premature blade failure, inaccurate cuts, and wasted stock material. Factory defaults on new machines rarely match specific shop floor applications. Used equipment requires rigorous baseline calibration before deployment. These setup issues directly impact shop profitability and project timelines. This guide outlines the standardized setup process. You will learn how to secure square cuts and achieve optimal blade tracking. We provide actionable steps to ensure safe, compliant operation from the very first cut. By following these structured guidelines, operators establish a firm foundation for reliable daily production. For tailored advice on your specific machining setup, you can always contact us to speak directly with our experienced technical specialists.
Blade Selection and Tensioning: Correct tooth pitch and adequate tension are foundational; under-tensioning is the leading cause of blade wander and breakage.
Wheel Alignment (Tracking): Precise tracking ensures the blade rides correctly on the wheel flange, protecting the equipment and the blade.
Guide and Vise Calibration: Squaring the vise and adjusting the blade guides directly dictates the dimensional accuracy of the final cut.
System Verification: A controlled dry run and coolant system check must precede any live cutting to mitigate operational risks.
You must establish a safe, stable, and compliant environment before turning on the machine. Proper workspace preparation ensures the equipment operates without destructive vibration or power disruption. Uneven flooring or inadequate power supply can cause harmonic vibration. This vibration leads to poor surface finishes and severe motor strain.
Leveling forms the mechanical foundation of your setup. A twisted chassis binds the drive wheels and ruins cutting accuracy.
Clean the immediate floor area to remove debris.
Place the machine in its permanent operating location.
Rest a precision machinist's level across the main machine bed.
Check both the longitudinal and transverse axes.
Adjust the leveling feet to bring the bed into perfect alignment.
Insert steel shims under the feet if your floor has deep depressions.
We highly recommend a thorough component audit before proceeding. New units often arrive securely strapped to pallets. You must verify you have removed all temporary shipping brackets. These brackets secure the cutting head during transport but restrict movement during operation. Inspect legacy or used units carefully. Look closely for worn bearings. Check the main cast iron components for hairline cracks. Replace compromised parts immediately to prevent catastrophic failure.
Electrical integrity protects both the operator and the machine. Ensure proper voltage grounding based on the manufacturer specifications. Verify the emergency stop (E-stop) functionality. Press the E-stop button and confirm the main contactor disengages completely. Clear the infeed and outfeed zones. Remove all tripping hazards. You need unobstructed access to safely load heavy stock material.
Provide at least three feet of clearance around the machine perimeter.
Install dedicated overhead lighting to eliminate shadows on the cutting zone.
Anchor the machine directly to the concrete floor if cutting exceptionally heavy structural steel.
Your objective is to match the blade to the application. You must apply correct tension to prevent lateral deflection under load. Proper tensioning directly dictates the straightness of your cut.
Select the appropriate TPI (Teeth Per Inch) based on the material thickness and profile. Cutting solid bar stock requires a coarse tooth pitch. Cutting thin-wall tubing requires a fine tooth pitch. Using the wrong TPI strips teeth and overheats the metal.
| Material Thickness (Inches) | Recommended TPI (Solid Stock) | Recommended TPI (Tubing/Structural) |
|---|---|---|
| Under 1/4 | 10 - 14 | 14 - 18 |
| 1/4 to 1/2 | 8 - 12 | 10 - 14 |
| 1/2 to 1 | 6 - 10 | 8 - 12 |
| Over 1 | 3 - 6 | 4 - 8 |
Install the blade carefully. The teeth must point toward the motor or drive wheel. Horizontal machines cut on the pull stroke. Inserting the blade backward causes immediate dulling. Ensure the blade is properly seated between the guide rollers. Push the back edge flush against the wheel shoulders. The blade must sit flat on the wheel surface before you apply tension.
Tighten the tension handwheel firmly. Most modern machines include built-in tension gauges. These gauges provide a helpful baseline. However, experienced operators verify tension independently. Pluck the back edge of the blade. Listen for a clear, high pitch. A dull thud indicates loose tension. For absolute precision, use a dedicated blade tension gauge. Aim for 25,000 to 30,000 PSI for standard bi-metal blades.
Under-tensioning represents a major operational risk. It causes "bell-mouthing" where the cut wanders horizontally. It also leads to crooked cuts and premature blade fatigue. Never rely on guesswork when setting tension.
You must ensure the blade tracks consistently along the wheels. It should not ride too hard against the back flange. It also must not slip off the front edge. Proper tracking protects the equipment from excessive wear.
This step requires patience and a systematic approach. Tracking adjustments are highly sensitive. A mere quarter-turn of the tracking bolt yields significant changes. Rushing this process usually results in a derailed blade.
Always disconnect the main power before verifying tracking. Open the wheel covers. Manually rotate the drive wheel clockwise. Observe the blade's position carefully on the idler wheel. The blade should climb slightly toward the back flange. It must center itself on the crowned portion of the wheel.
Tweak the tracking set screws on the idler wheel hub to make corrections. Adjust the tilt angle slightly. The blade's back edge should lightly touch the wheel flange. Alternatively, it can sit just a hair away from the flange. It should never grind against the metal lip. Grinding rolls the back edge of the blade and causes friction cracking.
Continue to manually rotate the drive wheel. Complete at least ten full rotations. Watch for any horizontal drift. Once the tracking remains completely stable, lock down the adjustment nuts. Tighten them securely to prevent drift during high-speed operation. Replace the wheel covers before restoring power to the machine.
Adjusting tracking while the blade is running under power.
Failing to apply full tension before adjusting the tracking screws.
Leaving the locking nuts loose, causing immediate derailment upon startup.
You must align the material holding system and the blade guides correctly. This alignment guarantees perpendicular cuts. It also minimizes unnecessary blade exposure. A properly squared vise directly dictates the dimensional accuracy of your final product.
A poorly aligned vise ruins stock material. A properly squared vise reduces secondary machining operations. You avoid wasting time facing off crooked cuts on a milling machine. This precision directly improves overall shop throughput and eliminates costly scrap.
Place a high-quality precision machinist square against the fixed vise jaw. Bring the cutting head down. Rest the other edge of the square gently against the side of the blade. Avoid touching the actual teeth. The teeth possess alternating "sets" which distort the reading. Adjust the vise base until it sits perfectly at 90 degrees to the blade body. Tighten the locking bolts securely. Re-verify the angle after tightening, as bolts can shift the base slightly.
Move the adjustable guide arms as close to the workpiece as possible. Excessive distance between the guides compromises the beam strength of the blade. This weakness allows the blade to flex and wander through the cut.
Adjust the eccentric guide bearings next. Turn the eccentric shaft until the bearings barely touch the side of the blade. They must prevent lateral deflection without actually squeezing the metal. Squeezing the blade causes massive friction. This friction leads to rapid work-hardening and inevitable blade fracture. Adjust the top backup bearing so it sits just behind the back edge of the blade. It should only make contact during active cutting.
| Parameter | Optimal Setup | Poor Setup |
|---|---|---|
| Arm Distance | 1/2 inch from workpiece | Several inches from workpiece |
| Side Bearings | Barely touching blade body | Squeezing blade tightly |
| Backup Bearing | 0.005 inch gap from back edge | Pushing hard against back edge continuously |
| Blade Set Clearance | Bearings sit behind the teeth | Bearings ride over the teeth |
Your final objective is to validate lubrication flow, motor function, and downfeed rates. You must complete this verification before committing to expensive stock material.
Proper coolant mixture and delivery achieve three critical outcomes. Coolant washes away abrasive chips. It dissipates intense cutting heat. It prevents chip-welding on the teeth. Utilizing a robust flood coolant system extends overall blade life by up to 300%.
Mix a high-quality water-soluble synthetic or semi-synthetic coolant. Follow the manufacturer's specific dilution instructions. Use a refractometer to verify the Brix reading. We generally recommend an 8-10% concentration for cutting general steel. Fill the reservoir basin completely.
Position the articulated coolant nozzles carefully. They must flood the cut directly at the entry point. The fluid should coat the blade right before it enters the material. Adjust the flow valves to provide a steady, generous stream. A weak trickle fails to clear chips from the gullets.
Turn the machine on without any material in the vise. This controlled dry run mitigates operational risks. Observe the blade tracking under full power. Listen closely for abnormal bearing noise or harmonic whining. Verify the hydraulic downfeed cylinder next. Open the feed valve slowly. The cutting head must descend smoothly. It should never drop abruptly or stutter. Close the valve to ensure the head holds its position firmly.
Verify all wheel covers are secured and bolted shut.
Confirm the coolant pump primes successfully and delivers fluid.
Test the automatic shut-off switch at the bottom of the stroke.
Double-check the tension gauge reading one last time.
Proper setup of a horizontal band saw is never a one-time event. It represents a strict baseline for everyday manufacturing. Long-term cutting success relies entirely on precise leveling, accurate blade tensioning, verified tracking, and squared workholding. Skipping any of these steps compromises both operator safety and component quality.
Take immediate action to lock in your setup. Document the ideal tension and tracking settings in a logbook. Begin with controlled test cuts on scrap material of a known dimension. Verify the squareness using a micrometer before moving to high-volume production runs. Implement a strict preventative maintenance schedule. You should check the guide bearings for wear and measure coolant quality weekly. A well-maintained machine delivers years of reliable, precise service.
A: Crooked cuts are typically caused by insufficient blade tension, worn guide bearings, or the guide arms being positioned too far from the workpiece. Verify tension and square the vise as first troubleshooting steps.
A: It should be tight enough to prevent deflection during the cut. For precise measurement, a blade tension gauge is recommended (typically 25,000 to 30,000 PSI for bi-metal blades). Relying solely on factory tension knobs can lead to under-tensioning.
A: Blade derailment is a symptom of improper wheel alignment (tracking) or severe under-tensioning. Re-calibrate the idler wheel tracking adjustment while manually rotating the blade to ensure it rides near the flange without climbing it.
A: While some materials like cast iron or specific plastics can be cut dry, utilizing coolant for steel and aluminum is highly recommended to flush chips, reduce thermal shock, and maximize blade longevity.
