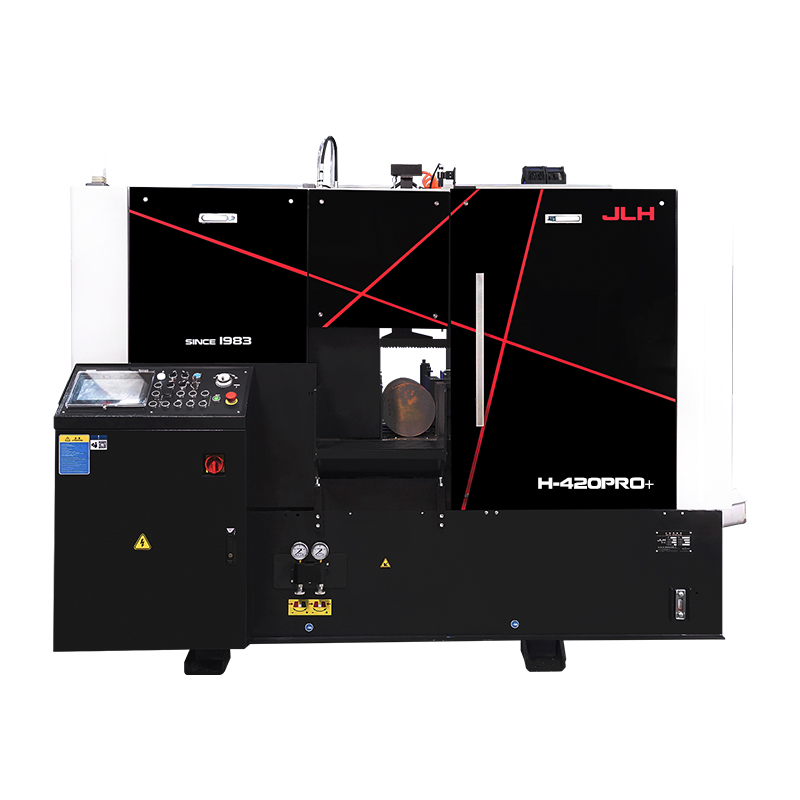

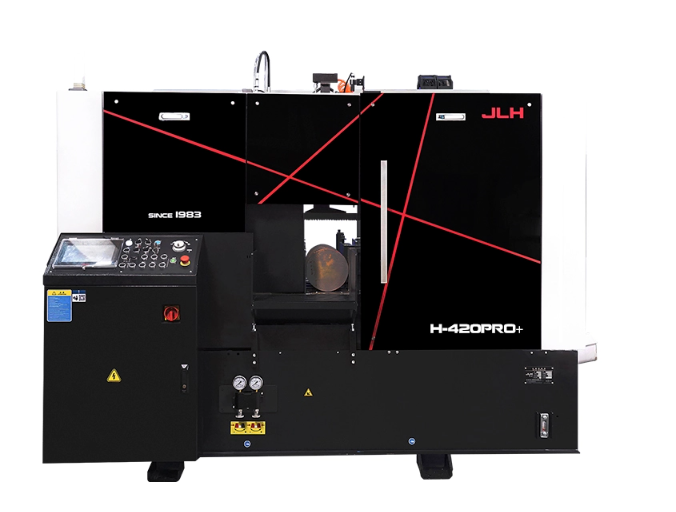

H-420PRO+ Precision Band Saw Machine Profile Cutting

Designed exclusively for professional industrial users requiring tight tolerances and consistent batch performance, this precision horizontal band saw for metal delivers unmatched cutting accuracy, adaptability for complex workpiece types, and long-term reliability for precision fabrication operations. As a top-rated profile cutting band saw, it eliminates secondary finishing work, reduces material waste, and elevates production quality for precision metal processing.

Key Features & Core Benefits

JLH-EHA Electro-Hydrostatic Actuation System

Our proprietary JLH-EHA system delivers ultra-precise, responsive control of feed rate and cutting pressure, achieving a cutting flatness and verticality deviation of ≤0.2/100mm. This adaptive system optimizes performance for both thin-walled profiles and thick high-strength materials, extending saw blade service life by more than 25% and reducing long-term consumable costs.

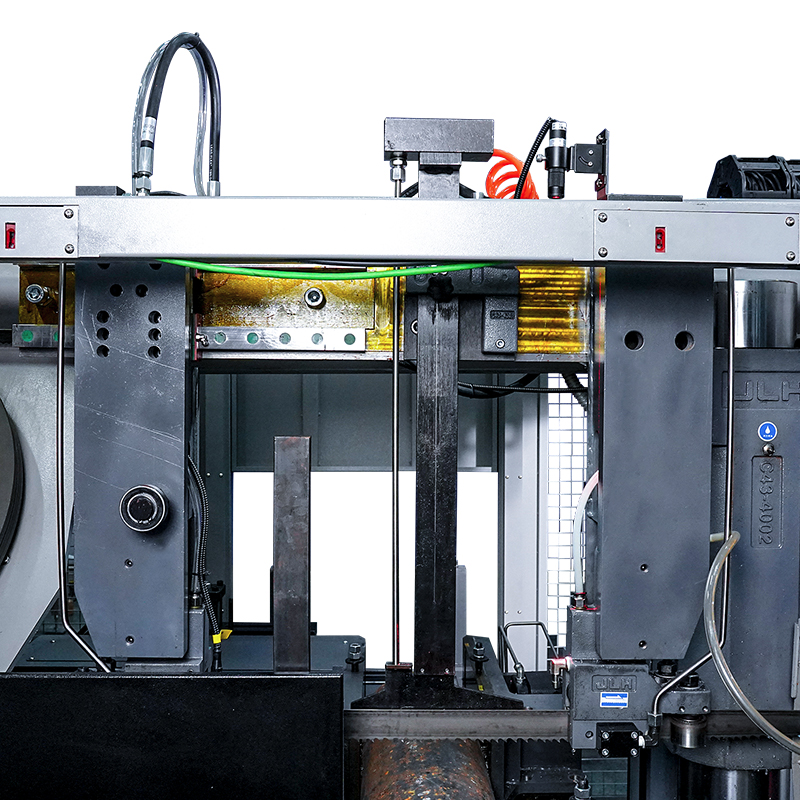

Hydraulic Movable Guide Arm

The hydraulically actuated guide arm automatically adjusts in sync with vise clamping width, maintaining optimal blade support for every workpiece size. This minimizes blade vibration, ensures a stable cutting path, and delivers consistent precision across varying workpiece widths, critical for high-volume batch profile cutting.

High-Precision Blade Deviation Detector

Equipped with high-sensitivity sensors that continuously monitor blade tracking, the system instantly triggers visual and audible alarms, automatic correction, or emergency shutdown if blade deviation is detected. This prevents workpiece dimensional errors, eliminates costly scrap, and protects the saw blade from avoidable damage.

Integrated Cutting Optimization & Safety Systems

Standard features include sawing depth control, blade breakage detection, sawbow anti-collision detection, and CE-certified fully enclosed safety protection, ensuring safe, repeatable cutting performance for every production run.

Industrial Applications

The H-420PRO+ Precision Band Saw Machine is purpose-built for precision industrial operations, including automotive component manufacturing, aluminum and steel profile processing, precision machinery fabrication, aerospace auxiliary parts production, thin-walled metal tube cutting, and high-tolerance batch metal part processing. It is the ideal cutting solution for professional precision metal fabrication enterprises and specialized manufacturing workshops requiring consistent, ultra-accurate cutting performance.

FAQs

What is the cutting accuracy of the H-420PRO+ precision band saw?

This CNC metal profile cutting band saw achieves a cutting flatness and verticality deviation of ≤0.2/100mm, delivering industry-leading precision for tight-tolerance profile and solid metal cutting.

Can this machine handle both thin-walled profiles and high-strength solid materials?

Yes, the adaptive JLH-EHA system automatically optimizes cutting parameters for both delicate thin-walled profiles and thick, high-strength solid metal workpieces, ensuring consistent performance across all material types.

What is the shortest cut-off length supported for batch processing?

The machine supports a minimum cut-off piece length of just 5mm, with a shortest individual cut remnant length of 20mm, making it ideal for high-volume precision batch cutting of small components.

Looking for a reliable, high-accuracy high-precision metal fabrication band saw to elevate your precision manufacturing quality and efficiency? Contact our technical sales team today to request a customized quote, download the official product flyer, or schedule a one-on-one technical consultation to match the H-420PRO+ to your specific precision cutting requirements.
