Engineered to balance production efficiency, cutting accuracy, and operational flexibility, this CNC industrial pipe cutting saw delivers consistent, burr-free cuts for both hollow pipe and solid metal materials, making it an ideal fit for medium to high-volume manufacturing facilities. Built to CE safety standards, this automatic metal bar saw integrates advanced servo control, energy-efficient drive technology, and fully automated material handling to streamline production workflows, reduce manual labor, and minimize material waste for industrial operators.

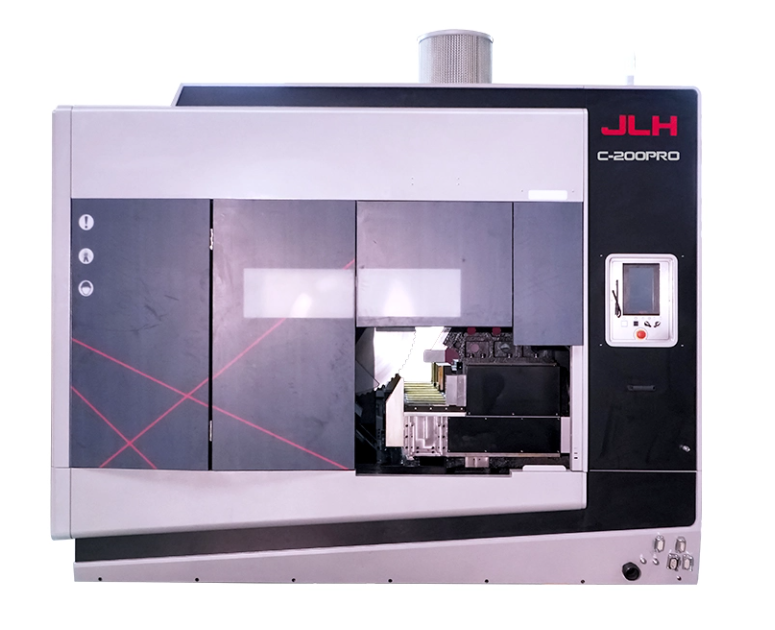

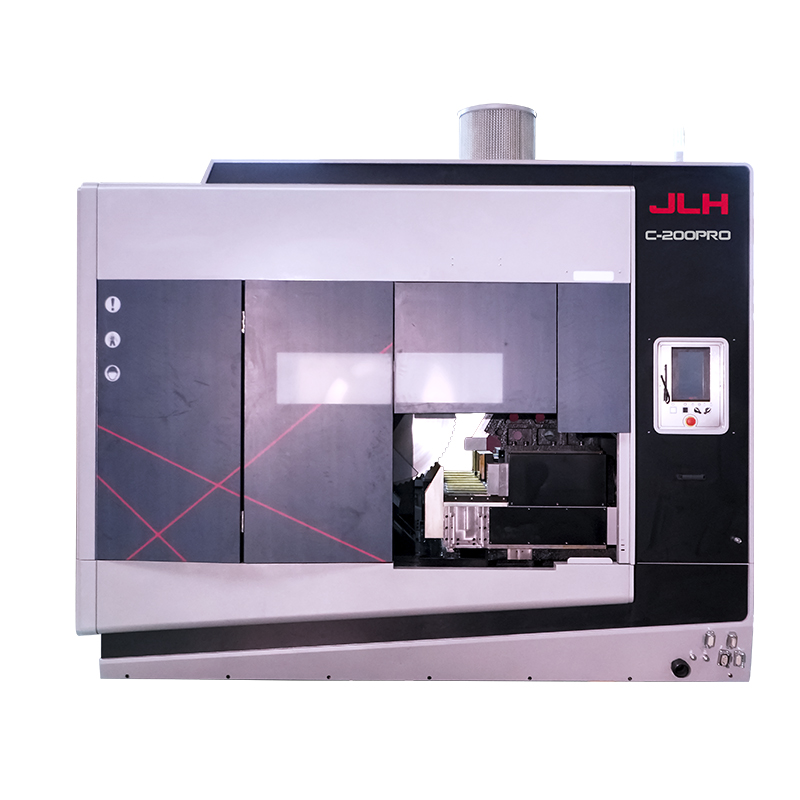

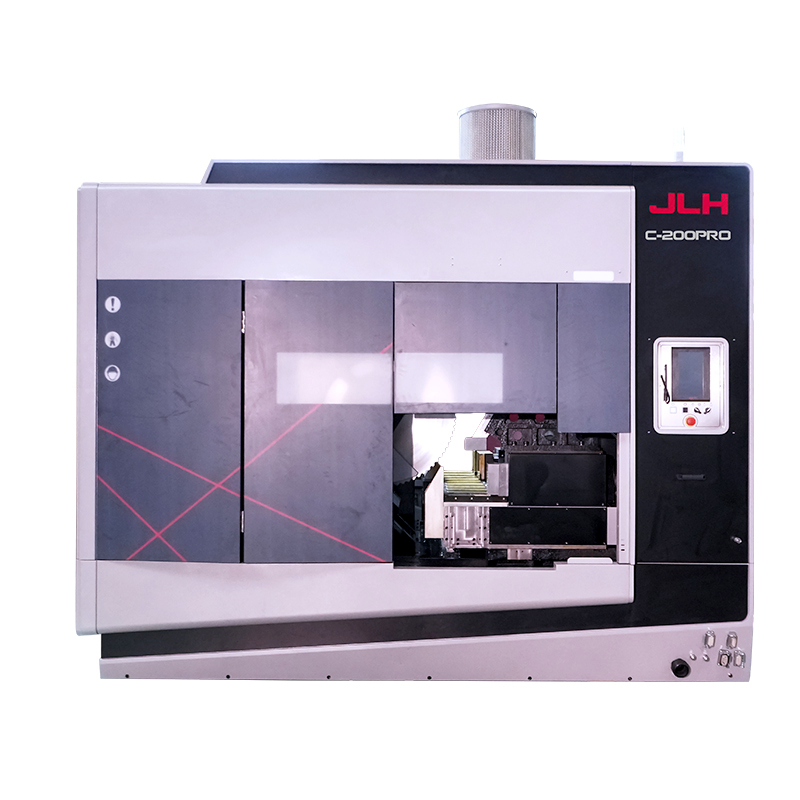

The C-200PRO Automatic Circular Saw Machine delivers exceptional cutting accuracy for round bars ranging from Ø80mm to Ø200mm, and square profiles from 80mm to 155mm, with a minimum cut-off piece length of just 15mm. Its 30kW permanent magnet main drive motor, paired with an infinitely variable cutting speed range of 20-80r/min, ensures clean, burr-free cuts for both hollow pipe and solid bar materials, eliminating secondary finishing work and reducing overall production time.
This precision metal fabrication cutting machine features a high-efficiency permanent magnet main drive, which reduces energy consumption by up to 30% compared to traditional induction motors, while delivering consistent power for continuous 24/7 production. The robust 48kW total connected load, paired with a 5.5kW hydraulic motor, ensures stable performance even during extended batch runs, minimizing downtime and maximizing operational reliability.
Equipped with a 0.8M servo feed system, the machine offers a 1000mm single-stroke automatic feed length and multi-stroke feed capability up to 9999mm, supporting fully automated batch processing. The 150mm/s rapid motion speed drastically reduces non-cutting cycle time, while the integrated 1.5M power output material table and 5.5m belt infeed magazine for round materials streamline end-to-end material flow for high-volume production.
Fully compliant with CE electrical and safety standards, the machine features a fully enclosed safety guard, integrated dust collection system, 2L mist spray system, and cutting pipe blast device, ensuring a clean, safe working environment. Additional operator-friendly features include an HMI + button control interface, LED working lights, cabinet air conditioner, and auto lubrication system, simplifying operation and reducing routine maintenance.
Every C-200PRO Automatic Circular Saw Machine comes factory-equipped with: CE-standard fully enclosed safety protection, 45-degree servo feed system, CE-certified electrical safety system, high-efficiency permanent magnet main drive motor, HMI + button control interface, frequency inverter, 2L mist spray system, dust collection device, cutting pipe blast device, cabinet air conditioner, LED working light, automatic spiral chip conveyor, vise pressure regulator, motorized chip brush, top clamp, hydraulic cooling fan, auto lubrication device, roller type work table, 0.8M servo feed mechanism, 1.5M power output material table, 5.5m belt infeed magazine for round materials, 70L sawdust collection cart, standard tool kit, and 1× circular saw blade.
Tailor your machine to your specific production needs with optional upgrades: UL electrical safety certification, JLH-EHA control system, Saw Master system, 2M servo power output material table, and container transport underframe.
The C-200PRO Automatic Circular Saw Machine is optimized for a wide range of industrial metal processing operations, including: automotive component manufacturing, HVAC pipe and tube fabrication, furniture hardware production, general mechanical engineering, light steel structure processing, metal pipe distribution and cutting, agricultural machinery part production, and stainless steel product manufacturing.
This CNC industrial pipe cutting saw is designed to process a wide range of metal materials, including carbon steel, stainless steel, alloy steel, and aluminum, for both hollow pipe/tube and solid bar profiles.
The machine can produce cut-off pieces as short as 15mm, making it ideal for manufacturing small, precision metal components for a variety of industrial applications.
Yes. The integrated servo feed system supports multi-stroke feeding up to 9999mm, enabling fully unattended batch production for medium to high-volume manufacturing operations.
Looking to optimize your pipe and bar cutting workflows with reliable, high-precision automation? Reach out to our expert technical team today to request a personalized quote for the C-200PRO Automatic Circular Saw Machine, book a live virtual demonstration, or discuss your unique production requirements. We provide tailored industrial cutting solutions to help you boost production efficiency, improve cut quality, and reduce operational costs for your manufacturing facility.
