Aluminum is a remarkably machinable material. However, its low melting point and gummy nature make cutting structural shapes incredibly challenging. C-channels and architectural extrusions behave quite differently than solid metal blocks. Unlike solid bar stock, channels feature thin, variable cross-sections. These delicate shapes invite aggressive vibration during the cutting process. They also risk severe blade tooth stripping and permanent material deformation if you handle them improperly.

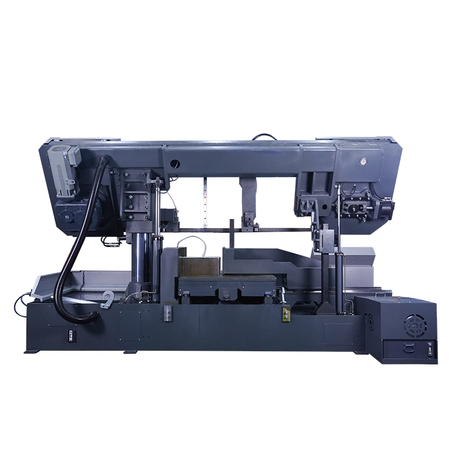

Successfully leveraging a horizontal band saw for aluminum channel requires precise alignment of several technical factors. You must optimize your blade geometry, cutting speed, active lubrication, and workholding setup. This guide breaks down the exact requirements you need to understand. We will show you how to achieve clean, square cuts consistently. You will learn to execute these cuts without sacrificing your blade life or damaging the structural integrity of the metal.
Blade Selection is Non-Negotiable: Adhere to the "3-tooth rule" (at least three teeth engaged in the material wall at all times) using a bi-metal blade to prevent tooth stripping.
Orientation Dictates Accuracy: Clamp C-channels with the legs facing down or against the solid vise jaw to minimize vibration and prevent the blade from dropping through empty space.
Heat is the Enemy: Aluminum chips weld to blade teeth easily (galling); continuous lubrication (mist or flood) is required, not optional.
Control the Downfeed: A horizontal band saw's gravity or hydraulic downfeed must be carefully calibrated to prevent the blade from biting too aggressively into thin channel walls.
Standard metal cutting setups frequently fail when processing aluminum because they ignore the fundamental metallurgy of the material. Aluminum possesses uniquely high ductility. High ductility means the metal stretches and bends under pressure before it actually breaks. This specific property causes freshly cut chips to fuse directly onto the blade teeth. We call this frustrating phenomenon chip welding or galling.
When heat builds up rapidly in the cut zone, these melted chips become trapped inside the blade gullets. This buildup turns your sharp blade into a blunt friction tool. It smears the hot metal instead of shearing it cleanly. A smeared cut ruins your dimensional accuracy and creates massive burrs.
C-channels present an entirely different structural hurdle compared to flat plates. Your blade transitions sharply from cutting a thick, solid horizontal web to slicing through thin, parallel vertical legs. This sudden drop in material resistance triggers intense blade chatter. The erratic cutting pressure often leads to wandering cuts. Your downfeed pressure must adapt to these geometric changes dynamically. Static feed rates fail because they cannot adjust to the sudden lack of metal density.
Furthermore, thin-walled architectural profiles crush easily under excessive vise pressure. Robotic aluminum channels suffer similar fates. You cannot simply crank down the vise handle until it stops. You need highly specific workholding strategies to secure the metal safely. Distorting the channel before the cut even begins guarantees a rejected part. You must balance secure clamping against the yield strength of the hollow shape.
You should always choose bi-metal blades over standard carbon steel alternatives. M42 or M51 bi-metal configurations offer superior longevity and heat resistance. They easily withstand the immense friction generated during continuous metal cutting. M42 provides excellent wear resistance for standard alloys. M51 tackles tougher, high-silicon aluminum extrusions without dulling prematurely.
You must always apply the "3-tooth rule" for thin-walled sections. You must keep at least three teeth engaged in the material wall simultaneously. If fewer teeth engage, they straddle the thin wall. The motor torque then snaps them off violently. For 1/8" to 1/4" wall thicknesses, a 10/14 or 14/18 variable pitch blade works perfectly. Variable pitch designs break up harmonic vibrations. They alternate tooth spacing to prevent rhythmic chatter from destroying the extrusion.
Aluminum requires significantly higher blade speeds than mild steel. Fast movement clears sticky chips effectively before they can melt. We recommend operating your machine in the 250–400 Surface Feet Per Minute (SFPM) range. Adjust this target speed based on the specific alloy temper. Tough 6061-T6 aluminum handles higher speeds exceptionally well. Softer 5052-H32 variants might require careful speed adjustments to prevent edge smearing.
Flood coolant works best for high-volume production environments. It flushes chips away instantly and dramatically lowers cutting temperatures. Conversely, Minimum Quantity Lubrication (MQL) misting systems keep shop floors much cleaner. They deliver precise, tiny oil droplets directly to the cutting zone. This mist lubricates the teeth without flooding your workspace or requiring secondary part washing. As a fallback, stick wax helps dry saws. However, wax remains less effective for continuous channel processing because you must pause the machine to reapply it manually.
| Material Wall Thickness | Recommended TPI (Variable) | Recommended SFPM | Optimal Coolant Strategy |
|---|---|---|---|
| Under 1/8" (Ultra-thin) | 14/18 or 18+ | 300 - 400 | MQL Mist |
| 1/8" to 1/4" | 10/14 | 250 - 350 | MQL Mist or Flood |
| 1/4" to 1/2" | 8/12 | 200 - 300 | Flood Coolant |
| Over 1/2" (Heavy Extrusion) | 6/10 or 5/8 | 200 - 250 | Flood Coolant |
Optimal placement means clamping channels with the legs pointing down. This forms an inverted "U" shape against the machine bed. You can also nest them securely against the fixed jaw. This downward stance ensures the blade engages a consistent cross-section initially. Crucially, it prevents the saw bow from violently dropping through empty space after breaching the top web.
You must absolutely avoid pointing the legs up. Upward-facing legs trap metal chips inside the channel trough. The blade then recuts these loose chips, which ruins the teeth. Upward legs also create a tuning-fork effect. This vibration causes deafening chatter and destroys dimensional accuracy.
Delicate profiles require extra care during your setup phase. VEX robotics channels and intricate architectural extrusions crush very easily. We strongly recommend using custom backing blocks inside the channel void. You can mill these blocks from scrap wood or hard plastic. Alternatively, you can print custom 3D inserts to match the internal void perfectly.
Soft jaws help distribute clamping forces evenly across the extrusion surface. Polyurethane or soft aluminum jaws prevent vise-crush on sensitive, anodized surface finishes. They grip the metal securely without leaving permanent indentation marks.
You can stack multiple channels to save time during extensive production runs. However, nested pieces tend to spin or shift out of square during the cut. Always apply heavy-duty top-clamps to secure the bundle vertically. You might also consider tack-welding the sacrificial ends together. This locks the entire stack rigidly in place. Once secured, the nested bundle behaves exactly like a solid block of metal.
Following a strict operational sequence ensures repeatable, high-quality results. Skip these steps, and you risk ruining expensive raw material.
Pre-Cut Inspection: Verify your blade tension first. Proper tension prevents wandering cuts through the thin vertical legs. Next, inspect your guide arm positioning. Move the adjustable guide arms as close to the material as safely possible. Ensure the wire chip brush actively engages the blade teeth. It must clear aluminum flakes from the gullets continuously. A clogged blade stops cutting and starts burning immediately.
Vise Placement: Position your intended cut line as close to the vise jaws as possible. Close proximity minimizes harmonic vibration in the unsupported metal length. Secure the channel firmly but avoid over-tightening. Use your customized soft jaws if you are cutting anodized or delicate architectural pieces.
Downfeed Calibration: Adjust the hydraulic cylinder to maintain a slow, highly controlled descent. The saw frame must never "free-fall" through the hollow center of the channel. Set the feed rate to accommodate the thinnest section of the extrusion. A conservative feed rate protects the delicate teeth from sudden, violent impacts.
The Cut and Post-Processing: Turn on your coolant flow before the blade touches the metal surface. Let the saw machinery do the actual work. Do not force the bow down manually to speed up the process. Once the cut finishes, retract the blade carefully. Finally, deburr the sharp inner channel edges. A specialized Noga tool or a fine wire wheel removes burrs cleanly. This ensures safe handling downstream.
Defects happen even under optimal conditions. Understanding the root causes saves you significant time and material costs.
Defect: Crooked or Wandering Cuts. Low blade tension often causes horizontal deflection. Worn guide bearings fail to hold the blade square against the metal. Excessive downfeed pressure pushes the blade off its intended path. Fix this immediately by tightening tension to the manufacturer specifications. You must also reduce your hydraulic feed pressure.
Defect: Stripped Blade Teeth. Using a coarse-tooth blade on thin channel walls ruins teeth quickly. The saw dropping too fast into the void also snaps them off. The teeth catch on the thin edge and shear directly off the band. Fix this by switching to a higher TPI variable pitch blade. Tighten your hydraulic descent valve to slow the drop rate.
Defect: Burnt or Melted Edges. Insufficient coolant leads directly to thermal buildup. Running the blade too slowly generates intense friction heat. This melts the aluminum instead of shearing it cleanly. Fix this by increasing your SFPM to the recommended 250-400 range. Visually verify your MQL or flood fluid flow before cutting.
Inspect wire brushes daily for bristle wear and alignment.
Calibrate hydraulic feed cylinders weekly to ensure smooth resistance.
Check coolant refractometer readings to ensure proper fluid dilution ratios.
Verify guide bearing clearances using a standard feeler gauge monthly.
Cutting aluminum channel safely and accurately is an exercise in managing heat, tooth engagement, and vibration. You must control your hydraulic feed rates carefully to accommodate variable cross-sections. Balancing the right bi-metal blade pitch against continuous fluid lubrication ensures professional results. Following these exact structural guidelines prevents ruined materials and extended downtime.
Audit your current blade stock today. Check your tool inventory for appropriate variable-pitch bi-metal blades. Assess your machine's coolant delivery system thoroughly. Upgrade to an MQL system if your shop floor requires cleaner operations. Do this before initiating any high-volume aluminum runs to guarantee maximum efficiency. For tailored advice on equipment upgrades, feel free to contact a specialist regarding your horizontal band saw operational needs.
A: While frequently attempted by DIYers, it is highly risky and not recommended for production. Wood saws run at drastically higher speeds (often 3,000+ SFPM). This melts aluminum, instantly clogs the blade, and can cause hazardous blade breakage. Stick to dedicated metal-cutting equipment.
A: Use a very fine-tooth blade with 18 or more TPI. Support the channel directly from the inside using a sacrificial wooden block or 3D-printed insert. Utilize a slow, highly controlled hydraulic downfeed to prevent aggressive biting and structural collapse.
A: A benchtop or light-industrial horizontal band saw proves ideal for this task. Look for variable speed control, precise angle adjustment for miter cuts, and reliable gravity or hydraulic feed control. Integrated coolant capability remains a major plus for maintaining extrusion finish.
