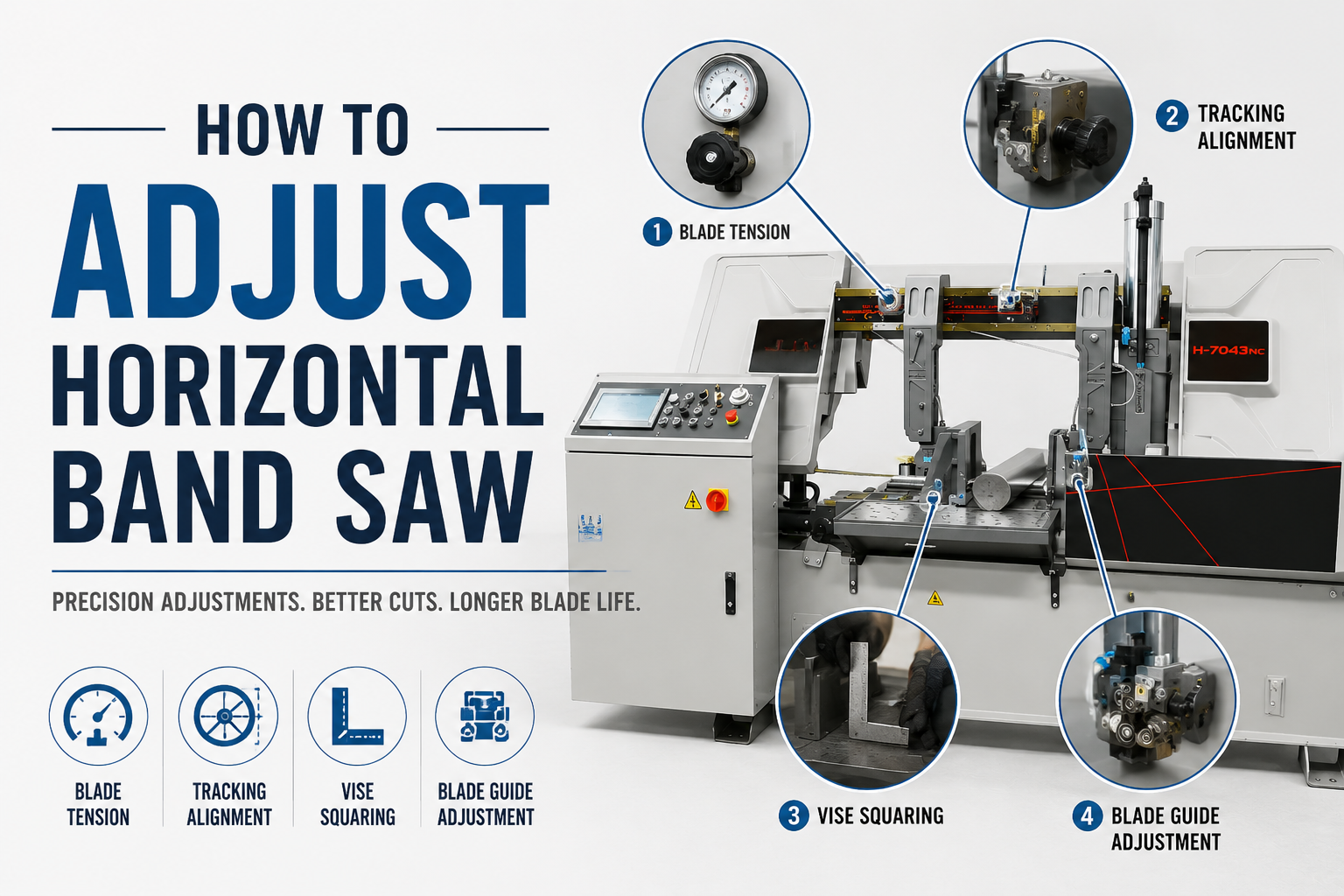

A misaligned cutting machine operates as a silent drain on your shop floor profitability. Crooked cuts and premature blade failures create immediate frustration for operators. However, improper calibration leads directly to wasted raw materials. It increases operator downtime and compromises essential safety compliance across all shifts. Adjusting your equipment is not just a routine maintenance task. It serves as a critical standard operating procedure. This mechanical alignment dictates your overall operational efficiency and return on investment. Our guide outlines the exact calibration frameworks required to maximize blade life. We will show you how to ensure repeatable tolerances for your daily production runs. You will also learn to evaluate specific mechanical warning signs. A machine failing to hold adjustments often signals an immediate need for an equipment upgrade. Relying on objective measurement tools rather than operator intuition remains absolutely key. Let us dive into the mechanics of keeping your production running smoothly.
Precision dictates ROI: Proper blade tension and tracking directly reduce consumable costs and prevent material scrap.
Hardware matters: Evaluating guide systems (roller bearings vs. carbide blocks) and tensioning mechanisms (manual vs. hydraulic) is critical for scaling production.
Standardized calibration: Eliminating "operator feel" in favor of measurable metrics (tension gauges, machinists' squares) ensures consistent output across shifts.
Risk mitigation: Routine adjustments reduce harmonic vibrations, mitigating the risk of catastrophic blade failure and supporting safety compliance.
Mechanical misalignment connects directly to severe operational bottlenecks. When your machine produces wavy cuts, you lose money instantly. Operators must perform secondary machining operations just to fix those dimensional errors. They spend hours facing parts on a mill because the initial cut lacked squareness. Furthermore, snapped blades halt production timelines entirely. You lose valuable labor hours replacing broken consumables.
A successful adjustment protocol yields highly predictable outcomes. A properly calibrated machine will always produce straight cuts within your specified tolerances. It will operate quietly without generating destructive harmonic chatter. Most importantly, it will yield predictable blade lifespans. You can forecast your consumable spending accurately.
You must diagnose mechanical symptoms correctly before turning any wrenches. Common warning signs include:
Blade wandering or bell-mouthing: This symptom typically indicates insufficient blade tension. It also points to worn guide bearings failing to support the blade body.
Tooth stripping: Operators often blame the blade manufacturer. However, tooth stripping rarely indicates a blade defect. It points to incorrect feed rates. Excessive down-pressure shears the teeth off the backing. Using an improper blade pitch for the material cross-section also causes immediate stripping.
Blade popping off wheels: This event serves as a definitive sign of poor tracking. Highly degraded wheel flanges also cause catastrophic derailment.
Many experienced operators still rely on the "pluck test." They pluck the back of the blade and listen to the pitch. This method remains incredibly dangerous and entirely inaccurate. Ambient shop noise and varying operator hearing levels make consistent tuning impossible. We strongly advocate using a dedicated blade tension gauge. A gauge ensures you achieve the manufacturer-recommended PSI accurately. Bi-metal blades typically require 25,000 to 35,000 PSI for optimal performance.
Evaluating your tensioning hardware helps you understand scaling limitations. Manual tensioning wheels remain prone to operator error. Operators under-tighten blades to avoid effort, or over-tighten them, risking premature stretching. Fully hydraulic tensioning systems represent a critical feature for high-volume shops. Hydraulic tensioners automatically compensate for blade stretch as the metal heats up during operation.
| Tensioning System | Accuracy Level | Maintenance Requirement | Best Application |
Manual Wheel | Low (Relies on operator effort) | Low | Small shops, intermittent cutting |
Hydro-Mechanical | Medium-High | Moderate | Medium fabrication shops |
Fully Hydraulic | Very High (Constant PSI) | Requires fluid checks | High-volume production facilities |
Tracking calibration ensures the blade runs centered on the drive wheels. You must follow a strict step-by-step logic for safe tracking adjustments.
Disconnect the main power supply completely.
Back off the blade guides entirely so they do not touch the blade.
Manually rotate the drive wheel while observing the blade position.
The blade should ride smoothly on the wheel. The gullets must sit just off the edge of the wheel lip. This exact positioning protects the set of the teeth. It prevents the teeth from flattening against the wheel surface without risking derailment.
Always approach chronic tracking issues with skepticism. Does your machine require tracking adjustments every single week? A loose blade rarely causes chronic tracking failure. You likely suffer from failing wheel bearings. A warped cast iron frame also prevents the machine from holding alignment. Constantly turning the tracking bolts only masks deeper mechanical failures.
Squaring the vise to the blade ensures batch-cutting consistency. Off-square vises ruin production runs instantly. You must use a high-precision machinist’s square for this task. Place the square firmly against the solid fixed jaw of the vise. Rest the other edge gently against the body of the blade. You must avoid touching the teeth. The alternating set of the teeth will throw off your measurement entirely. Always zero out your fixed jaw before adjusting your angle settings.
Guide arm positioning plays a critical role in cut accuracy. Keep the adjustable guide arm as close to your workpiece as mechanically possible. An excessive gap between the arm and the material leads directly to blade deflection. The blade will twist under cutting pressure. If you cut a two-inch pipe, set the guide arm just slightly wider than two inches.
You must evaluate your guide systems based on your production goals. Different features lead to different operational outcomes.
Roller Bearing Guides: These guides work exceptionally well for general-purpose applications. However, they require precise gap calibration. You must use a feeler gauge to establish the correct clearance (usually 0.001 to 0.002 inches). Too tight, and you pinch the blade. Too loose, and the blade wanders.
Carbide Guide Blocks: These blocks remain superior for heavy-duty industrial applications. They offer incredibly rigid support for massive cuts. However, they require stringent coolant maintenance. Coolant provides essential lubrication. Without proper coolant flow, friction buildup will overheat the blade and destroy the carbide blocks.
Operators frequently confuse down-pressure and feed rate. You must understand the distinct difference to operate effectively. Down-pressure represents the physical downward force applied to the material. Feed rate dictates the physical speed of descent through the cut. They operate as independent variables.
Material-specific tuning requires adjusting both variables carefully. Harder alloys demand distinct settings. You must apply higher down-pressure to penetrate the tough surface. However, you must utilize a slower feed rate to prevent tooth overload. Thin-walled tubing requires the exact opposite approach. You need minimal pressure and a highly restricted feed rate. This careful combination prevents the teeth from snagging the thin material walls.
Evaluate your current feed systems critically. Basic gravity-feed systems utilize heavy springs to control descent. They present severe limitations for consistent production. The pressure changes constantly as the spring stretches. Dual-valve hydraulic descent cylinders offer far superior control. One valve manages pressure while the other manages descent speed.
Shops moving toward automation must prioritize advanced machinery. You should seek out a horizontal band saw equipped with programmable, hydraulically controlled feed rates. These automated systems remove operator guesswork completely. They allow you to scale your production safely and consistently.
The highest risk in machine maintenance stems from a lack of standardized training. Leaving critical adjustments to informal "tribal knowledge" leads directly to erratic machine performance. One shift sets the guides tightly. The next shift loosens them. You must standardize your maintenance procedures and document every step clearly.
Safety compliance remains absolutely non-negotiable. OSHA regulations outline strict considerations regarding machine guarding. You must enforce Lockout/Tagout (LOTO) procedures strictly. Operators must isolate all energy sources before adjusting wheels, guides, or blade tension. An accidental startup during calibration creates severe amputation risks.
Eventually, you must face the shortlisting logic of repairing versus replacing your equipment. How do you evaluate if an older saw justifies further calibration? Inspect the core structural components. If the cast iron frame has warped over decades of use, adjustments will never hold. If the hydraulic cylinders constantly bleed pressure, your feed rates will fluctuate wildly. Endlessly tuning a degrading machine wastes valuable labor hours.
You must define the tipping point for your operation. Upgrading to a modern machine with semi-automatic or fully automatic features often yields tremendous returns. It eliminates the constant need for manual tweaking. If you struggle to maintain alignment and need professional guidance on your equipment options, feel free to contact us.
Adjusting your cutting equipment requires precise alignment of multiple interconnected systems. You must balance tension, tracking, guide spacing, and feed controls perfectly. Relying on objective measurement tools rather than simple operator intuition remains the key to consistent manufacturing. You cannot guess your way to perfectly square cuts.
Routine, standardized calibration maximizes your blade life. It protects your profit margins by drastically reducing material scrap and secondary machining times. Precision mechanical alignment serves as the foundation of your entire fabrication process.
If your current machine fails to hold tension properly, take immediate action. If it requires constant tracking realignment weekly, it is time to evaluate your hardware deeply. Compare your current maintenance labor costs against the substantial efficiency gains of modern, hydraulically controlled equipment. Make the choice that permanently elevates your production floor.
A: Tension should be verified at the start of every shift and whenever a new blade is installed. Use a proper tension gauge. Tension should also be released if the saw sits idle for extended periods to prevent blade memory and unnecessary wheel wear.
A: A new blade cannot fix misaligned guides or an improperly squared vise. It also cannot fix a blade guide arm positioned too far from the material. Check your guide bearing clearances and ensure the fixed vise jaw is perfectly perpendicular to the blade.
A: Yes, if your facility cuts solid bar stock, heavy structural steel, or operates continuously. Carbide guides rigidly reduce blade deflection and handle higher heat. They serve as a standard evaluation criterion for industrial buyers focused on heavy-duty production.
A: Tooth stripping is rarely a manufacturing defect in the blade. It is almost always caused by an incorrect feed rate, excessive down-pressure, or using a blade with an incorrect Teeth-Per-Inch (TPI) pitch for the material's cross-section.
