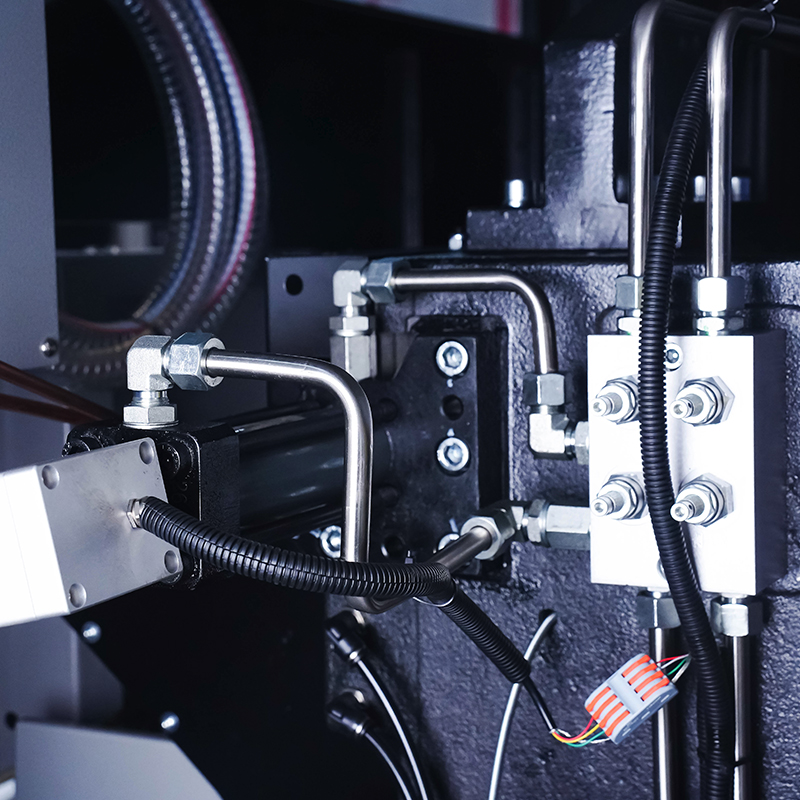

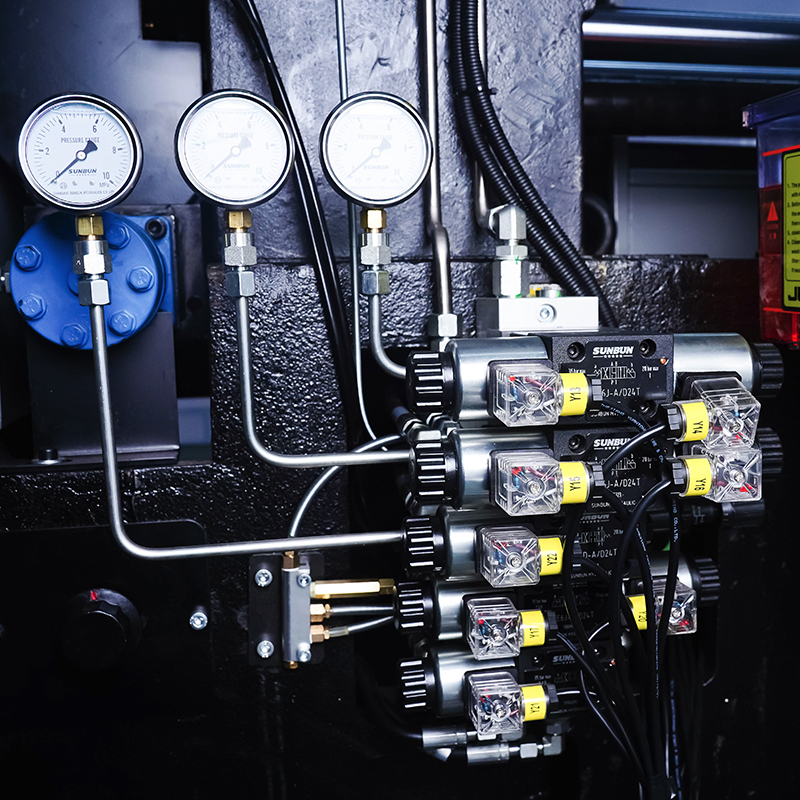

Branch fitting

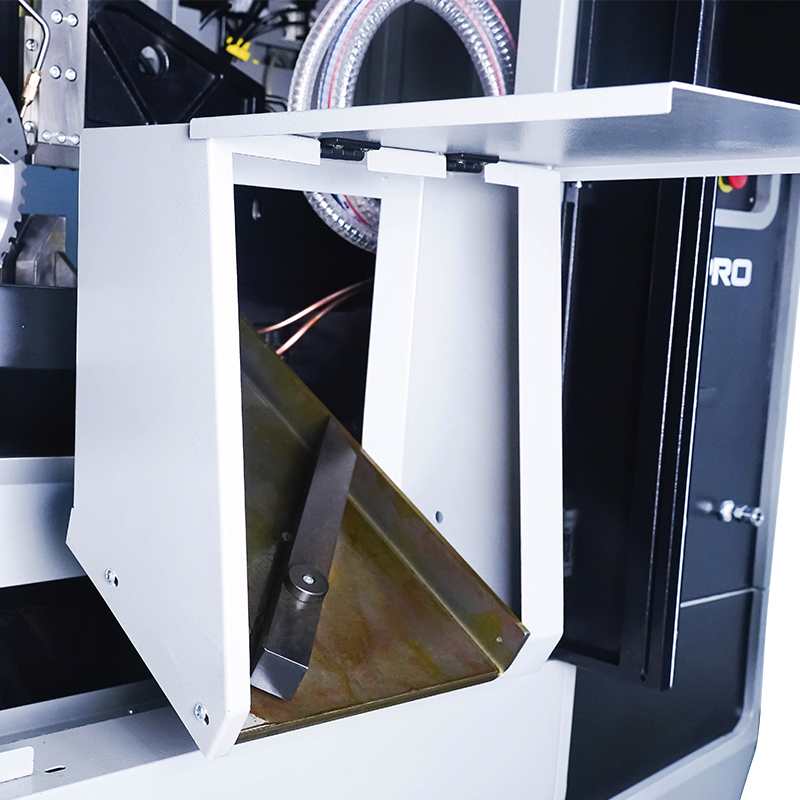

Discharge safety guard

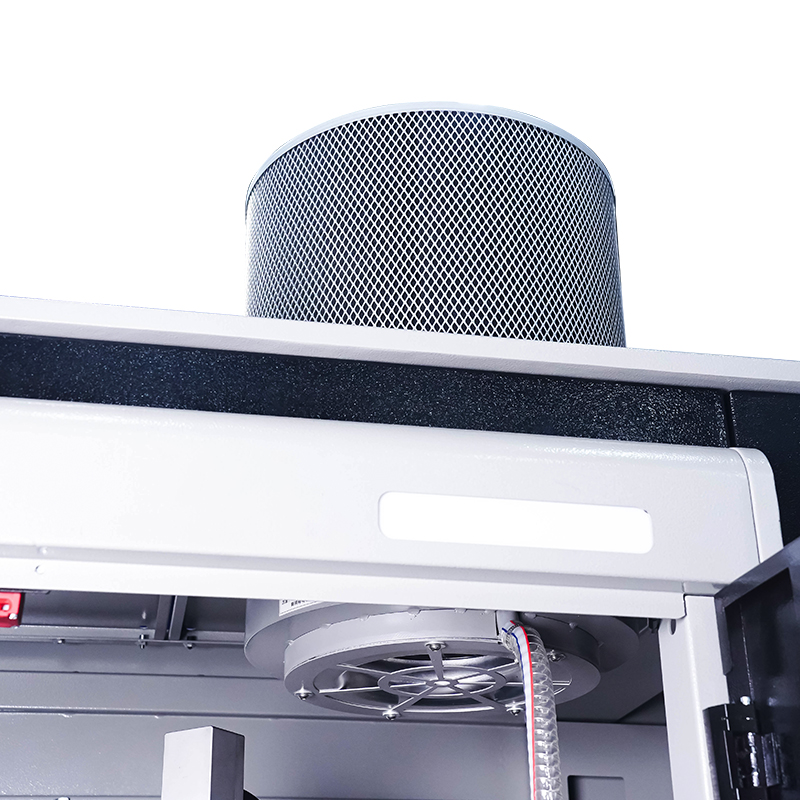

Oil mist collector

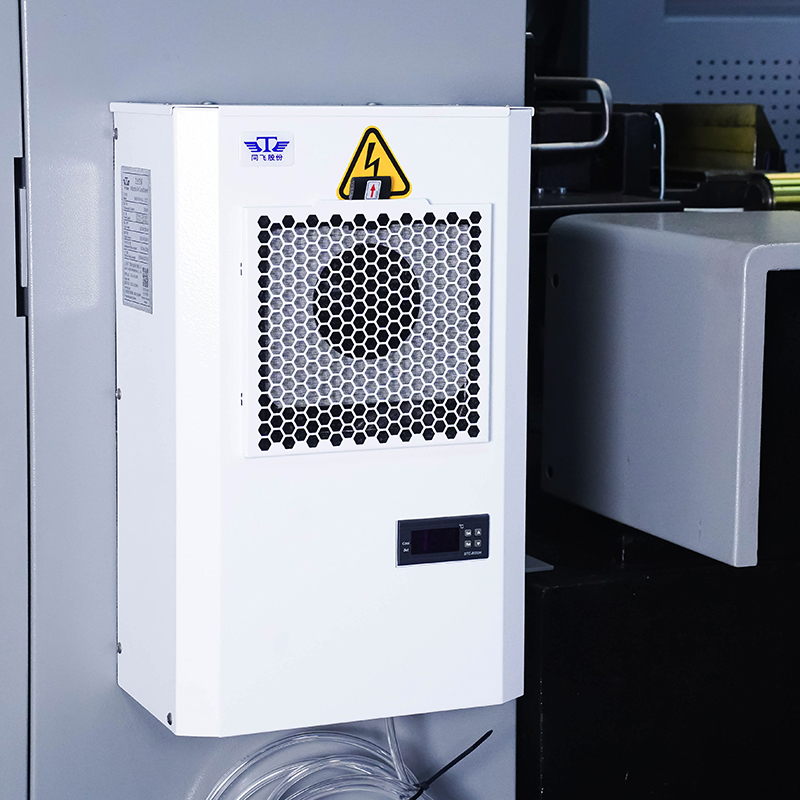

Cabinet air conditioner for control cabinet cooling

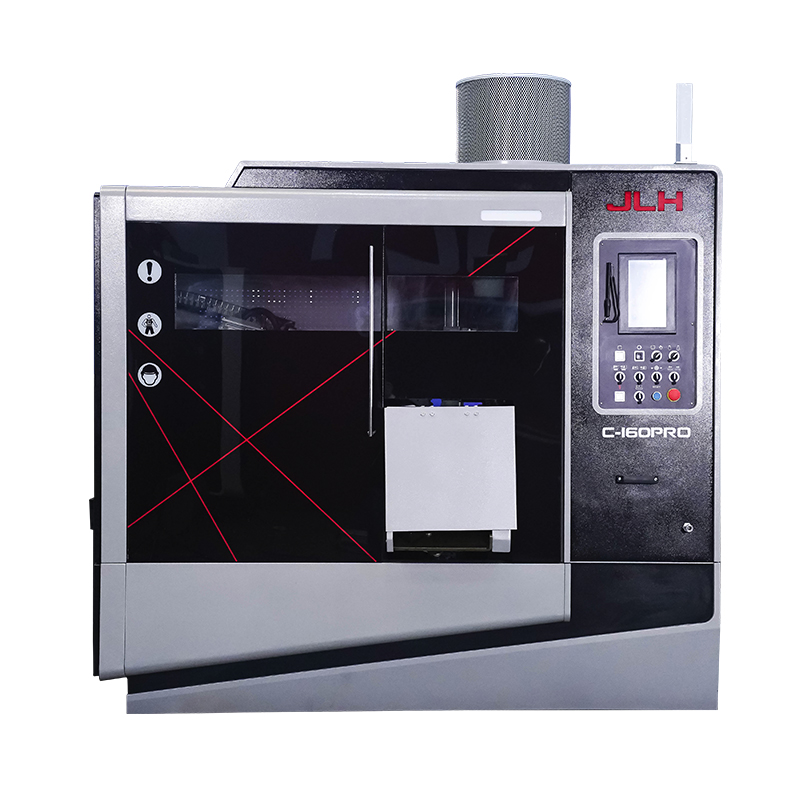

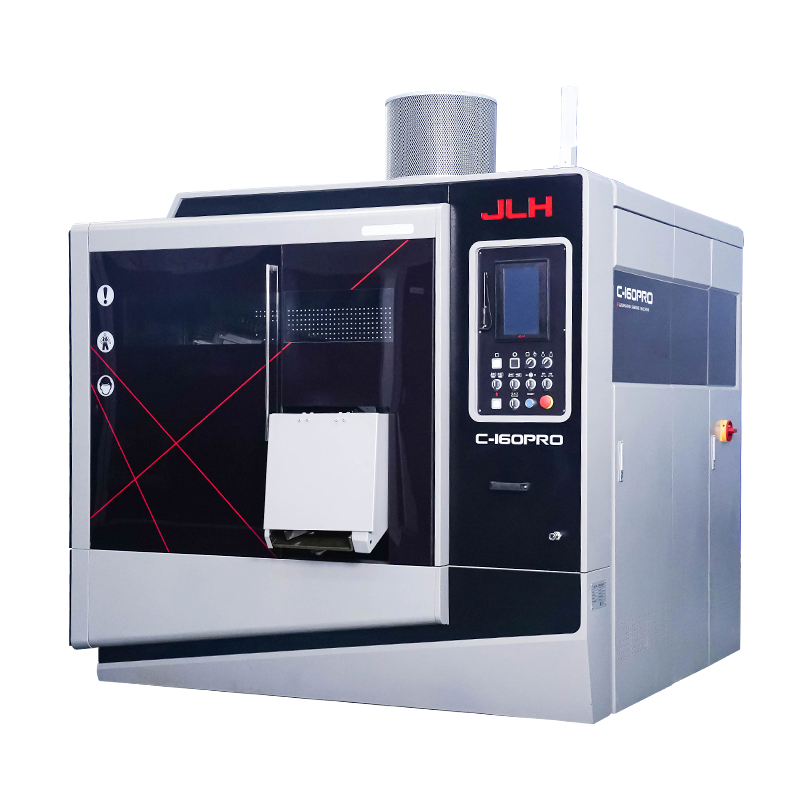

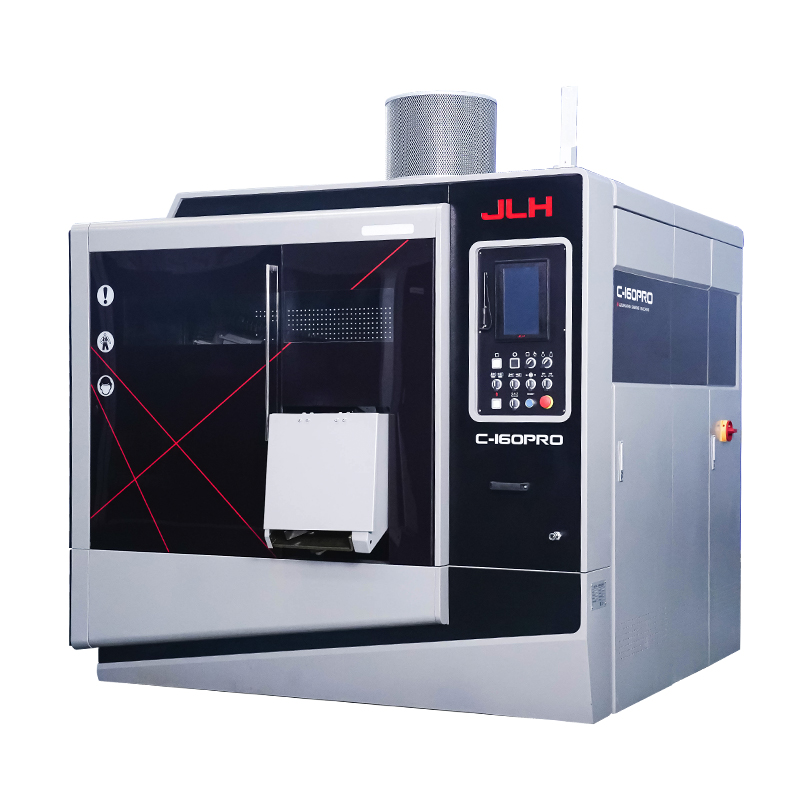

| Specifications | C-160PRO |
Cutting range round | Ø50-Ø160mm Ø1.97-Ø6.3in |
Cutting range square | 50mm-110mm 1.97in-4.3in |
| Shortest length of cut-off piece | 15mm /0.6in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 85mm+a/3.35in+a |
Shortest remnant length individual cut | 30mm+a/1.18in+a |
| Length | 2800mm/110.24in |
| Width incl. chip conveyor | 3678mm/144.8in |
| Height | 2700mm/106.3in |
Material support height | 925mm/36.4in |
| Total weight | ≈4200KG/9259lb |
| Total connected load | 30KW/40hp |

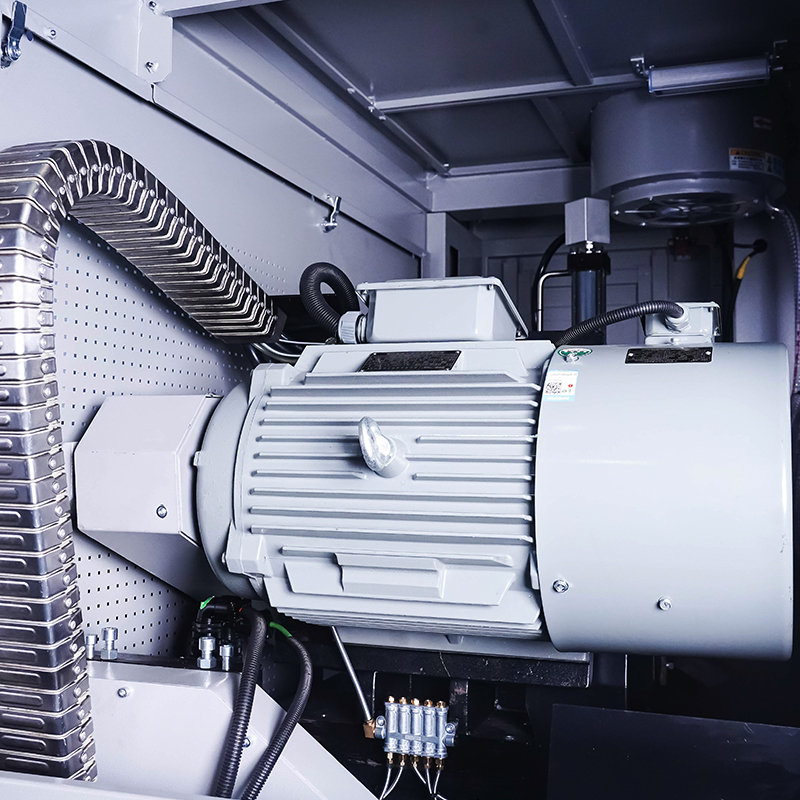

| Power of saw motor | 18.5kw/24.6hp |
| Hydraulic motor | 3.75kw/5hp |
| Cutting speed infinitely variable with | 20-140rpm |
| Saw feed speed | 0.3-30mm/s 0.011-1.2in/s |
| Rapid motion | 150mm/s 5.9in/s |
| Automatic material feed length, single stroke | 800mm 31.49in |
| Automatic material feed length, multiple stroke | 9999mm /393.66in |
| Saw blade diameter | Ø480mm/Ø18.9in |
| Saw blade bores | Ø50/Ø1.96in |
| Saw blade thickness | 2.7mm*2.25mm 0.106in*0.09in |
