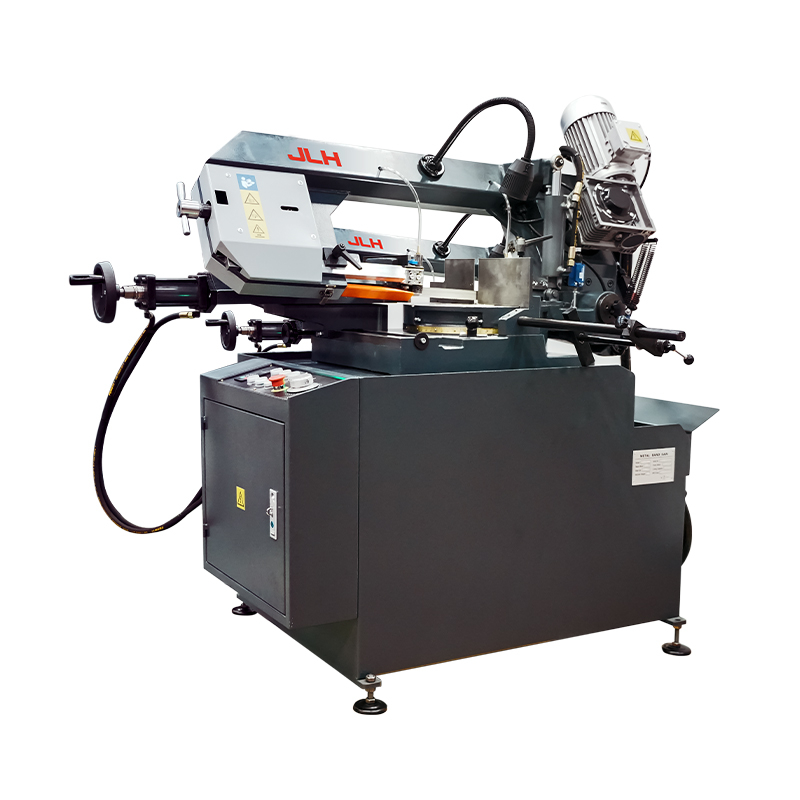

Band saw
Straight and mitre cut
Semi automatic
Structural steels, Stainless steel, Tool steel
90° 310 mm /12.2 inch 45° 210 mm /8.3 inch 60°140 mm /5.5 inch
90°230 mm/9inch 45° 210 mm /8.3 inch 60°140 mm /5.5 inch
| Availability: | |
|---|---|

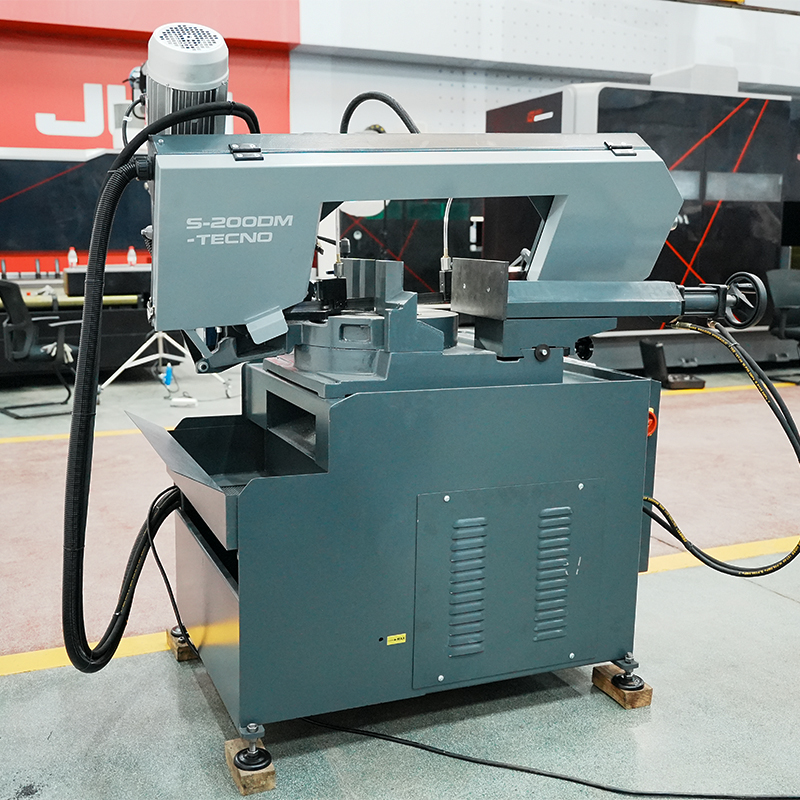

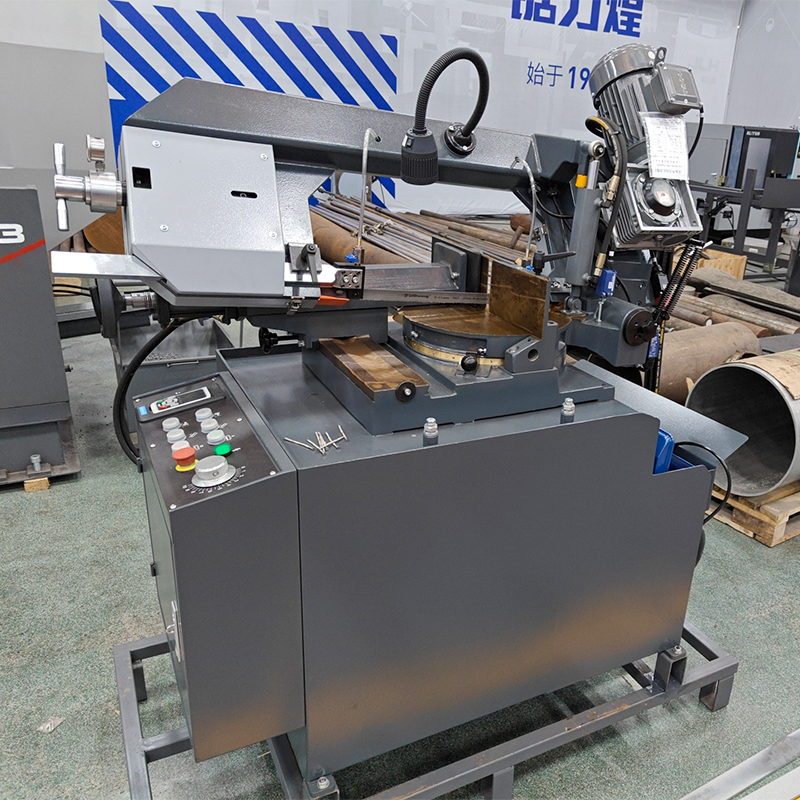

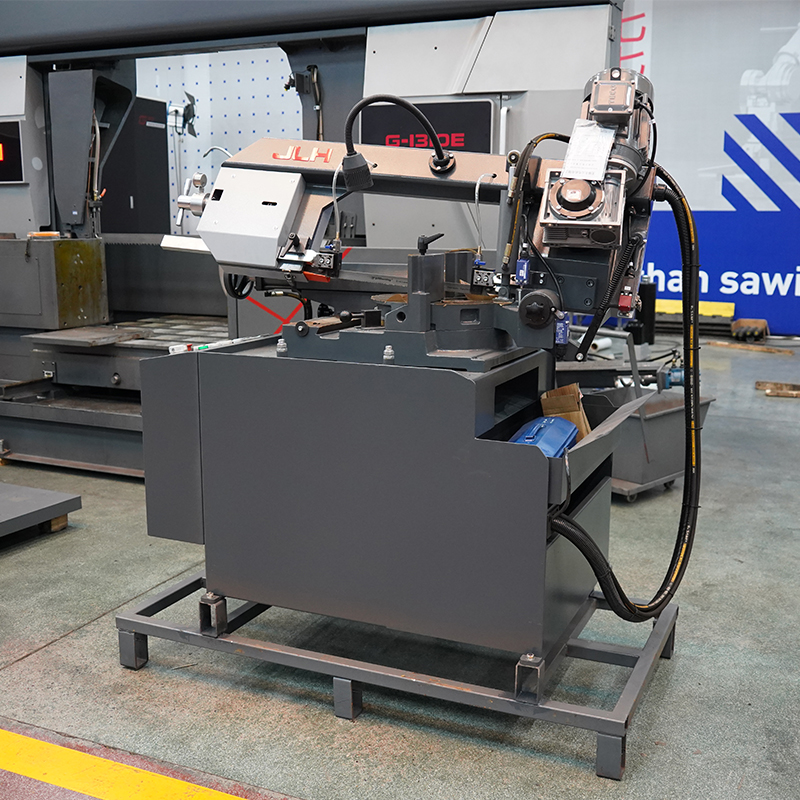

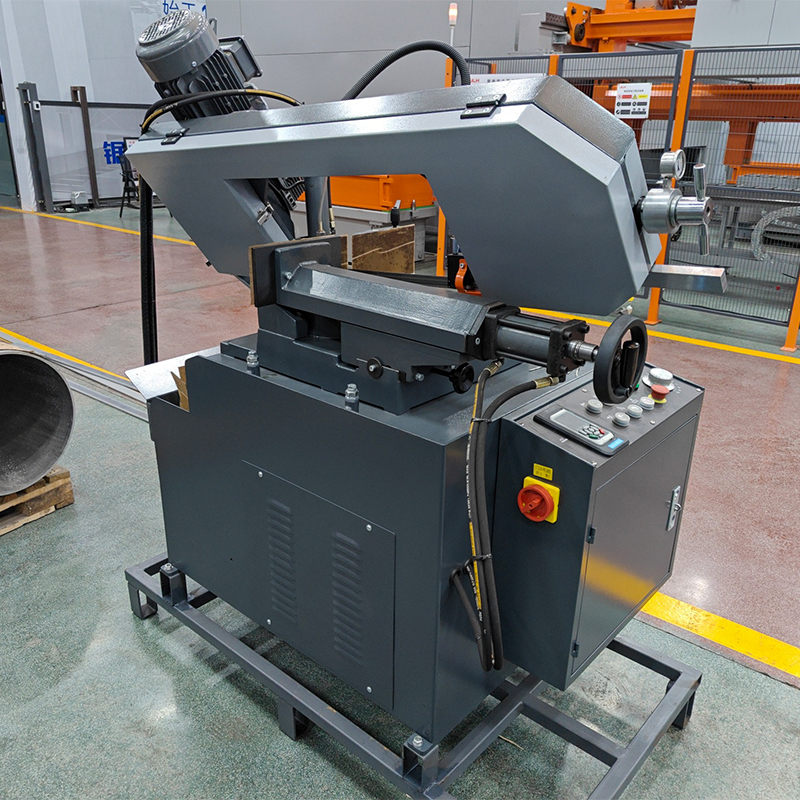

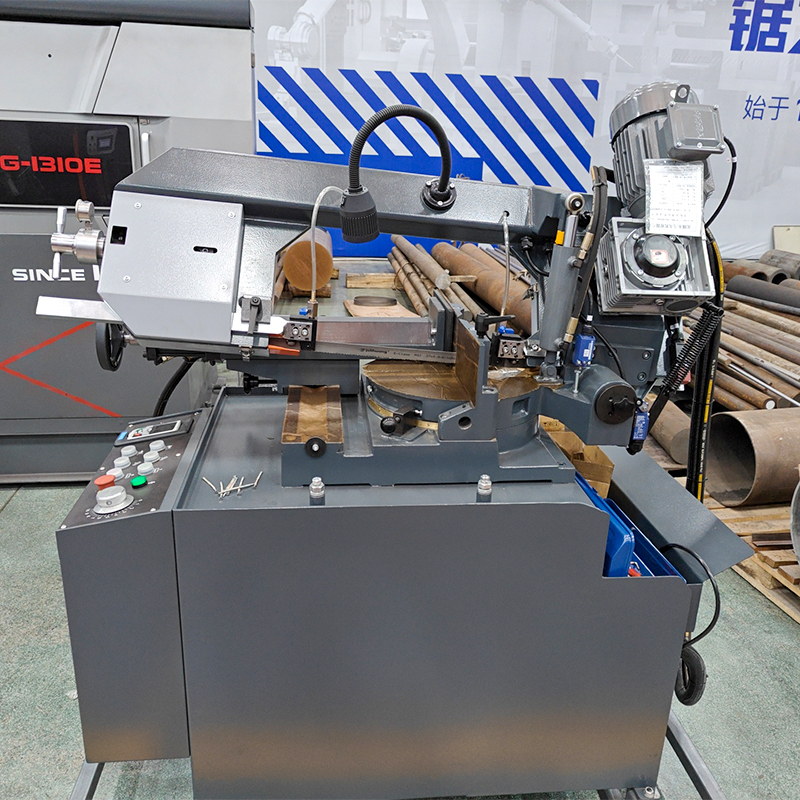

| Specifications | S-230DM-TECNO |
Cutting range 90° round | φ230mm /φ9in |
Cutting range 90° flat (W x H) | 310*230mm 12.2*9in |
| Cutting range 45° round | φ210mm /φ8.3in |
| Cutting range 45° flat (W x H) | 210*210mm 8.3*8.3in |
| Cutting range 60° round | φ140mm /φ5.5in |
| Cutting range 60° flat (W x H) | 140*140mm 5.5*5.5in |
| Smallest size to be cut | 10*10mm 0.4*0.4in |
| Clamping range | 0-310mm/0-12.2in |
| Shortest length of cut-off piece | 30mm/1.2in |
| Shortest remnant length individual cut | 50mm/2in |
| Length | 800mm/31.5in |
| Width incl. chip conveyor | 1600mm/63in |
| Height | 1500mm/59in |
Material support height | 880mm/34.6in |
| Total weight | ≈500KG/1102lb |
| Total connected load | 2.1kw/2.8hp |
| Power of saw motor | 1.5kw/2hp |
| Hydraulic motor | 0.42kw/0.56hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 2910*27*0.9mm 114.6 *1.06*0.03in |
| Functional description | S-230DM-TECNO |
CE standard safety protection | ● |
| Double valve feed control | × |
| Single valve feed control | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
LED working light | ● |
| Laser line projection | ○ |
Blade breakage detection | ● |
| HMI+Buttons | × |
| Inverter | ● |
| Deviation detector | × |
| Automatic Angle sawing setting | × |
| Vise pressure regulator | ○ |
| Motorized chip brush | × |
| Top clamp | × |
| Mist Spray device (1 L) | ○ |
| Hydraulic cooling fan | × |
| Hydraulic feeding | × |
| Servo feeding | × |
| Single Vise Clamping | ● |
| Manual movable Guide arm | ● |
| Tool box (wire brush, levelling pads, spare paint) | × |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
