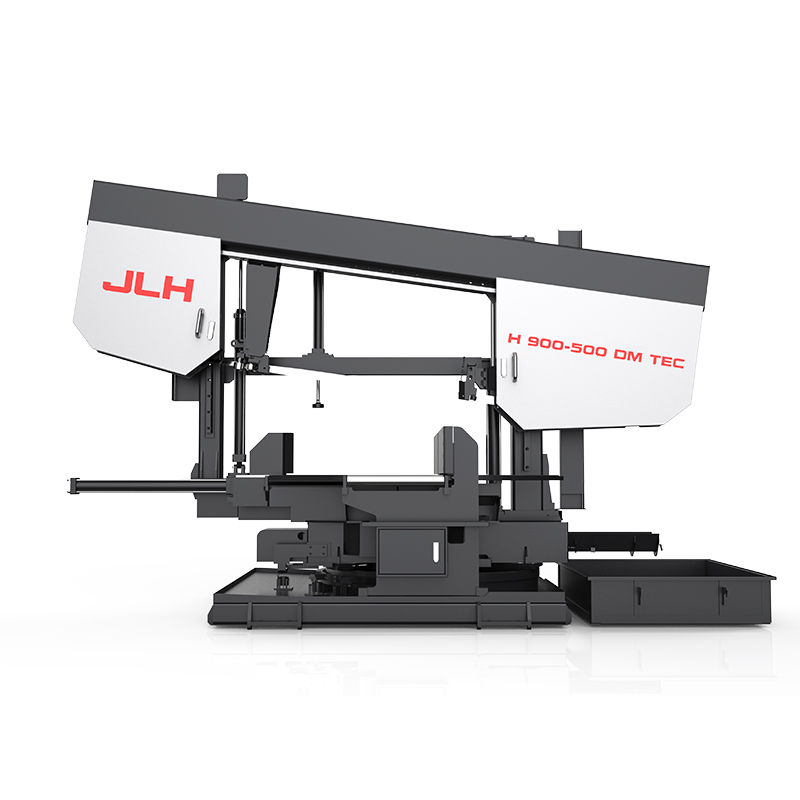

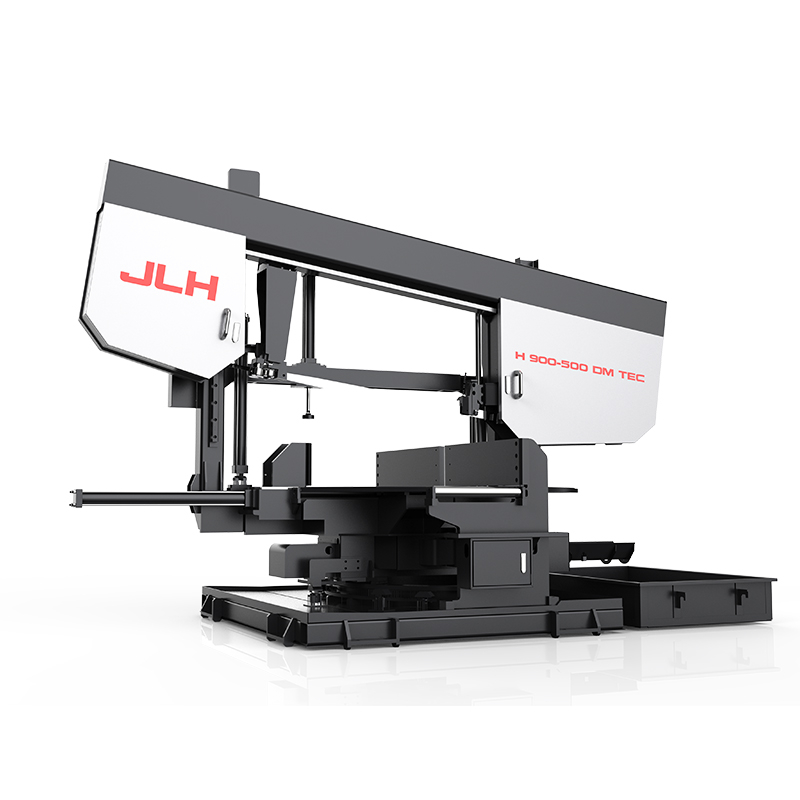

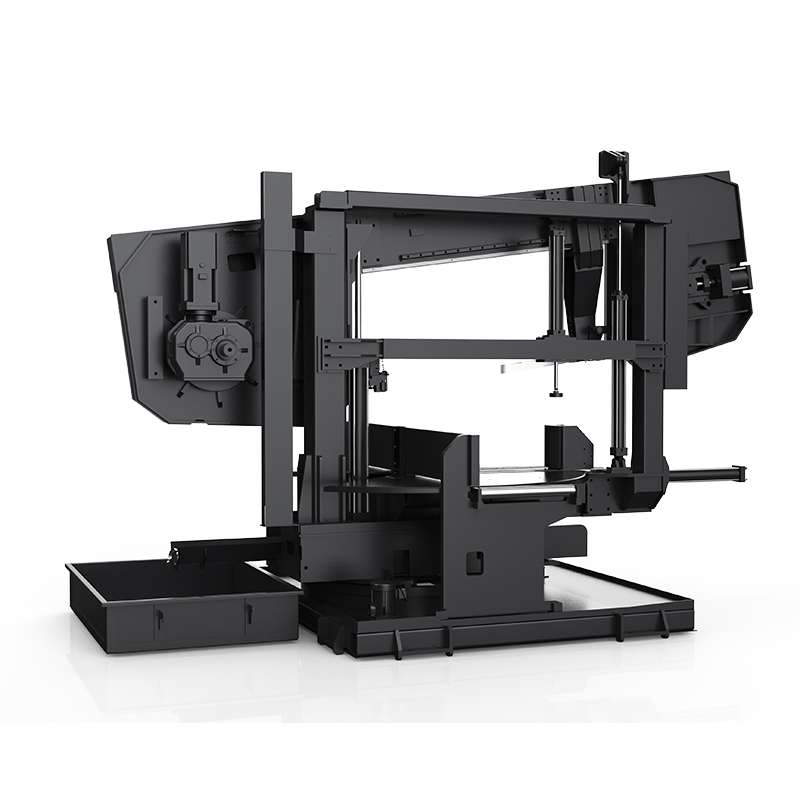

H 900-500 DM TEC
JLH
Band saw
Straight and mitre cut
Semi automatic
Structural steels, Stainless steel, Tool steel
90° 900 mm /35.4 inch 45° 580 mm /22.8 inch 60° 370 mm /14.6 inch
90° 500 mm /19.7 inch 45° 500 mm /19.7 inch 60° 500 mm /19.7 inch
| Availability: | |
|---|---|
| Specifications | H 900-500 DM TEC |
Cutting range 90° round | Ø500 mm（Ø19.7 in） |
Cutting range 90° flat (W x H) | 900 x 500 mm（35.4 x 19.7 in） |
| Cutting range 45° round | Ø500 mm（Ø19.7 in） |
| Cutting range 45° flat (W x H) | 580 x 500 mm（22.8 x 19.7 in） |
| Cutting range 60° round | Ø370mm（Ø14.6in） |
| Cutting range 60° flat (W x H) | 370 x 500 mm（14.6 x 19.7 in） |
| Clamping range | 150-900 mm（5.9-35.4 in） |
Cutting speed infinitely variable wit | 20-100 m/min（65.6-328 ft/min） |
Power of saw motor | 7.5 kW（10 hp） |
Hydraulic moto | 2.2 kW（3 hp） |
Dimensions of saw blad | 8300 x 54 x 1.6 mm（326.77 x 2.13 x 0.06in） |
Material support height | ≈900 mm（≈35.4in） |
| Total weight | ≈5750kg（≈12676lb） |
Blade Tension | Hydraulic |
Vise Clamping Type | Hydraulic（full Stroke） |
Cooling Type | Oil Mist |
| Functional description | H 900-500 DM TEC |
Bi-direction angle cutting, -45° ~ 90° ~ 60° | ● |
Hydraulic blade tension | ● |
PLC control for all electric and hydraulic functions | ● |
Infinitely variable blade speed control by inverter | ● |
Vertical clamping device | ● |
Full stroke vise clamping system | ● |
Power guide arm moving and hydraulic lock | ● |
Power angle setting with LED display | ● |

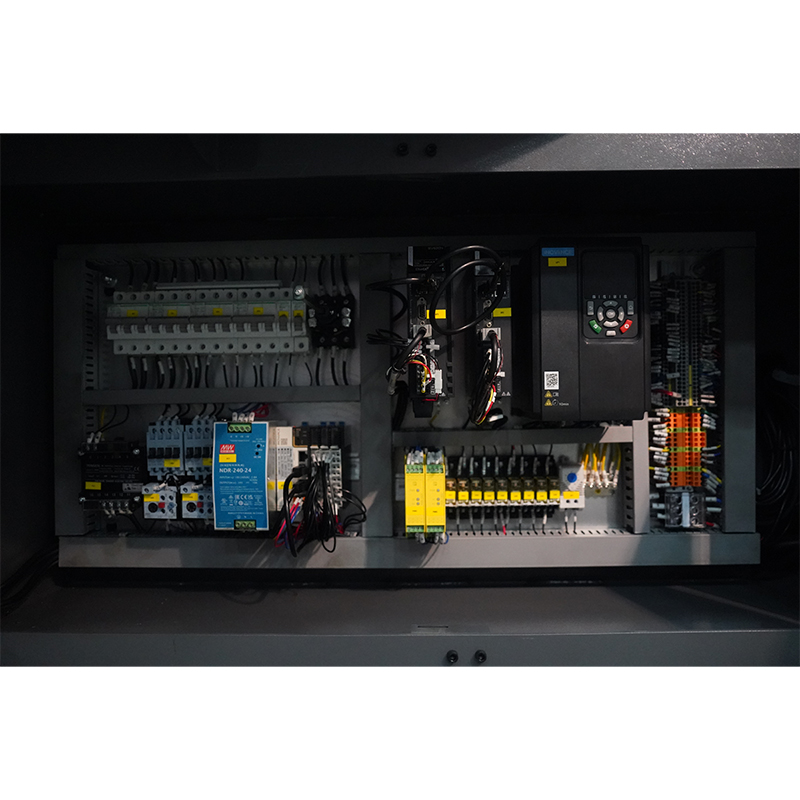

Independent electric cabinet and control panel | ● |
Roller bearing carbide blade guide system with Hydraulic clamped | ● |
| Deviation detector | ● |
Idler wheel motion detector with blade stalling and breakage shut-off | ● |
Projection light. (Laser light) | ● |
Automatic chip conveyor | ● |
Cutting lubrication by oil mist | ● |
Variable vise pressure | ● |
One M42 bi-metal saw blade | ● |
| Dead roller table, 3 m long | ○ |
| Power roller table, 3m long | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
