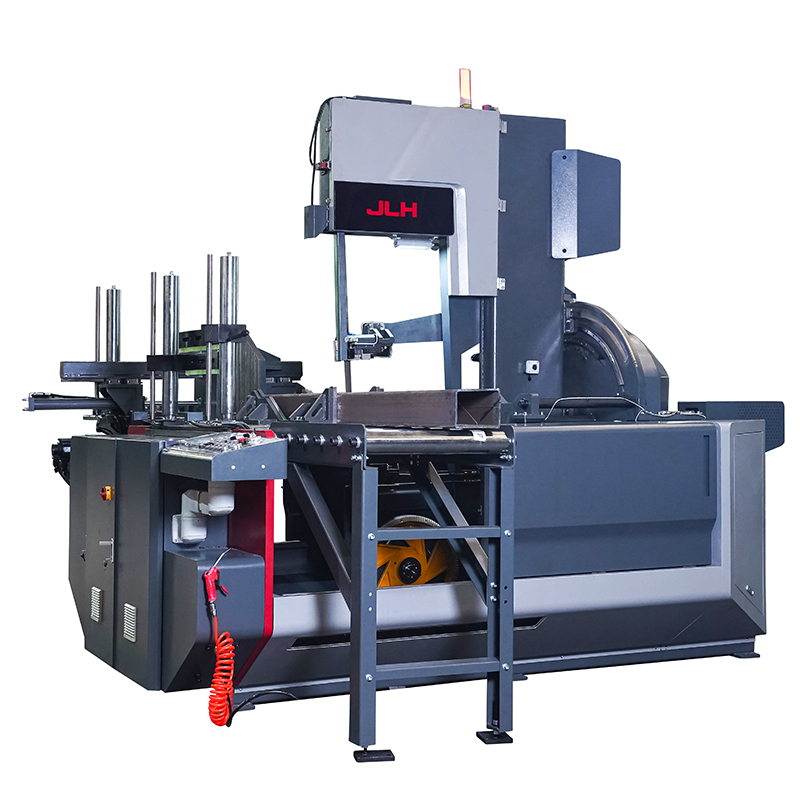

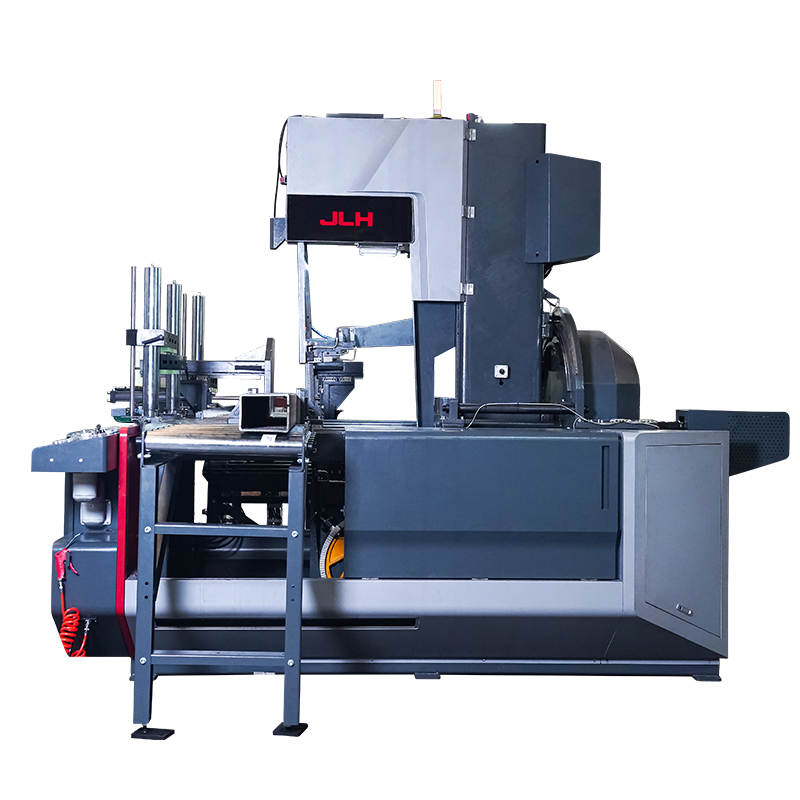

V-20DM PRO
JLH
Band saw
Straight and mitre cut
Automatic
Structural steels, Stainless steel, Tool steel
90° 500 mm / 20 inch 45° 500 mm / 20 inch 60° 500 mm / 20 inch
90° 730 mm / 28.7 inch 45° 485 mm / 19 inch 60° 300 mm / 11.8 inch
| Availability: | |
|---|---|
V-20 DM PRO | |||
Cutting range | Cutting Range 90° Round | Ø500mm | Ø20in |
Cutting Range 90° Flat (W x H) | 500*730mm | 20*28.7in | |
Cutting Range 45° Round | Ø485mm | Ø19in | |
Cutting Range 45° Flat (W x H) | 500*485mm | 20*19in | |
Cutting Range 60° Round | Ø300mm | 11.8in | |
Cutting Range 60° Flat (W x H) | 500*300mm | 20*11.8in | |
Smallest Size To Be Cut | 10*10mm | 0.39*0.39in | |
Clamping Range | 10-500mm | 0.39-20in | |
Shortest Length Of Cut-Off Piece | 700mm | 27.6in | |
Shortest Remnant Length Individual Cut | 700mm | 27.6in | |
Dimensions and weight | Length | 4580mm | 180.3in |
Width incl. Chip Conveyor | 3630mm | 142.9in | |
Height | 2900mm | 114.2in | |
Material Support Height | 1220mm | 48in | |
Total Weight | ≈4500kg | ≈9921lb | |
Performance characteristics | Total Connected Load | 9kw | 12hp |
Power Of Saw Motor | 5kw | 6.7hp | |
Hydraulic Motor | 1.5kw | 2hp | |
Cutting Speed Infinitely Variable With | 20-110m/min | 65.6-360.9ft/min | |
Saw Feed Speed | 1 - 300 mm/min | 0.04-11.8In/min | |
Rapid Motion | 2000mm/min | 78.8in/min | |
Automatic Material Feed Length, Single Stroke | 1250mm | 49.2in | |
Automatic Material Feed Length, Multiple Stroke | 9999mm | 393.66in | |
Dimensions Of Saw Blade | 5760*34*1.1mm | 226.77*1.34*0.043in | |
Category of configuration | Functional description | V-20 DM PRO |
EXTERIOR PROTECTION | CE Standard Safety Protection | ● |
DOWNFEED SYSTEM | Servo Feeding | ● |
ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
LED Working Light | ● | |
Laser Line Projection | ● | |
Blade Breakage Detection | ● | |
Sawing Depth Control | ● | |

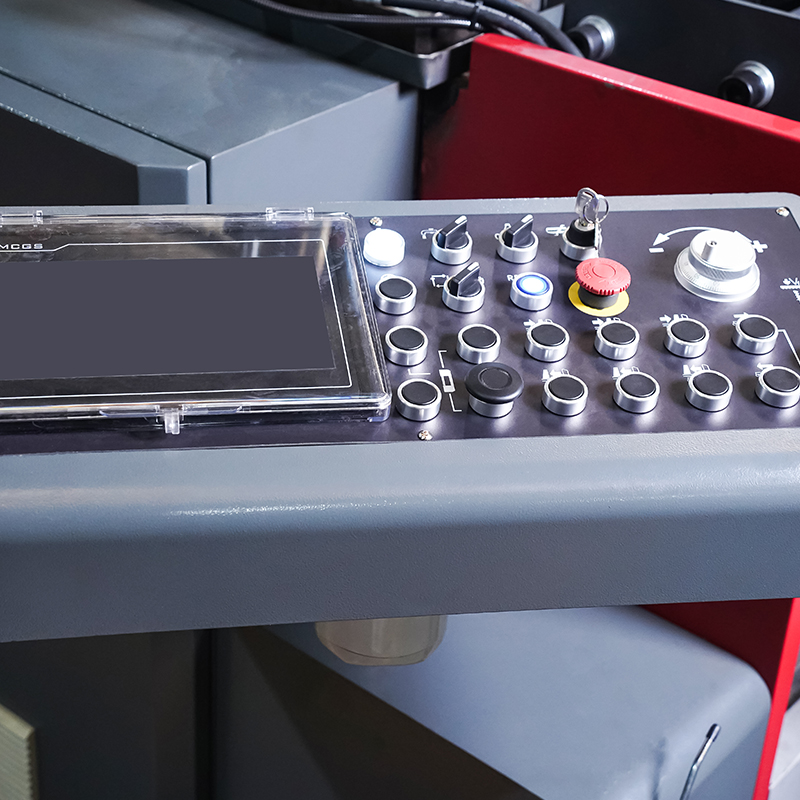

HMI+Buttons | ● | |
Inverter | ● | |
Automatic Angle Sawing Setting (Servo) | ● | |
HYDRAULICS | Hydraulic Blade Tension | ● |
Hydraulic Blade Guide Clamping | ● | |
Hydraulic Cooling Fan | ● | |
Auto Lubrication Device | ● | |
Simple Roller Table | ○ | |
MATERIAL FEEDING SYSTEM | Servo Feed | ● |
Other | Split Vise clamping | ● |
Hydraulic Movable Guide Arm | ● | |
Tool box (wire brush, levelling pads, spare paint) | ● | |
One piece Saw blade | ● | |
Transport underframe for containers | ○ | |
● : Standard | ○ : Optional | × : Non-optional |
