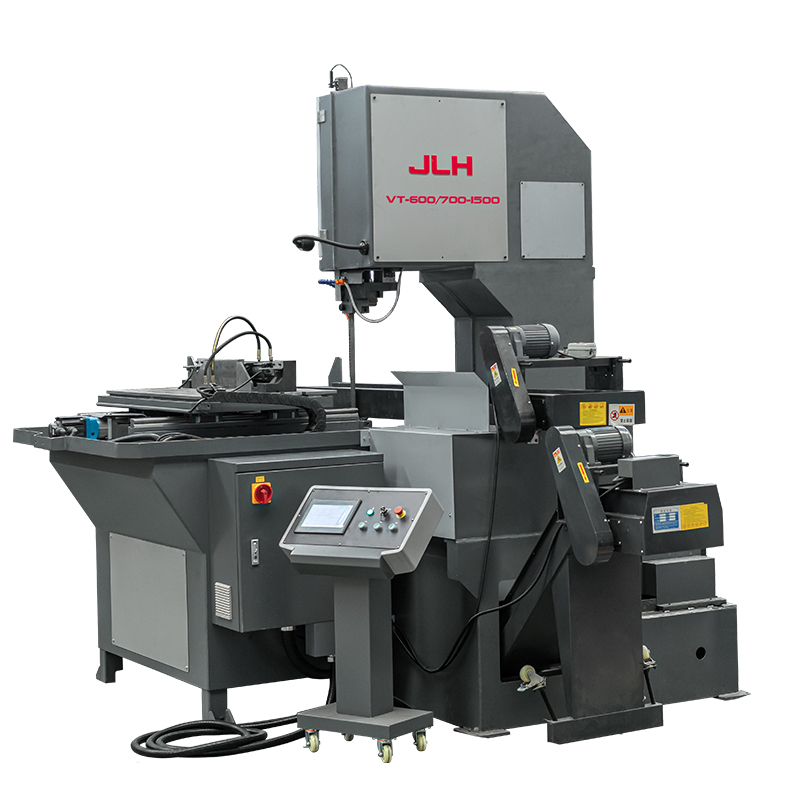

VT-600/700-1500

Name: VT-600/700-1500
Brand: JLH
Rating: 5.0 (93 reviews)

Show Details

Specifications

Specifications	VT-600/700-1500
Max. cutting height	600mm (23.6in)
Max. cutting length	700mm (27.5in)
Cutting depth	1500mm (59.1in)
Supporting surface of front table - Length	1500mm (59.1in)
Supporting surface of front table - Width	650mm (25.6in)
Supporting surface of back table - Length	1500mm (59.1in)
Supporting surface of backfront table - Width	650mm (25.6in)
Max. table load	800kg (1760lb)
Length	4700mm (185in)
Width incl. chip conveyor	2500mm (98.4in)
Height	3000mm (118.1in)
Material support height	1400mm (55.1in)
Total weight	≈7000kg (15432lb)
Total connected load	12kW (16hp)
Power of saw motor	7.5kW (10hp)
Hydraulic motor	0.75kW (1hp)
Cutting speed infinitely variable with	15-65m/min (0.59-2.56in/min)
Saw feed speed	800-1500m/min (31.5- 59in/min)
Rapid motion	1500mm (59in)
Dimensions of saw blade	41 x 1.3mm (1.61 x 0.05in)
