Designed exclusively for demanding manufacturing environments, this CNC automatic sawing machine delivers unrivaled rigidity, cutting accuracy, and production efficiency, making it the preferred choice for heavy metal fabrication operations requiring consistent performance with even the toughest alloys. Built to meet CE safety standards, this fully enclosed heavy duty metal cutting saw combines advanced servo control, a high-power permanent magnet drive, and automated material handling to minimize downtime, reduce material waste, and maximize output for industrial manufacturing facilities.

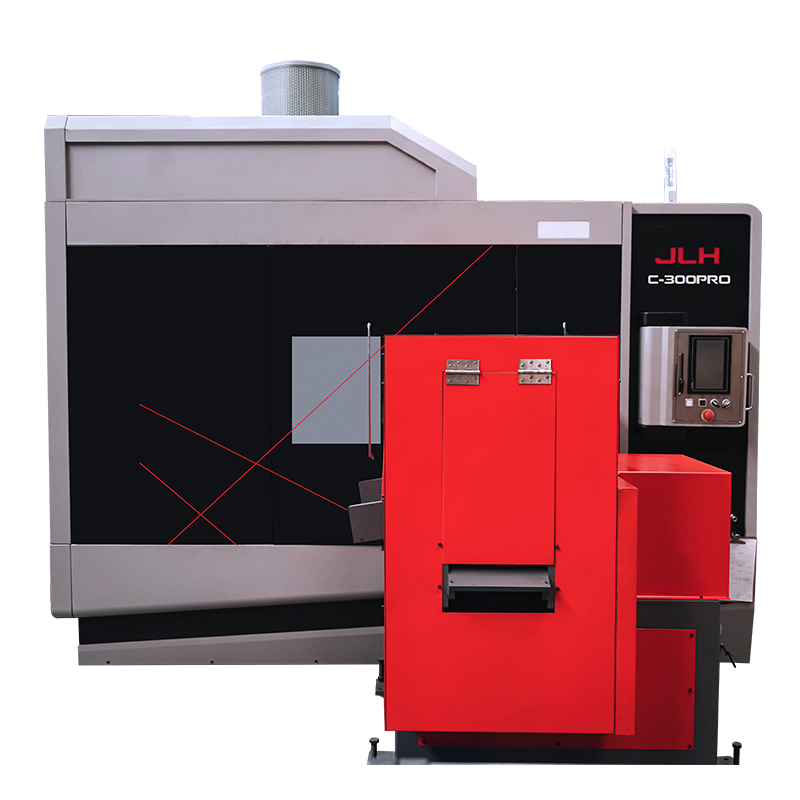

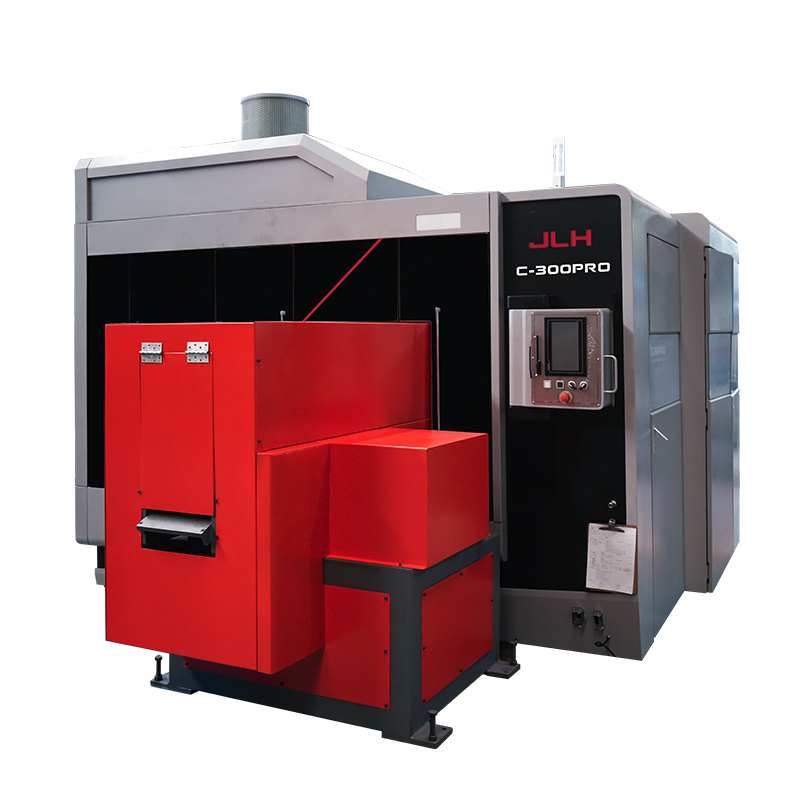

At the heart of the C-300PRO CNC Circular Saw Machine is a 45kW permanent magnet main drive motor, paired with an infinitely variable cutting speed range of 20-80r/min, enabling stable cutting of solid round bars from Ø120mm to Ø300mm and square profiles up to 120mm-250mm. This robust power delivery ensures smooth cutting of high-strength steels, reducing tool wear and extending saw blade service life for long-term cost savings.
This industrial metal fabrication saw features a 0.8M servo feed system, with 1000mm single-stroke and 9999mm multi-stroke feed capacity for fully automated batch processing. The 150mm/s rapid motion speed cuts non-cutting cycle time drastically, while a minimum 15mm cut-off length delivers exceptional flexibility for diverse production needs.
Fully compliant with CE electrical and safety standards, the machine features a fully enclosed safety guard, integrated LED working lights, a cabinet air conditioner, and a 2L mist spray system for optimal cutting conditions. A cutting pipe blast device and dust collection system ensure a clean, safe working environment for industrial operators.
Weighing approximately 11500kg, the heavy-duty cast iron frame delivers maximum rigidity and vibration damping, ensuring long-term precision. The system includes an automatic spiral chip conveyor, motorized chip brush, auto lubrication device, and hydraulic cooling fan, reducing manual maintenance and maximizing uptime.
All C-300PRO CNC Circular Saw Machine units come standard with: CE-compliant fully enclosed safety protection, 45-degree servo feed system, CE-certified electrical system, permanent magnet main drive motor, HMI + button control, inverter, 2L mist spray system, dust collection device, cutting pipe blast device, cabinet air conditioner, LED working light, automatic spiral chip conveyor, vise pressure regulator, motorized chip brush, top clamp, hydraulic cooling fan, auto lubrication device, roller type work table, 0.8M servo feed, 1.5M power output material table, 5.5m belt infeed magazine for round materials, 70L sawdust collection cart, standard tool kit, and 1× circular saw blade.
Customize your machine with optional upgrades including: UL electrical safety certification, JLH-EHA system, Saw Master system, 2M servo power output material table, and container transport underframe.
The C-300PRO CNC Circular Saw Machine is purpose-built for heavy industrial manufacturing operations, including: heavy steel structure fabrication, wind energy equipment manufacturing, aerospace forging processing, heavy machinery production, large-diameter metal bar distribution and processing, shipbuilding component manufacturing, and high-strength alloy processing for mining equipment.
This heavy duty metal cutting saw can cut solid round bars from Ø120mm to Ø300mm, and square profiles up to 120mm-250mm, making it ideal for large-diameter metal processing.
Yes. It features a servo-controlled feeding system with a multi-stroke feed length of up to 9999mm, enabling fully unattended batch cutting for high-volume production.
The machine is built to meet CE safety and electrical standards, with a fully enclosed safety guard and multiple safety features to protect operators in industrial environments.
Ready to upgrade your heavy metal cutting operations with industry-leading precision and efficiency? Contact our technical sales team today to request a customized quote for the C-300PRO CNC Circular Saw Machine, schedule a virtual demonstration, or discuss your specific cutting requirements. We offer tailored industrial solutions to help you maximize production output, reduce material waste, and lower long-term operational costs.
